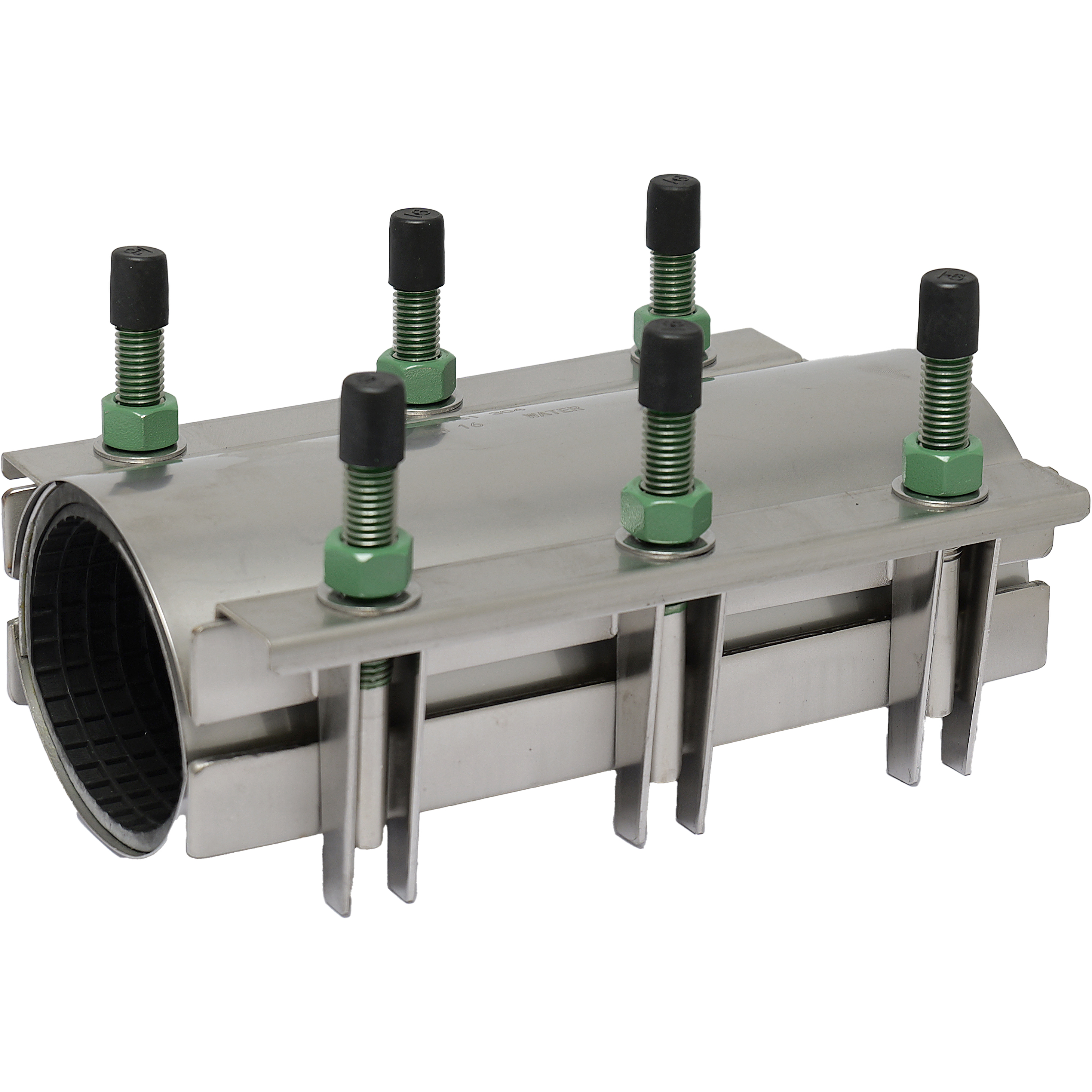

REPAIR CLAMPS DOUBLE BAND
AISI 304 stanless steel and EPDM gasket - Length 300 mm., 3 bolts M 16 / Length 400 mm., 4 bolts M 16.
Contact us
We will contact you as soon as possible
Specifications
| Reference | Length (mm) | Tolerance |
|---|---|---|
| VF823108 | 300 | 108 - 128 |
| VF823135 | 300 | 135 - 155 |
| VF823159 | 300 | 159 - 180 |
| VF823190 | 300 | 190 - 210 |
| VF823210 | 300 | 210 - 230 |
| VF823225 | 300 | 225 - 246 |
| VF823240 | 300 | 240 - 260 |
| VF823269 | 300 | 269 - 289 |
| VF823282 | 300 | 282 - 302 |
| VF823295 | 300 | 295 - 315 |
| VF824322 | 400 | 322 - 344 |
| VF824347 | 400 | 347 - 367 |
| VF824365 | 400 | 365 - 385 |
| VF824395 | 400 | 395 - 415 |
| VF824420 | 400 | 420 - 440 |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
| Document | Type | Language | File size |
|---|---|---|---|
| FT COLLARI DI RIPARAZIONE A DUE PARTI.pdf | Data Sheet | IT | 1,50 MB |
| FT ABRAÇADEIRAS DE REPARAÇÃO DUAS BANDAS.pdf | Data Sheet | PT | 1,50 MB |
| FT COLLIERS DE RÉPARATION DEUX BANDES.pdf | Data Sheet | FR | 1,50 MB |
| DS REPAIR CLAMPS DOUBLE BAND.pdf | Data Sheet | EN | 1,50 MB |
| FT ABRAZADERA REPARACIÓN DOS BANDAS.pdf | Data Sheet | ES | 1,50 MB |
| IMAGE HQ WS-VF82.jpg | HQ Image | 2,20 MB |
