PRESS FITTING

PRESS FITTING

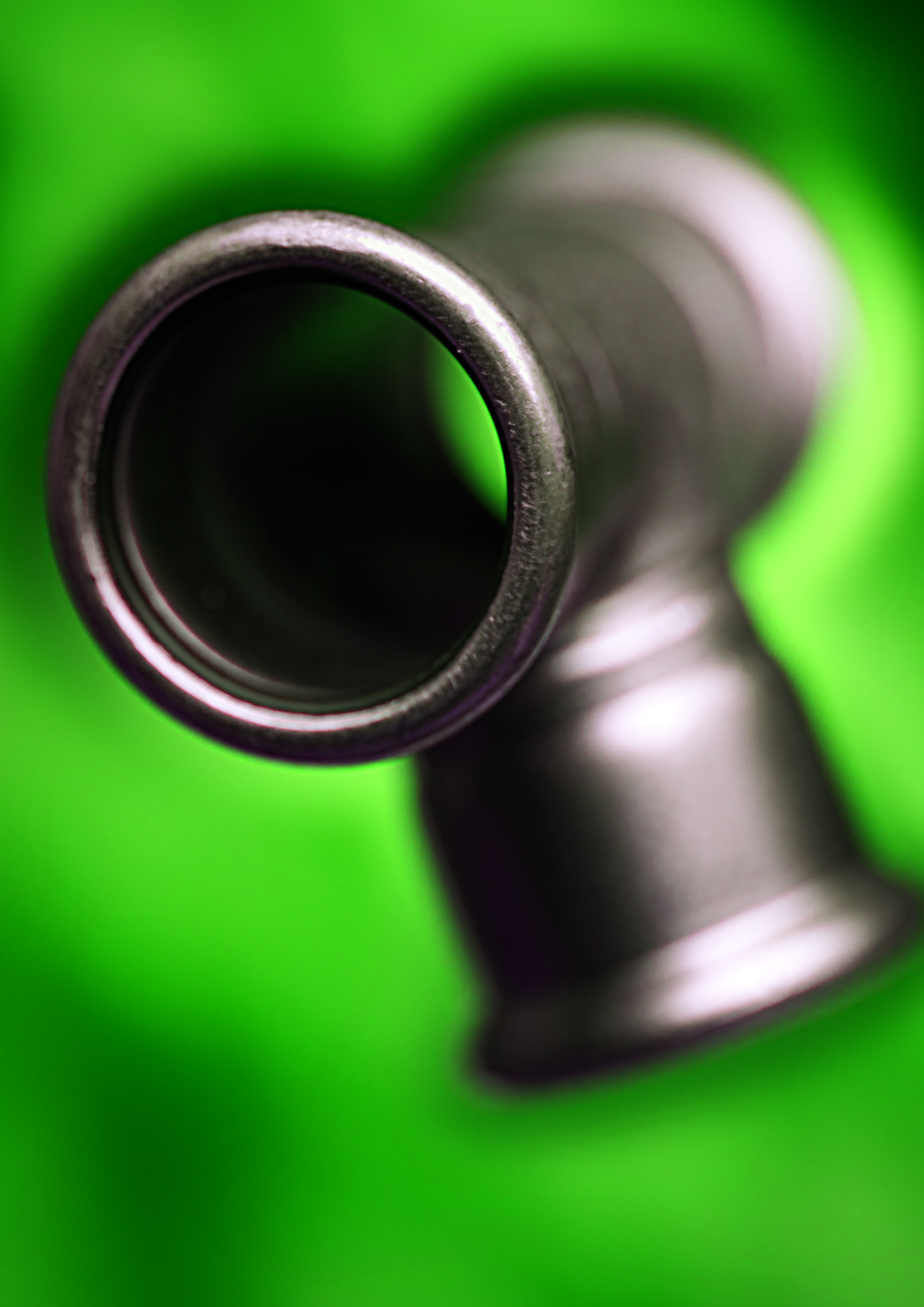

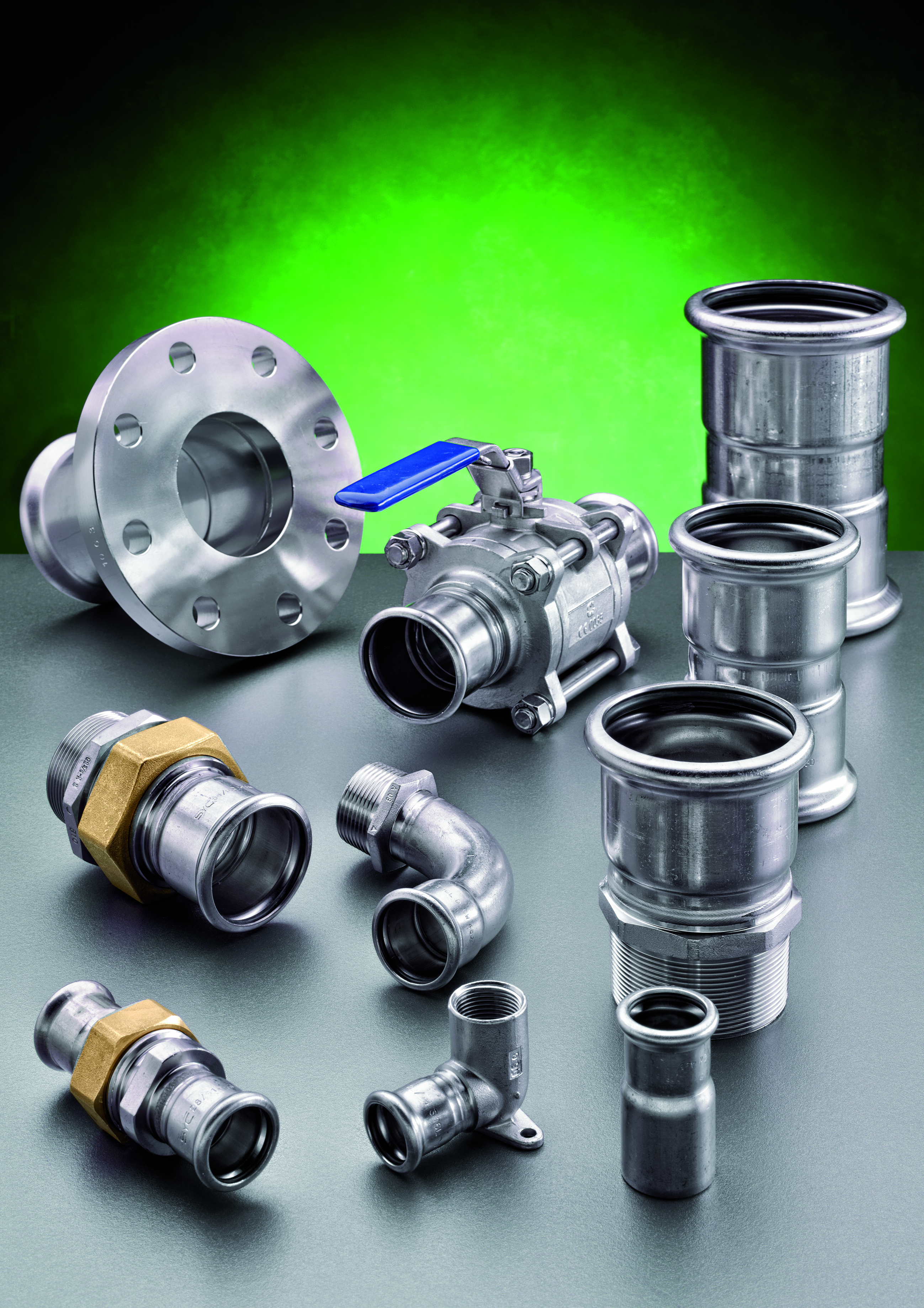

Press Fitting in an easily and quickly assembled system. The most frecuent applications are in civil, industry and naval sectors. The advantages of Press Fitting system are: reliability and safety, absence of the risk of fire during installation, high resistance to corrosion. The diameters available in 316 Stainless Steel and Carbon Steel are from 15 mm. to 108 mm.

Preguntas y respuestas

ATUSA PRESS Fittings are manufactured with the "M" called profile.

The Stainless Steel PRESS Fittings of ATUSA are manufacturated according to EN 10312 and DVGW GW-541 (Measurements of dimensions), according to EN 10305-2 (Material) for Carbon Steel PRESS Fittings.

The Stainless Steel PRESS Pipe of ATUSA are manufacturated according to EN 10312 (measurements of dimensions), according to EN 10305-2 (material) for Carbon Steel PRESS Fittings. Stainless Steel Pipe range 2 it's according with the standard DVGW-541.

The sealing gaskets on the fittings are EPDM. Can be supplied FPM Gaskets (ISO 1629) green color and FPM Gaskets (ISO 1629) red color on demand.

Stainless Steel range: Drinking Water,Heating, Sun (FPM green), Diesel (FPM red), rainwater. Carbon Steel range: Heating (closed circuit and galvanized pipe externally), Sun (FPM green), Diesel (FPM red).

The carbon steel press system is recommended for CLOSED heating systems. The pipe can be made of externally zinc-plated carbon steel, never internally. Maximum installation pressure and temperature: 16 bar and 120°C. Oxygen must be avoided in the cir

Downloads

Note: due to the constant development of our products, the supplied data can be altered without prior notice.

Document Type Language File size
CATÁLOGO PRESS FITTING 2023.pdf Catalogue ES 784,69 KB
PREILISTE PRESS FITTINGS 2022.pdf Catalogue DE 4,93 MB
CATALOGUE RACCORDS À SERTIR 2022.pdf Catalogue FR 806,93 KB
LISTINO PRESS FITTING 2022.pdf Catalogue IT 4,91 MB
2024 PRESS FITTING CATALOGUE.pdf Catalogue EN 3,88 MB
CATÁLOGO PRESS FITTING 2022.pdf Catalogue PT 806,00 KB
IMAGE DETAIL.jpg HQ Image 8,55 MB
IMAGE STILL LIFE.jpg HQ Image 10,66 MB
