Our Slotted System family, which includes Slotted Couplings, Slotted Fittings and Slotted Valves, is suitable for conveying fluids such as water, oil-free air and a wide range of chemicals between -34 and 110°C. It is certified for fire protection installations according to FM Approvals 1920, UL 213 and VdS 2100-06 / 2344.

COUPLINGS

COUPLINGS

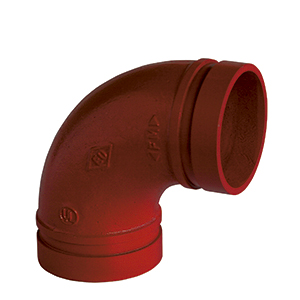

GROOVED FITTINGS

GROOVED FITTINGS

VALVES

VALVES

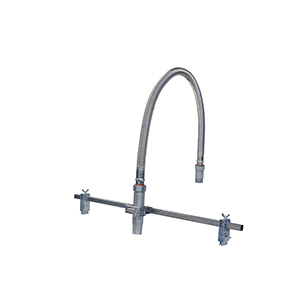

FLEXIBLE CONNECTORS

FLEXIBLE CONNECTORS

Preguntas y respuestas

Grooved System accessories are produced in ductile iron according to ASTM A-536 grade 65-45-12.

Sealing gaskets are EPDM grade E according to ASTM D-2000.

Fire Protection Systems, Fluid transport such water, Oil free air, a broad range of chemical products, Industry, Irrigation systems.
