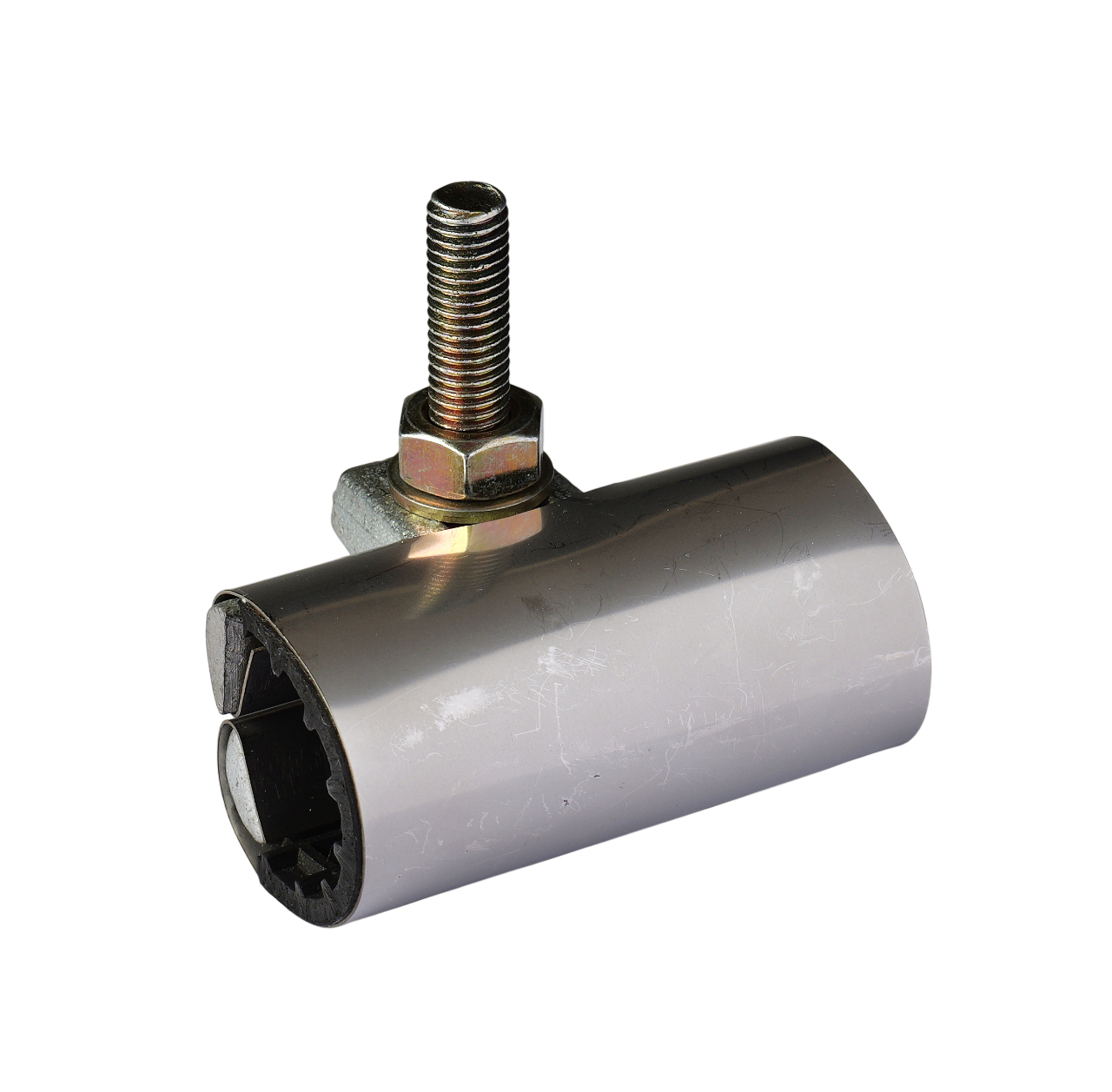

MINI SINGLE BAND REPAIR CLAMP
AISI 304 stainless steel and EPDM gasket - Length 75 mm., 1 bolts M 10.
Contact us
We will contact you as soon as possible
Specifications
| Reference | Tolerance |
|---|---|
| VF817021 | 21 - 25 |
| VF817026 | 26 - 30 |
| VF817029 | 29 - 33 |
| VF817033 | 33 - 37 |
| VF817038 | 38 - 42 |
| VF817042 | 42 - 45 |
| VF817044 | 44 - 48 |
| VF817048 | 48 - 51 |
| VF817050 | 50 - 54 |
| VF817055 | 55 - 60 |
| VF817060 | 60 - 64 |
| VF817071 | 71 - 76 |
| VF817087 | 87 - 93 |
| VF817112 | 112 - 118 |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
| Document | Type | Language | File size |
|---|---|---|---|
| DS MINI REPAIR CLAMP.pdf | Data Sheet | EN | 895,02 KB |
| FT ABRAZADERA DE REPARACIÓN MINI.pdf | Data Sheet | ES | 895,02 KB |
| FT ABRAÇADEIRA DE REPARAÇÃO MINI.pdf | Data Sheet | PT | 896,22 KB |
| FT COLLARI DI RIPARAZIONE MINI.pdf | Data Sheet | IT | 894,46 KB |
| Data Sheet | FR | 895,02 KB | |
| IMAGE HQ WS-VF817.jpg | HQ Image | 351,08 KB |
