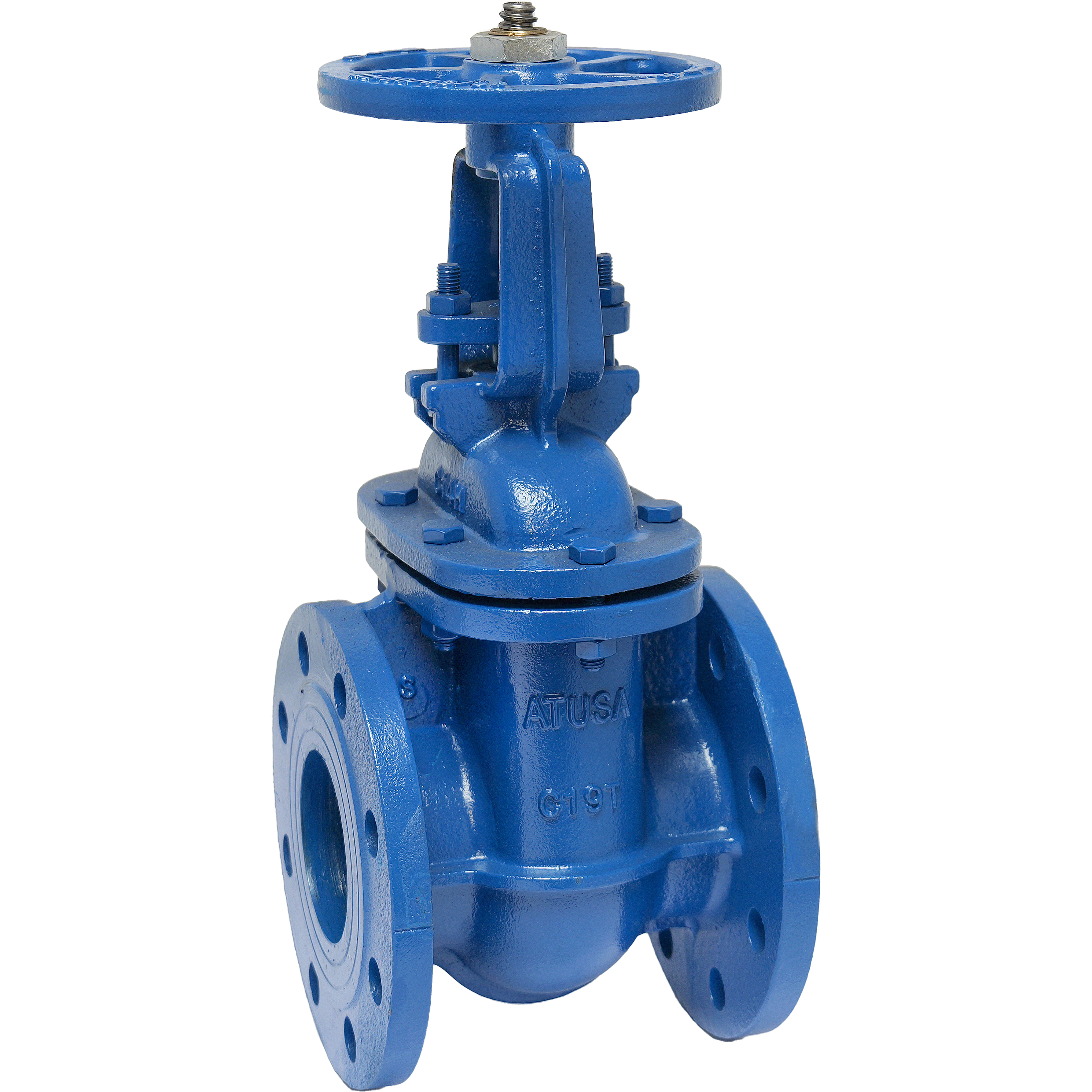

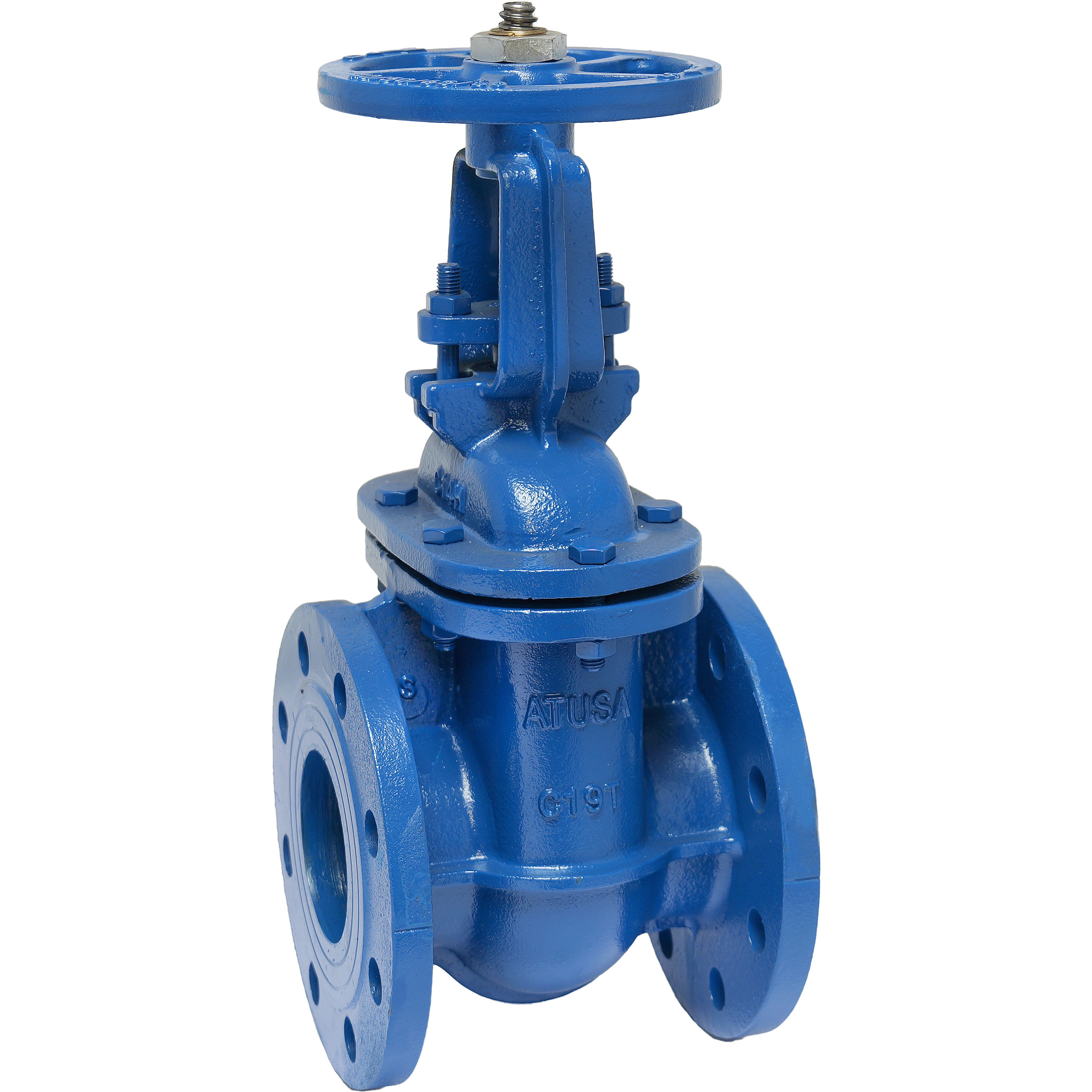

REF. 504 - GATE VALVE METAL SEAT RISING STEM - FLANGED
Contact us
We will contact you as soon as possible
Specifications
| Reference | DN 1 | PN |
|---|---|---|
| VF504040 | 40 | 10/16 |
| VF504050 | 50 | 10/16 |
| VF504065 | 65 | 10/16 |
| VF504080 | 80 | 10/16 |
| VF504100 | 100 | 10/16 |
| VF504125 | 125 | 10/16 |
| VF504150 | 150 | 10/16 |
| VF504201 | 200 | 10 |
| VF504200 | 200 | 16 |
| VF504251 | 250 | 10 |
| VF504250 | 250 | 16 |
| VF504301 | 300 | 10 |
| VF504300 | 300 | 16 |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
| Document | Type | Language | File size |
|---|---|---|---|
| FT VALVULA COMPUERTA REF. 504.pdf | Data Sheet | ES | 353,69 KB |
| DS REF. 504 GATE VALVE.pdf | Data Sheet | EN | 353,69 KB |
| FT VANNE À OPERCULE REF. 504.pdf | Data Sheet | FR | 357,93 KB |
| FT SARACINESCA A TENUTA METALLICA - FLANGIATA REF. 504.pdf | Data Sheet | IT | 353,38 KB |
| FT VÁLVULA COMPORTA REF. 504.pdf | Data Sheet | PT | 354,82 KB |
| IMAGE HQ WS-504.jpg | HQ Image | 3,24 MB | |
| TA nº 30 - PARAFUSOS EM AÇO - CLASSE DE QUALIDADE - CONCEITO E EXEMPLOS.pdf | Technical Articles | PT | 261,75 KB |
| TA nº 30 - TORNILLOS EN ACERO - CLASE DE CALIDAD - CONCEPTO Y EJEMPLOS.pdf | Technical Articles | ES | 260,37 KB |
| TA nº 30 - VIS EN ACIER – CLASSE DE QUALITE - CONCEPT ET EXEMPLES.pdf | Technical Articles | FR | 261,35 KB |
| TA nº 30 - BULLONI IN ACCIAIO - CLASSI DI RESISTENZA - CONCETTO ED ESEMPI.pdf | Technical Articles | IT | 260,76 KB |
| TA Nº 30 - STEEL BOLTS - PROPERTY CLASS - CONCEPT AND EXAMPLES.pdf | Technical Articles | EN | 260,39 KB |
