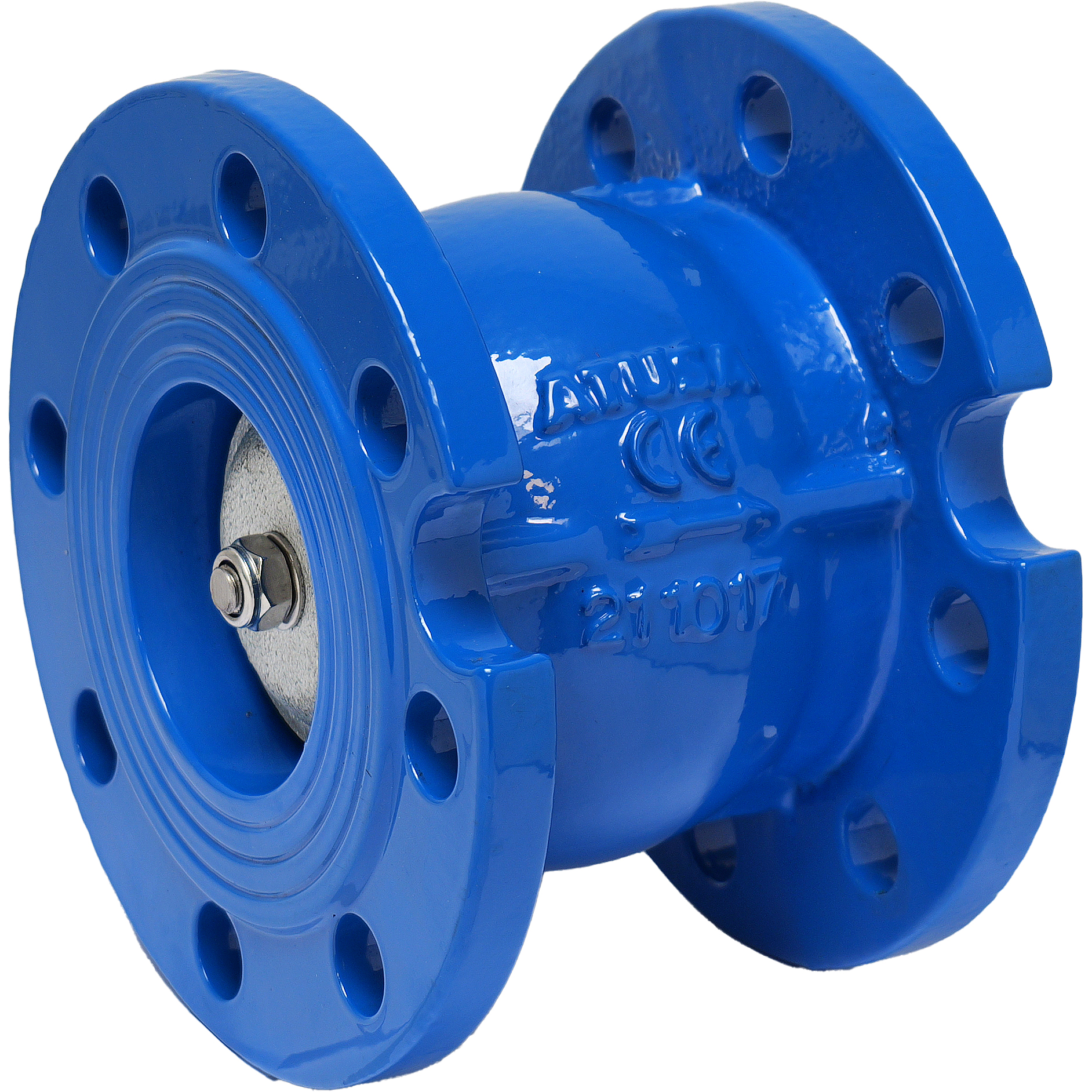

REF. 560 - AXIAL DISC CHECK VALVE
Inside and outside "EPOXY" powder coating.
Contact us
We will contact you as soon as possible
Specifications
| Reference | DN 1 | PN |
|---|---|---|
| VF560050 | 50 | 10/16 |
| VF560065 | 65 | 10/16 |
| VF560080 | 80 | 10/16 |
| VF560100 | 100 | 10/16 |
| VF560125 | 125 | 10/16 |
| VF560150 | 150 | 10/16 |
| VF560201 | 200 | 10 |
| VF560200 | 200 | 16 |
| VF560251 | 250 | 10 |
| VF560250 | 250 | 16 |
| VF560301 | 300 | 10 |
| VF560300 | 300 | 16 |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
| Document | Type | Language | File size |
|---|---|---|---|
| FT CLAPET DE RETENUE REF. 560.pdf | Data Sheet | FR | 377,24 KB |
| DS REF. 560 CHECK VALVE.pdf | Data Sheet | EN | 376,99 KB |
| FT VALVOLE DI RITEGNO ASSIALE REF. 560.pdf | Data Sheet | IT | 375,73 KB |
| FT VÁLVULA RETENÇÃO REF. 560.pdf | Data Sheet | PT | 378,10 KB |
| FT VALVULA RETENCION REF. 560.pdf | Data Sheet | ES | 376,99 KB |
| IMAGE HQ WS-560.jpg | HQ Image | 2,80 MB | |
| TA nº 20 - COEFICIENTE DE CAUDAL Kv.pdf | Technical Articles | PT | 8,48 MB |
| TA nº 20 - COEFICIENTE DE CAUDAL Kv.pdf | Technical Articles | ES | 8,49 MB |
| TA nº 20 - FLOW COEFFICIENT Kv.pdf | Technical Articles | EN | 8,48 MB |
