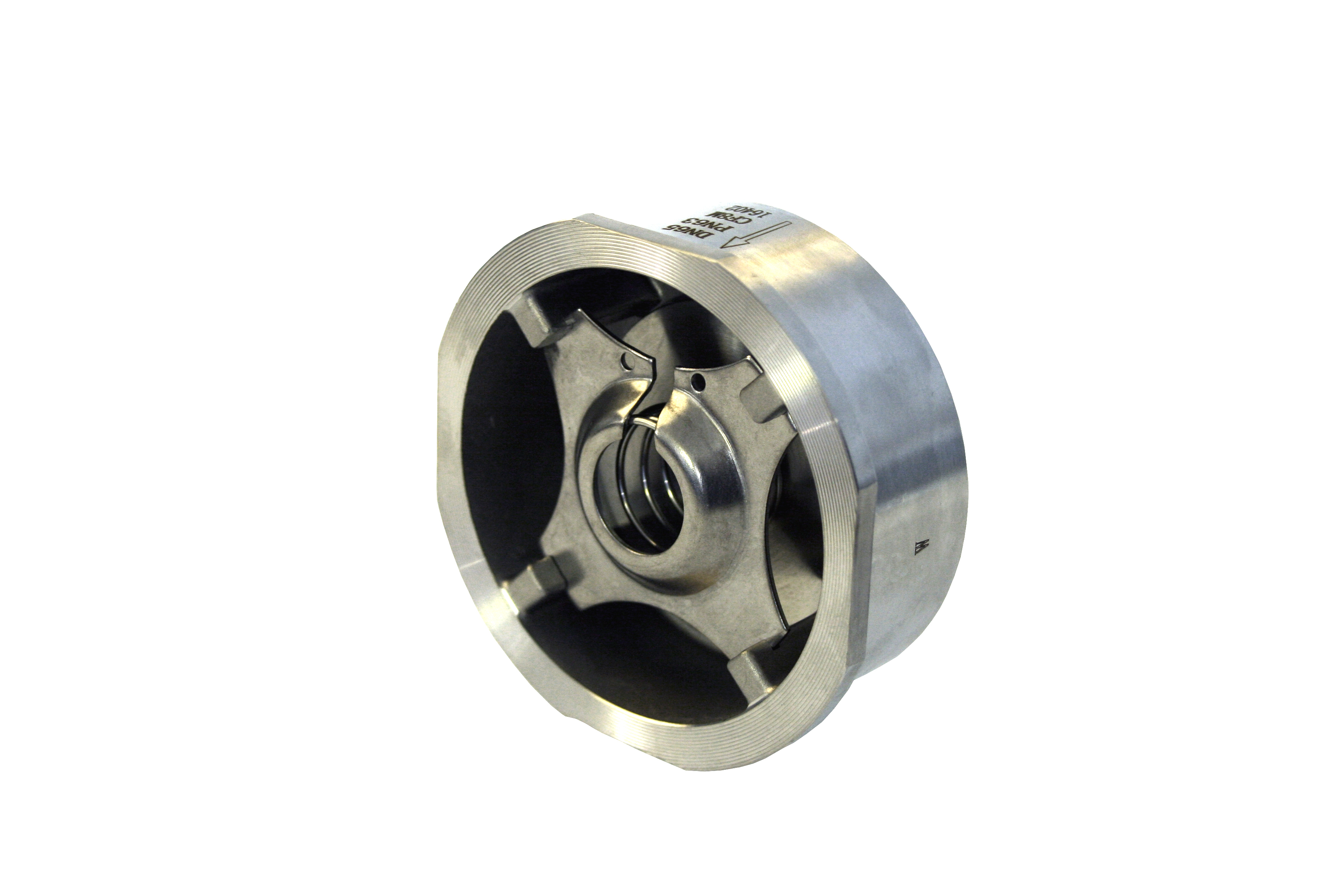

PN63 DISK CHECK VALVE "WAFER TYPE"
All positions, respect the flow direction indicated by the arrow. PN 63.
Contact us
We will contact you as soon as possible
Specifications
| Reference | Inch Ø 1 | DN 1 |
|---|---|---|
| IV566015 | 1/2" | 15 |
| IV566020 | 3/4" | 20 |
| IV566025 | 1" | 25 |
| IV566032 | 1 1/4" | 32 |
| IV566040 | 1 1/2" | 40 |
| IV566050 | 2" | 50 |
| IV566065 | 2 1/2" | 65 |
| IV566080 | 3" | 80 |
| IV566100 | 4" | 100 |
| IV566125 | 5" | 125 |
| IV566150 | 6" | 150 |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
| Document | Type | Language | File size |
|---|---|---|---|
| FT CLAPET ANTI RETOUR À DISQUE INOX.pdf | Data Sheet | FR | 589,22 KB |
| FT VÁLVULA RETENÇÃO INOX.pdf | Data Sheet | PT | 589,63 KB |
| FT VALVOLA DI RITEGNO INOX.pdf | Data Sheet | IT | 552,13 KB |
| FT VALVULA RETENCION INOX.pdf | Data Sheet | ES | 589,22 KB |
| DS INOX CHECK VALVE.pdf | Data Sheet | EN | 588,88 KB |
| IMAGE HQ SSF-IV566.jpg | HQ Image | 1,53 MB | |
| TA nº 20 - COEFICIENTE DE CAUDAL Kv.pdf | Technical Articles | ES | 8,49 MB |
| TA nº 20 - FLOW COEFFICIENT Kv.pdf | Technical Articles | EN | 8,48 MB |
| TA nº 20 - COEFICIENTE DE CAUDAL Kv.pdf | Technical Articles | PT | 8,48 MB |
