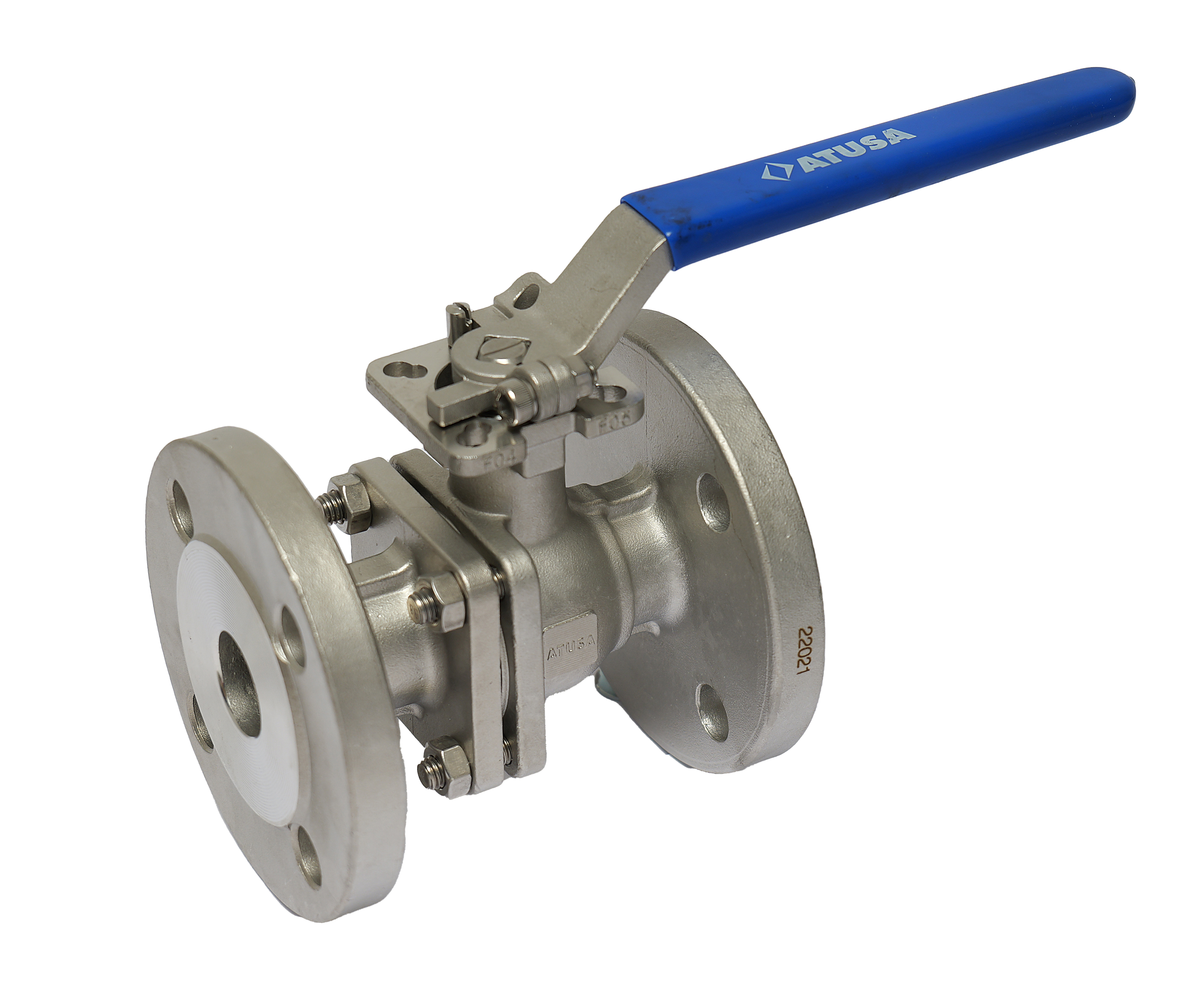

TWO PIECES BALL VALVE WITH FULL BORE - FLANGES
Flanges DIN 2635 (PN 40) from DN 15 to DN 40 and flanges DIN 2633 (PN 16) from DN 50 to DN 150. Direct mounting for actuators ISO 5211.
Contact us
We will contact you as soon as possible
Specifications
| Reference | Inch Ø 1 | DN 1 |
|---|---|---|
| IVB20200 | ||
| IVB20015 | 1/2" | 15 |
| IVB20020 | 3/4" | 20 |
| IVB20025 | 1" | 25 |
| IVB20032 | 1 1/4" | 32 |
| IVB20040 | 1 1/2" | 40 |
| IVB20050 | 2" | 50 |
| IVB20B65 | 2 1/2" | 65 |
| IVB20080 | 3" | 80 |
| IVB20100 | 4" | 100 |
| IVB20125 | 5" | 125 |
| IVB20150 | 6" | 150 |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
| Document | Type | Language | File size |
|---|---|---|---|
| FT VÁLVULA ESFERA DUAS PEÇAS FLANGEADA.pdf | Data Sheet | PT | 574,35 KB |
| FT VALVULA ESFERA DOS PIEZAS BRIDADA.pdf | Data Sheet | ES | 573,04 KB |
| FT VANNE À SPHÈRE DEUX PIÈCES A BRIDES.pdf | Data Sheet | FR | 572,72 KB |
| DS TWO PIECE FLANGED BALL VALVE.pdf | Data Sheet | EN | 573,04 KB |
| FT VALVOLA SFERA 2 PEZZI CON FLANGIA.pdf | Data Sheet | IT | 537,69 KB |
| IMAGE HQ SSF_IVB2P.jpg | HQ Image | 3,37 MB | |
| TA nº 20 - FLOW COEFFICIENT Kv.pdf | Technical Articles | EN | 8,48 MB |
| TA nº 20 - COEFICIENTE DE CAUDAL Kv.pdf | Technical Articles | ES | 8,49 MB |
| TA nº 20 - COEFICIENTE DE CAUDAL Kv.pdf | Technical Articles | PT | 8,48 MB |
