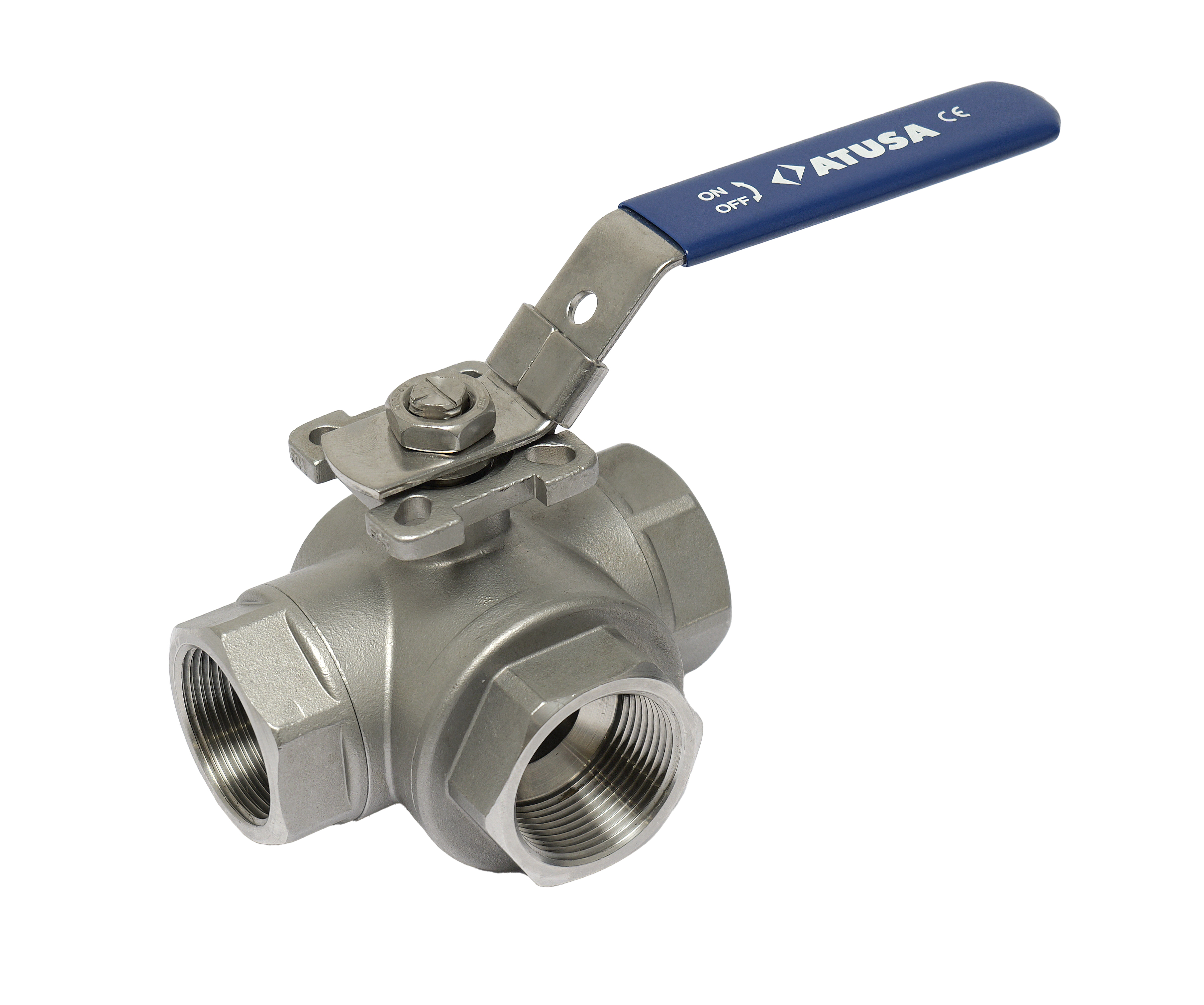

THREE WAYS BALL VALVE - "T" AND "L" TYPES
Handle in AISI 304 covered in blue PVC. Locking system. Direct mounting for actuators ISO 5211.
Contact us
We will contact you as soon as possible
Related products
Specifications
| Reference | Inch Ø 1 | DN 1 | Aperture | Box Quantity |
|---|---|---|---|---|
| IVBL0061 | 1/4" | 8 | L | 15 |
| IVBT0061 | 1/4" | 8 | T | 15 |
| IVBL0062 | 3/8" | 10 | L | 15 |
| IVBT0062 | 3/8" | 10 | T | 15 |
| IVBL0063 | 1/2" | 15 | L | 13 |
| IVBT0063 | 1/2" | 15 | T | 13 |
| IVBL0064 | 3/4" | 20 | L | 7 |
| IVBT0064 | 3/4" | 20 | T | 7 |
| IVBL0065 | 1" | 25 | L | 5 |
| IVBT0065 | 1" | 25 | T | 5 |
| IVBL0066 | 1 1/4" | 32 | L | 4 |
| IVBT0066 | 1 1/4" | 32 | T | 4 |
| IVBL0067 | 1 1/2" | 40 | L | 3 |
| IVBT0067 | 1 1/2" | 40 | T | 3 |
| IVBL0068 | 2" | 50 | L | 2 |
| IVBT0068 | 2" | 50 | T | 2 |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
| Document | Type | Language | File size |
|---|---|---|---|
| DS BALL VALVE THREE.pdf | Data Sheet | EN | 696,04 KB |
| FT VALVULA ESFERA 3 VIAS.pdf | Data Sheet | ES | 696,04 KB |
| Data Sheet | FR | 696,04 KB | |
| FT VÁLVULA ESFERA 3 VIAS.pdf | Data Sheet | PT | 696,99 KB |
| FT VALVOLA A SFERA 3 VIE.pdf | Data Sheet | IT | 697,29 KB |
| IMAGE HQ SSF-IVBT-L.jpg | HQ Image | 3,04 MB | |
| TA nº 14 - ROSCAS DE TUBAGENS - NORMAS EUROPEIAS.pdf | Technical Articles | PT | 2,45 MB |
| TA nº 14 - ROSCAS DE TUBERÍAS - NORMAS EUROPEAS.pdf | Technical Articles | ES | 2,46 MB |
