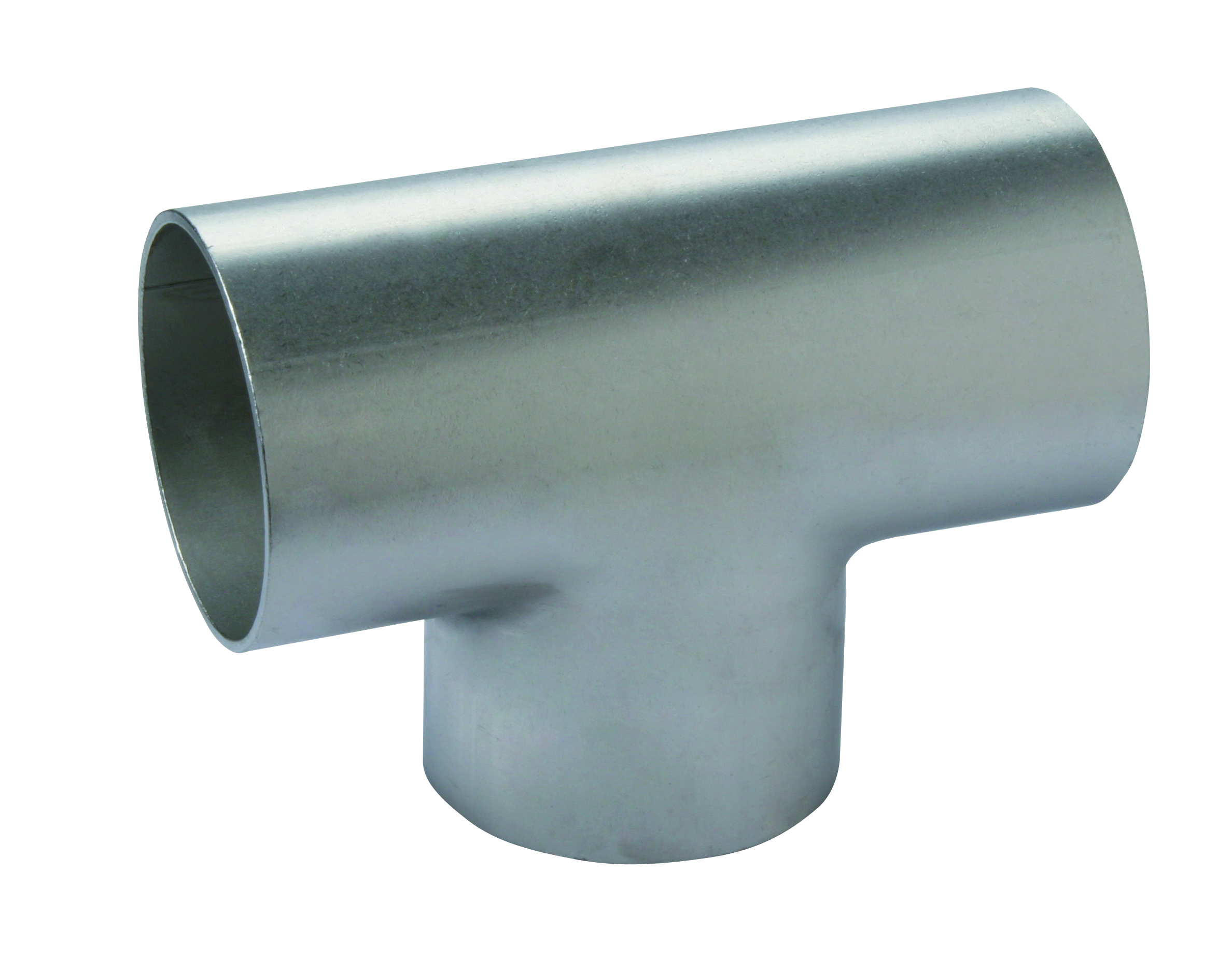

ISO Stainless Steel Tee ISO Stainless Steel Tee

STAINLESS STEEL TEE - ISO

Ask fot oher size.


Contact us

We will contact you as soon as possible

Specifications


Reference Inch Ø 1 Ø 1 (mm) DN 1 Thickness (mm) Material
IT104203 1/2" 21.3 15 2 AISI 304L
IT104303 1/2" 21.3 15 3 AISI 304L
IT106203 1/2" 21.3 15 2 AISI 316L
IT106303 1/2" 21.3 15 3 AISI 316L
IT104204 3/4" 26.9 20 2 AISI 304L
IT104304 3/4" 26.9 20 3 AISI 304L
IT106204 3/4" 26.9 20 2 AISI 316L
IT106304 3/4" 26.9 20 3 AISI 316L
IT104205 1" 33.7 25 2 AISI 304L
IT104305 1" 33.7 25 3 AISI 304L
IT106205 1" 33.7 25 2 AISI 316L
IT106305 1" 33.7 25 3 AISI 316L
IT104206 1 1/4" 42.4 32 2 AISI 304L
IT104306 1 1/4" 42.4 32 3 AISI 304L
IT106206 1 1/4" 42.4 32 2 AISI 316L
IT106306 1 1/4" 42.4 32 3 AISI 316L
IT104207 1 1/2" 48.3 40 2 AISI 304L
IT104307 1 1/2" 48.3 40 3 AISI 304L
IT106207 1 1/2" 48.3 40 2 AISI 316L
IT106307 1 1/2" 48.3 40 3 AISI 316L
IT104208 2" 60.3 50 2 AISI 304L
IT104308 2" 60.3 50 3 AISI 304L
IT106208 2" 60.3 50 2 AISI 316L
IT106308 2" 60.3 50 3 AISI 316L
IT104209 2 1/2" 76.1 65 2 AISI 304L
IT104309 2 1/2" 76.1 65 3 AISI 304L
IT106209 2 1/2" 76.1 65 2 AISI 316L
IT106309 2 1/2" 76.1 65 3 AISI 316L
IT10420A 3" 88.9 80 2 AISI 304L
IT10430A 3" 88.9 80 3 AISI 304L
IT10620A 3" 88.9 80 2 AISI 316L
IT10630A 3" 88.9 80 3 AISI 316L
IT10420B 3 1/2" 101.6 90 2 AISI 304L
IT10430B 3 1/2" 101.6 90 3 AISI 304L
IT10620B 3 1/2" 101.6 90 2 AISI 316L
IT10630B 3 1/2" 101.6 90 3 AISI 316L
IT10420C 4" 114.3 100 2 AISI 304L
IT10430C 4" 114.3 100 3 AISI 304L
IT10620C 4" 114.3 100 2 AISI 316L
IT10630C 4" 114.3 100 3 AISI 316L
IT10420D 5" 139.7 125 2 AISI 304L
IT10430D 5" 139.7 125 3 AISI 304L
IT10620D 5" 139.7 125 2 AISI 316L
IT10630D 5" 139.7 125 3 AISI 316L
IT10420E 6" 168.3 150 2 AISI 304L
IT10430E 6" 168.3 150 3 AISI 304L
IT10620E 6" 168.3 150 2 AISI 316L
IT10630E 6" 168.3 150 3 AISI 316L
IT10420F 8" 219.1 200 2 AISI 304L
IT10430F 8" 219.1 200 3 AISI 304L
IT10620F 8" 219.1 200 2 AISI 316L
IT10630F 8" 219.1 200 3 AISI 316L
IT10420G 10" 273.0 250 2 AISI 304L
IT10430G 10" 273.0 250 3 AISI 304L
IT10620G 10" 273.0 250 2 AISI 316L
IT10630G 10" 273.0 250 3 AISI 316L
IT10420H 12" 323.9 300 2 AISI 304L
IT10430H 12" 323.9 300 3 AISI 304L
IT10620H 12" 323.9 300 2 AISI 316L
IT10630H 12" 323.9 300 3 AISI 316L
IT10430I 14" 355.6 350 3 AISI 304L
IT10630I 14" 355.6 350 3 AISI 316L
IT10430L 16" 406.4 400 3 AISI 304L
IT10630L 16" 406.4 400 3 AISI 316L


Technical documentation

Note: due to the constant development of our products, the supplied data can be altered without prior notice.

Document Type Language File size
Data Sheet FR 371,29 KB
FT TE INOX AISI 304L EN 10253-4.pdf Data Sheet ES 371,29 KB
DS EN 10253-4 AISI 304L TEE.pdf Data Sheet EN 371,29 KB
FT TÊ INOX AISI 304L EN 10253-4.pdf Data Sheet PT 372,45 KB
FT TI INOX AISI 304L EN 10253-4.pdf Data Sheet IT 371,10 KB
Data Sheet FR 361,15 KB
FT TE INOX AISI 316L EN 10253-4.pdf Data Sheet ES 361,15 KB
FT TI INOX AISI 316L EN 10253-4.pdf Data Sheet IT 360,84 KB
FT TÊ INOX AISI 316L EN 10253-4.pdf Data Sheet PT 362,28 KB
DS EN 10253-4 AISI 316L TEE.pdf Data Sheet EN 361,15 KB
IMAGE HQ SSF-IT10.jpg HQ Image 2,43 MB
