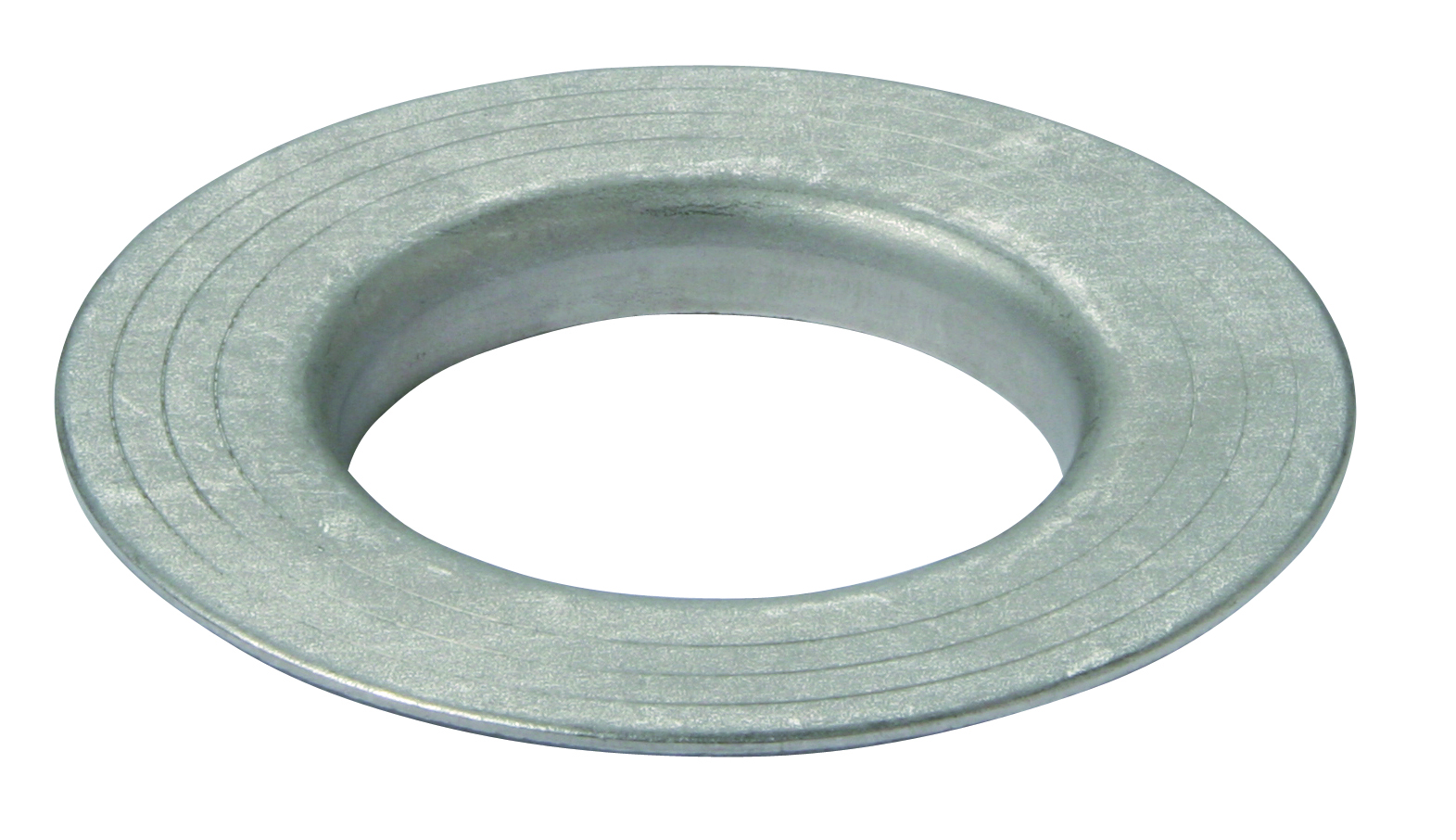

STAINLESS STEEL LAP JOINT - ISO
Ask fot oher size.
Contact us
We will contact you as soon as possible
Specifications
| Reference | Inch Ø 1 | Ø 1 (mm) | DN 1 | Thickness (mm) | Material |
|---|---|---|---|---|---|
| ICT04203 | 1/2" | 21.3 | 15 | 2 | AISI 304L |
| ICT04303 | 1/2" | 21.3 | 15 | 3 | AISI 304L |
| ICT06203 | 1/2" | 21.3 | 15 | 2 | AISI 316L |
| ICT06303 | 1/2" | 21.3 | 15 | 3 | AISI 316L |
| ICT04204 | 3/4" | 26.9 | 20 | 2 | AISI 304L |
| ICT06204 | 3/4" | 26.9 | 20 | 2 | AISI 316L |
| ICT06304 | 3/4" | 26.9 | 20 | 3 | AISI 316L |
| ICT04205 | 1" | 33.7 | 25 | 2 | AISI 304L |
| ICT06205 | 1" | 33.7 | 25 | 2 | AISI 316L |
| ICT06305 | 1" | 33.7 | 25 | 3 | AISI 316L |
| ICT04206 | 1 1/4" | 42.4 | 32 | 2 | AISI 304L |
| ICT06206 | 1 1/4" | 42.4 | 32 | 2 | AISI 316L |
| ICT06306 | 1 1/4" | 42.4 | 32 | 3 | AISI 316L |
| ICT04207 | 1 1/2" | 48.3 | 40 | 2 | AISI 304L |
| ICT06207 | 1 1/2" | 48.3 | 40 | 2 | AISI 316L |
| ICT06307 | 1 1/2" | 48.3 | 40 | 3 | AISI 316L |
| ICT04208 | 2" | 60.3 | 50 | 2 | AISI 304L |
| ICT06208 | 2" | 60.3 | 50 | 2 | AISI 316L |
| ICT06308 | 2" | 60.3 | 50 | 3 | AISI 316L |
| ICT04209 | 2 1/2" | 76.1 | 65 | 2 | AISI 304L |
| ICT06209 | 2 1/2" | 76.1 | 65 | 2 | AISI 316L |
| ICT06309 | 2 1/2" | 76.1 | 65 | 3 | AISI 316L |
| ICT0420A | 3" | 88.9 | 80 | 2 | AISI 304L |
| ICT0620A | 3" | 88.9 | 80 | 2 | AISI 316L |
| ICT0630A | 3" | 88.9 | 80 | 3 | AISI 316L |
| ICT0420B | 3 1/2" | 101.6 | 90 | 2 | AISI 304L |
| ICT0620B | 3 1/2" | 101.6 | 90 | 2 | AISI 316L |
| ICT0630B | 3 1/2" | 101.6 | 90 | 3 | AISI 316L |
| ICT0420C | 4" | 114.3 | 100 | 2 | AISI 304L |
| ICT0430C | 4" | 114.3 | 100 | 3 | AISI 304L |
| ICT0620C | 4" | 114.3 | 100 | 2 | AISI 316L |
| ICT0630C | 4" | 114.3 | 100 | 3 | AISI 316L |
| ICT0420D | 5" | 139.7 | 125 | 2 | AISI 304L |
| ICT0430D | 5" | 139.7 | 125 | 3 | AISI 304L |
| ICT0620D | 5" | 139.7 | 125 | 2 | AISI 316L |
| ICT0630D | 5" | 139.7 | 125 | 3 | AISI 316L |
| ICT0420E | 6" | 168.3 | 150 | 2 | AISI 304L |
| ICT0430E | 6" | 168.3 | 150 | 3 | AISI 304L |
| ICT0620E | 6" | 168.3 | 150 | 2 | AISI 316L |
| ICT0630E | 6" | 168.3 | 150 | 3 | AISI 316L |
| ICT0420F | 8" | 219.1 | 200 | 2 | AISI 304L |
| ICT0430F | 8" | 219.1 | 200 | 3 | AISI 304L |
| ICT0620F | 8" | 219.1 | 200 | 2 | AISI 316L |
| ICT0630F | 8" | 219.1 | 200 | 3 | AISI 316L |
| ICT0420G | 10" | 273.0 | 250 | 2 | AISI 304L |
| ICT0430G | 10" | 273.0 | 250 | 3 | AISI 304L |
| ICT0620G | 10" | 273.0 | 250 | 2 | AISI 316L |
| ICT0630G | 10" | 273.0 | 250 | 3 | AISI 316L |
| ICT0420H | 12" | 323.9 | 300 | 2 | AISI 304L |
| ICT0430H | 12" | 323.9 | 300 | 3 | AISI 304L |
| ICT0620H | 12" | 323.9 | 300 | 2 | AISI 316L |
| ICT0630H | 12" | 323.9 | 300 | 3 | AISI 316L |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
| Document | Type | Language | File size |
|---|---|---|---|
| Data Sheet | FR | 304,62 KB | |
| FT CARTELLE DI APPOGGIO INOX AISI 304L EN 10028-7.pdf | Data Sheet | IT | 304,81 KB |
| DS EN 10028-7 AISI 304L INOX LAP JOINT.pdf | Data Sheet | EN | 304,62 KB |
| FT VALONA INOX AISI 304L EN 10028-7.pdf | Data Sheet | PT | 305,91 KB |
| FT VALONA INOX AISI 304L EN 10028-7.pdf | Data Sheet | ES | 304,62 KB |
| DS EN 10028-7 AISI 316L INOX LAP JOINT.pdf | Data Sheet | EN | 294,48 KB |
| FT CARTELLE DI APPOGGIO INOX AISI 316L EN 10028-7.pdf | Data Sheet | IT | 294,67 KB |
| Data Sheet | FR | 294,48 KB | |
| FT VALONA INOX AISI 316L EN 10028-7.pdf | Data Sheet | PT | 295,81 KB |
| FT VALONA INOX AISI 316L EN 10028-7.pdf | Data Sheet | ES | 294,48 KB |
| IMAGE HQ SSF-ICT0.jpg | HQ Image | 1,29 MB |
