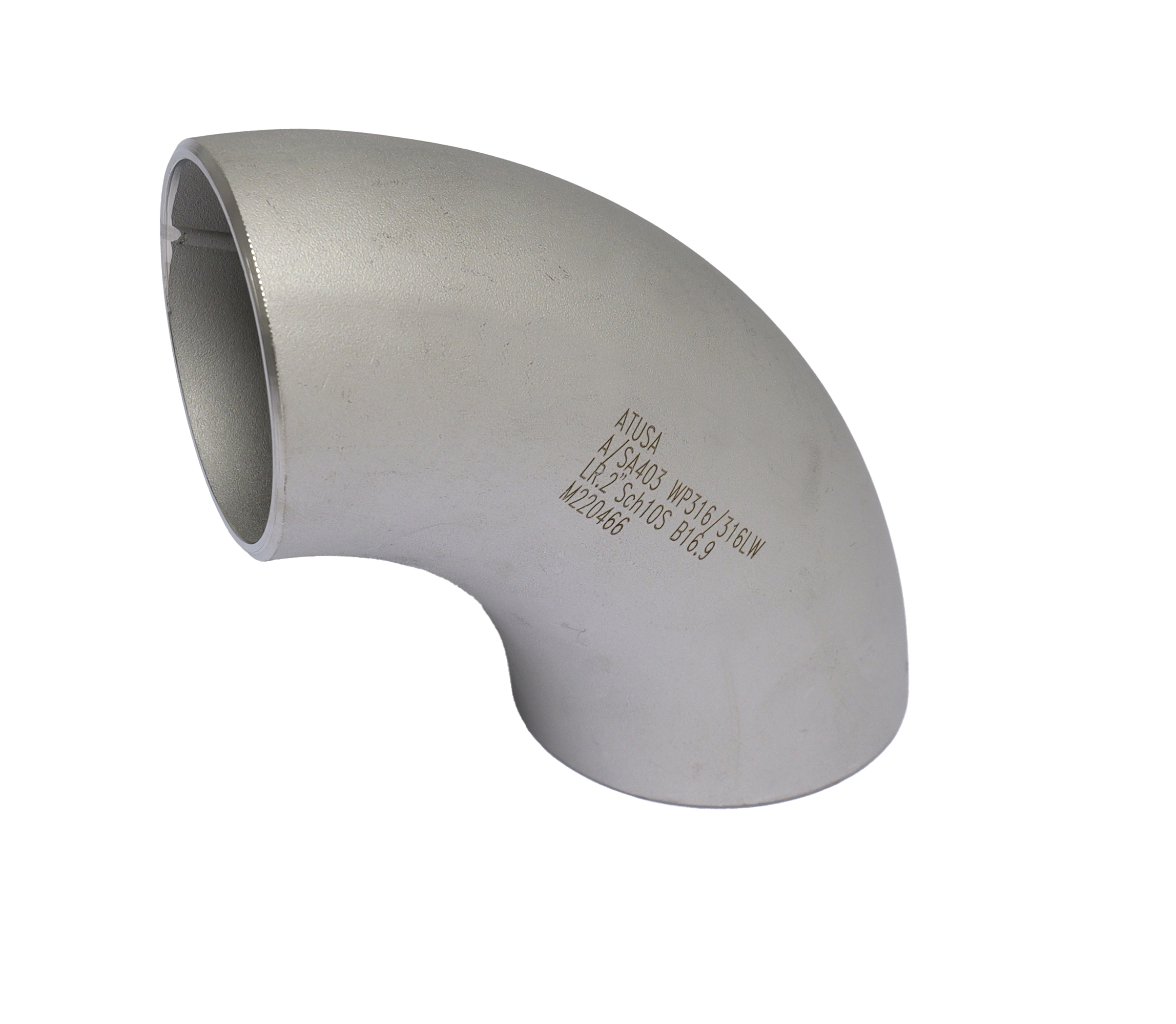

90° LONG RADIUS STAINLESS STEEL ELBOW - ASTM A-403

We will contact you as soon as possible

Specifications

Search term

Inch Ø 1

DN 1

Thickness (mm)

Out Ø (mm)

Material

Sch

Reference	Inch Ø 1	DN 1	Thickness (mm)	Out Ø (mm)	Material	Sch
I1CL940M	1/2"	15	2.11	21.3	AISI 304L	10
I1CL960M	1/2"	15	2.11	21.3	AISI 316L	10
I4CL960M	1/2"	15	2.77	21.3	AISI 316L	40
I1CL940T	3/4"	20	2.11	26.7	AISI 304L	10
I1CL960T	3/4"	20	2.11	26.7	AISI 316L	10
I4CL960T	3/4"	20	2.87	26.7	AISI 316L	40
I1CL9401	1"	25	2.77	33.4	AISI 304L	10
I1CL9601	1"	25	2.77	33.4	AISI 316L	10
I4CL9601	1"	25	3.38	33.4	AISI 316L	40
I1CL941C	1 1/4"	32	2.77	42.2	AISI 304L	10
I1CL961C	1 1/4"	32	2.77	42.2	AISI 316L	10
I4CL961C	1 1/4"	32	3.56	42.2	AISI 316L	40
I1CL941M	1 1/2"	40	2.77	48.3	AISI 304L	10
I1CL961M	1 1/2"	40	2.77	48.3	AISI 316L	10
I4CL961M	1 1/2"	40	3.68	48.3	AISI 316L	40
I1CL9402	2"	50	2.77	60.3	AISI 304L	10
I1CL9602	2"	50	2.77	60.3	AISI 316L	10
I4CL9602	2"	50	3.91	60.3	AISI 316L	40
I1CL942M	2 1/2"	65	3.05	73.0	AISI 304L	10
I1CL962M	2 1/2"	65	3.05	73.0	AISI 316L	10
I4CL962M	2 1/2"	65	5.16	73.0	AISI 316L	40
I1CL9403	3"	80	3.05	88.9	AISI 304L	10
I1CL9603	3"	80	3.05	88.9	AISI 316L	10
I4CL9603	3"	80	5.46	88.9	AISI 316L	40
I1CL9404	4"	100	3.05	114.3	AISI 304L	10
I1CL9604	4"	100	3.05	114.3	AISI 316L	10
I4CL9604	4"	100	6.02	114.3	AISI 316L	40
I1CL9405	5"	125	3.4	141.3	AISI 304L	10
I1CL9605	5"	125	3.4	141.3	AISI 316L	10
I4CL9605	5"	125	6.55	141.3	AISI 316L	40
I1CL9406	6"	150	3.4	168.3	AISI 304L	10
I1CL9606	6"	150	3.4	168.3	AISI 316L	10
I4CL9606	6"	150	7.11	168.3	AISI 316L	40
I1CL9408	8"	200	3.76	219.1	AISI 304L	10
I1CL9608	8"	200	3.76	219.1	AISI 316L	10
I4CL9608	8"	200	8.18	219.1	AISI 316L	40
I1CL9410	10"	250	4.19	273	AISI 304L	10
I1CL9610	10"	250	4.19	273.0	AISI 316L	10
I4CL9610	10"	250	9.27	273	AISI 316L	40

Note: due to the constant development of our products, the supplied data can be altered without prior notice.
