Union Elbow Taper Seat 98 Union Elbow Taper Seat 98

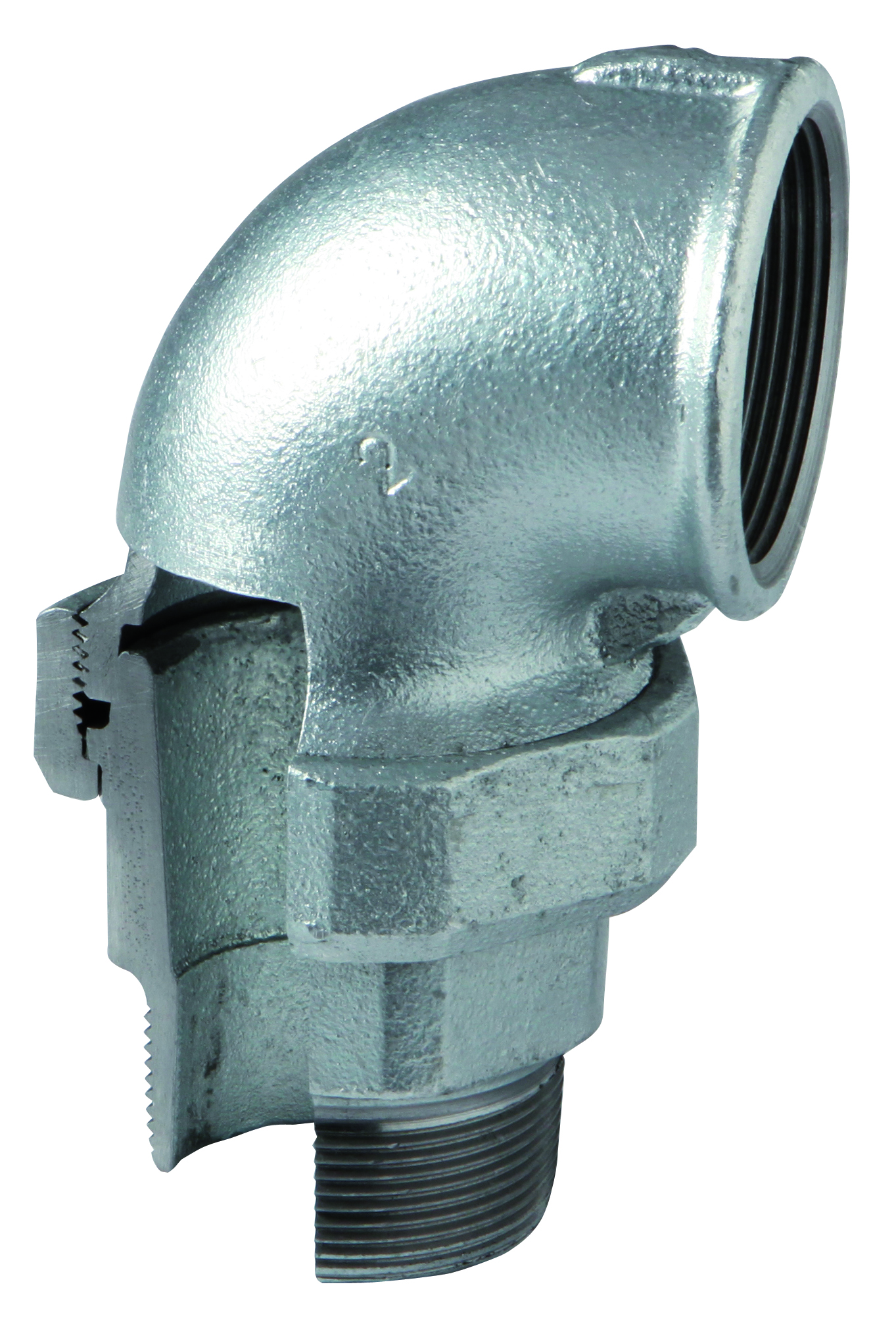

FIG. 98 - UNION ELBOW, TAPER SEAT M/F

ISO/EN UA12


Contact us

We will contact you as soon as possible

Related products

ATUSA PTFE TAPE ATUSA PTFE TAPE
REF. A90 - ANAEROBIC SEALANT OF PTFE FOR METAL JOINTS REF. A90 - ANAEROBIC SEALANT OF PTFE FOR METAL JOINTS

Specifications


Reference Inch Ø 1 Minimum Quantity Box Quantity Finish
09801001 1/4" 10 120 Black
09805001 1/4" 10 120 Galvanized
09801002 3/8" 10 80 Black
09805002 3/8" 10 80 Galvanized
09801003 1/2" 10 50 Black
09805003 1/2" 10 50 Galvanized
09801004 3/4" 10 30 Black
09805004 3/4" 10 30 Galvanized
09801005 1" 1 23 Black
09805005 1" 1 23 Galvanized
09801006 1 1/4" 1 12 Black
09805006 1 1/4" 1 12 Galvanized
09801007 1 1/2" 1 10 Black
09805007 1 1/2" 1 10 Galvanized
09801008 2" 1 6 Black
09805008 2" 1 6 Galvanized
09801009 2 1/2" 1 3 Black
09805009 2 1/2" 1 3 Galvanized
0980100A 3" 1 2 Black
0980500A 3" 1 2 Galvanized


Technical documentation

Note: due to the constant development of our products, the supplied data can be altered without prior notice.

Document Type Language File size
FT MALLÉABLE FIG. 98.pdf Data Sheet FR 442,25 KB
FT MALEABLE FIG. 98.pdf Data Sheet ES 402,28 KB
FT MALLEABILE FIG. 98.pdf Data Sheet IT 441,38 KB
DB TEMPERGUSSFITTINGS FIG. 98.pdf Data Sheet DE 442,65 KB
DS FIG. 98 IRON CAST.pdf Data Sheet EN 402,28 KB
FT MALEÁVEL FIG. 98.pdf Data Sheet PT 443,01 KB
TA nº 29 - RED DE INCENDIO CON SPRINKLERS - ANÁLISIS ROSCADOS versus RANURADOS.pdf Technical Articles ES 6,88 MB
TA nº 29 - REDE DE INCÊNDIO COM SPRINKLERS - ANÁLISE ROSCADOS versus RANHURADOS.pdf Technical Articles PT 7,15 MB
AENOR ATUSA ACCESORIOS HIERRO MALEABLE.pdf Product Certificate ES 1,27 MB
CERTIF ATUSA FITTING.pdf Product Certificate EN 243,76 KB
CERTIF ATUSA ACESSORIOS FERRO MALEÁVEL.pdf Product Certificate PT 243,76 KB
DVGW ATUSA TEMPERGUSSFITTINGS.pdf Product Certificate DE 143,07 KB
DVGW ATUSA FITTINGS.pdf Product Certificate EN 143,07 KB
FM ATUSA FITTINGS.pdf Product Certificate EN 162,79 KB
PZH ATUSA FITTINGS.pdf Product Certificate EN 904,48 KB
SVGW GAS ATUSA TEMPERGUSSFITTINGS.pdf Product Certificate DE 251,33 KB
SVGW WATER ATUSA TEMPERGUSSFITTINGS.pdf Product Certificate DE 171,13 KB
TSE ATUSA FITTINGS.pdf Product Certificate EN - TR 694,77 KB
UA ATUSA.pdf Product Certificate DE 201,82 KB
IMAGE HQ MF-98.jpg HQ Image 2,47 MB
TA nº 14 - ROSCAS DE TUBERÍAS - NORMAS EUROPEAS.pdf Technical Articles ES 2,46 MB
TA nº 14 - ROSCAS DE TUBAGENS - NORMAS EUROPEIAS.pdf Technical Articles PT 2,45 MB
TA nº 22 - RACCORDI FILETTATI UNI EN 10242 - QUOTA Z.pdf Technical Articles IT 2,15 MB
TA nº 22 - ACCESORIOS ROSCADOS EN 10242 - COTA Z.pdf Technical Articles ES 2,15 MB
TA nº 22 - ACESSÓRIOS ROSCADOS EN 10242 - COTA Z.pdf Technical Articles PT 2,16 MB
TA nº 17 - DIMENSIONAMENTO DE REDE INCÊNDIOS ARMADA - EXEMPLO.pdf Technical Articles PT 458,51 KB
TA nº 17 - DIMENSIONADO DE REDE INCENDIOS EQUIPADA - EJEMPLO.pdf Technical Articles ES 360,91 KB
TA nº 26 - RED DE INCENDIO - ANÁLISIS ROSCADOS versus RANURADOS.pdf Technical Articles ES 9,44 MB
TA nº 26 - REDE DE INCÊNDIO - ANÁLISE ROSCADOS versus RANHURADOS.pdf Technical Articles PT 9,93 MB
