90 Reducing Elbow 92R 90 Reducing Elbow 92R

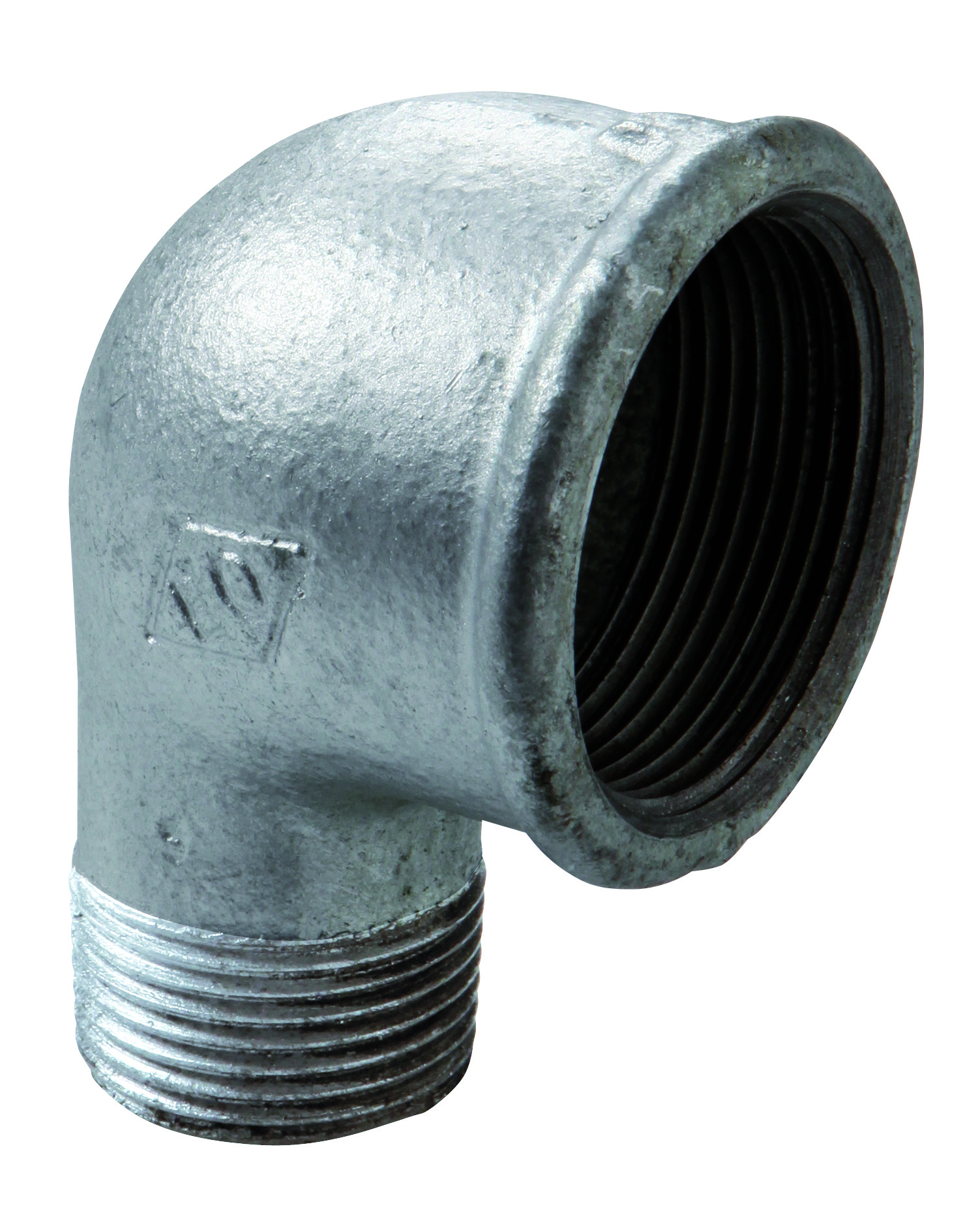

FIG. 92R - 90˚ REDUCING ELBOW F/M

ISO/EN A4


Contact us

We will contact you as soon as possible

Related products

ATUSA PTFE TAPE ATUSA PTFE TAPE
REF. A90 - ANAEROBIC SEALANT OF PTFE FOR METAL JOINTS REF. A90 - ANAEROBIC SEALANT OF PTFE FOR METAL JOINTS

Specifications


Reference Inch Ø 1 Inch Ø 2 Minimum Quantity Box Quantity Finish
09201023 3/8" 1/2" 10 150 Black
09205023 3/8" 1/2" 10 150 Galvanized
09201032 1/2" 3/8" 10 150 Black
09205032 1/2" 3/8" 10 150 Galvanized
09201034 1/2" 3/4" 10 90 Black
09205034 1/2" 3/4" 10 90 Galvanized
09201043 3/4" 1/2" 10 90 Black
09205043 3/4" 1/2" 10 90 Galvanized
09201045 3/4" 1" 10 60 Black
09205045 3/4" 1" 10 60 Galvanized
09201054 1" 3/4" 10 60 Black
09205054 1" 3/4" 10 60 Galvanized
09201056 1" 1 1/4" 10 30 Black
09205056 1" 1 1/4" 10 30 Galvanized
09201065 1 1/4" 1" 1 30 Black
09205065 1 1/4" 1" 1 30 Galvanized
09201075 1 1/2" 1" 1 20 Black
09205075 1 1/2" 1" 1 20 Galvanized
09201076 1 1/2" 1 1/4" 1 20 Black
09205076 1 1/2" 1 1/4" 1 20 Galvanized


Technical documentation

Note: due to the constant development of our products, the supplied data can be altered without prior notice.

Document Type Language File size
DB TEMPERGUSSFITTINGS FIG. 92R.pdf Data Sheet DE 397,47 KB
FT MALEABLE FIG. 92R.pdf Data Sheet ES 396,56 KB
FT MALLÉABLE FIG. 92R.pdf Data Sheet FR 397,40 KB
FT MALLEABILE FIG. 92R.pdf Data Sheet IT 396,26 KB
FT MALEÁVEL FIG. 92R.pdf Data Sheet PT 398,52 KB
DS FIG. 92R IRON CAST.pdf Data Sheet EN 396,56 KB
AENOR ATUSA ACCESORIOS HIERRO MALEABLE.pdf Product Certificate ES 1,27 MB
CERTIF ATUSA FITTING.pdf Product Certificate EN 243,76 KB
CERTIF ATUSA ACESSORIOS FERRO MALEÁVEL.pdf Product Certificate PT 243,76 KB
DVGW ATUSA FITTINGS.pdf Product Certificate EN 143,07 KB
DVGW ATUSA TEMPERGUSSFITTINGS.pdf Product Certificate DE 143,07 KB
FM ATUSA FITTINGS.pdf Product Certificate EN 162,79 KB
PZH ATUSA FITTINGS.pdf Product Certificate EN 904,48 KB
SVGW GAS ATUSA TEMPERGUSSFITTINGS.pdf Product Certificate DE 251,33 KB
SVGW WATER ATUSA TEMPERGUSSFITTINGS.pdf Product Certificate DE 171,13 KB
TSE ATUSA FITTINGS.pdf Product Certificate EN - TR 694,77 KB
UA ATUSA.pdf Product Certificate DE 201,82 KB
IMAGE HQ MF-92R.jpg HQ Image 1,41 MB
TA nº 19 - ACES. ROSCADOS EN 10242 - COEFICIENTES DE CAUDAL.pdf Technical Articles PT 2,18 MB
TA nº 19 - ACC. ROSCADOS EN 10242 - COEFICIENTES DE CAUDAL.pdf Technical Articles ES 2,17 MB
TA nº 19 - THREADED FITTINGS EN 10242 - FLOW COEFFICIENTS.pdf Technical Articles EN 2,18 MB
TA nº 29 - REDE DE INCÊNDIO COM SPRINKLERS - ANÁLISE ROSCADOS versus RANHURADOS.pdf Technical Articles PT 7,15 MB
TA nº 29 - RED DE INCENDIO CON SPRINKLERS - ANÁLISIS ROSCADOS versus RANURADOS.pdf Technical Articles ES 6,88 MB
