45 Long Sweep Bend 41 45 Long Sweep Bend 41

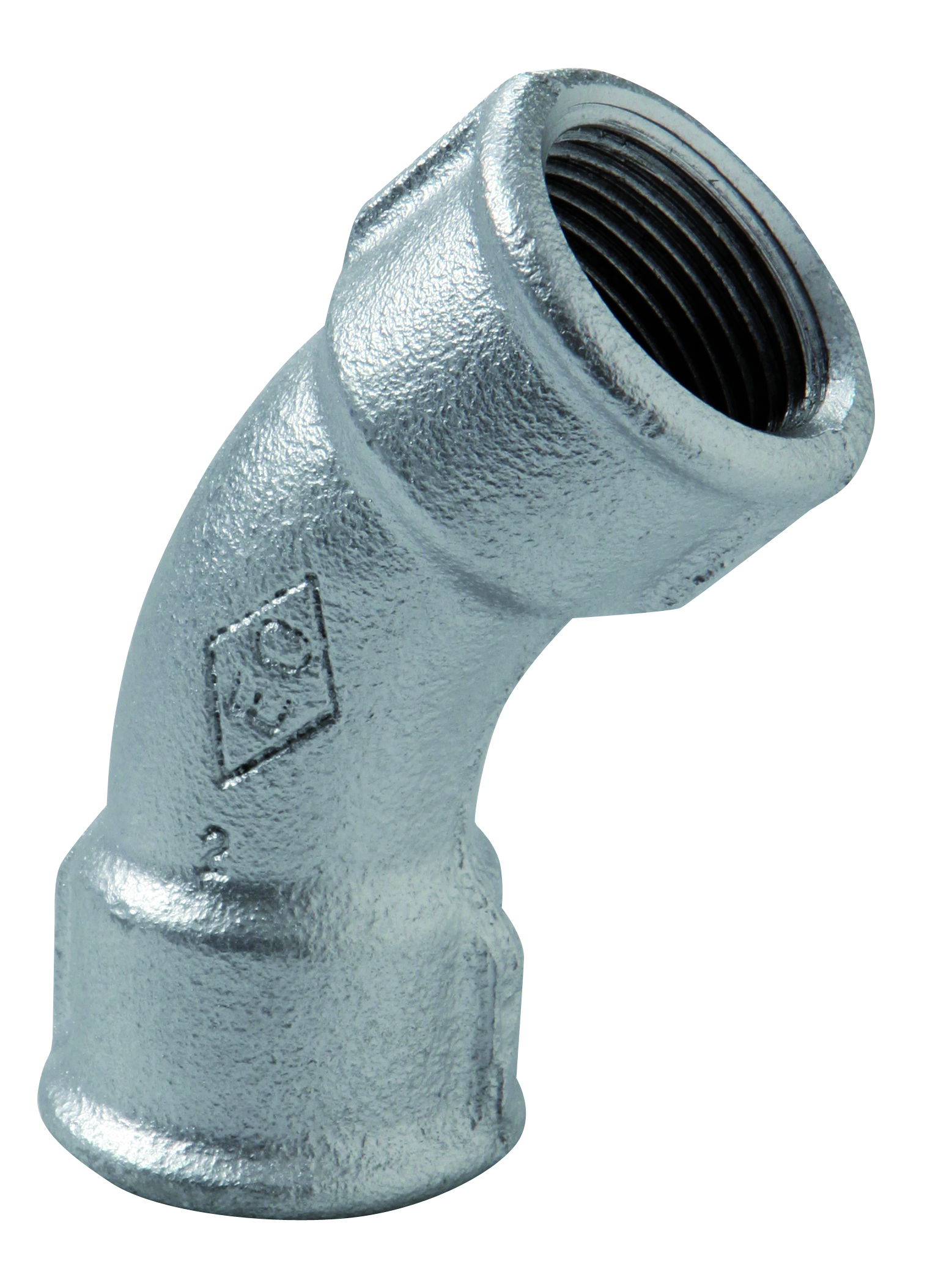

FIG. 41 - 45˚ LONG SWEEP BEND F/F

ISO/EN G1/45˚


Contact us

We will contact you as soon as possible

Related products

ATUSA PTFE TAPE ATUSA PTFE TAPE
REF. A90 - ANAEROBIC SEALANT OF PTFE FOR METAL JOINTS REF. A90 - ANAEROBIC SEALANT OF PTFE FOR METAL JOINTS

Specifications


Reference Inch Ø 1 Minimum Quantity Box Quantity Finish
04101001 1/4" 10 220 Black
04105001 1/4" 10 220 Galvanized
04101002 3/8" 10 150 Black
04105002 3/8" 10 150 Galvanized
04101003 1/2" 10 100 Black
04105003 1/2" 10 100 Galvanized
04101004 3/4" 10 60 Black
04105004 3/4" 10 60 Galvanized
04101005 1" 1 40 Black
04105005 1" 1 40 Galvanized
04101006 1 1/4" 1 22 Black
04105006 1 1/4" 1 22 Galvanized
04101007 1 1/2" 1 15 Black
04105007 1 1/2" 1 15 Galvanized
04101008 2" 1 9 Black
04105008 2" 1 9 Galvanized
04101009 2 1/2" 1 4 Black
04105009 2 1/2" 1 4 Galvanized
0410100A 3" 1 2 Black
0410500A 3" 1 2 Galvanized
0410100C 4" 1 2 Black
0410500C 4" 1 2 Galvanized


Technical documentation

Note: due to the constant development of our products, the supplied data can be altered without prior notice.

Document Type Language File size
FT MALEABLE FIG. 41.pdf Data Sheet ES 375,05 KB
FT MALLEABILE FIG. 41.pdf Data Sheet IT 374,42 KB
FT MALLÉABLE FIG. 41.pdf Data Sheet FR 375,84 KB
FT MALEÁVEL FIG. 41.pdf Data Sheet PT 376,42 KB
DB TEMPERGUSSFITTINGS FIG. 41.pdf Data Sheet DE 375,68 KB
DS FIG. 41 IRON CAST.pdf Data Sheet EN 375,05 KB
AENOR ATUSA ACCESORIOS HIERRO MALEABLE.pdf Product Certificate ES 1,27 MB
CERTIF ATUSA FITTING.pdf Product Certificate EN 243,76 KB
CERTIF ATUSA ACESSORIOS FERRO MALEÁVEL.pdf Product Certificate PT 243,76 KB
DVGW ATUSA TEMPERGUSSFITTINGS.pdf Product Certificate DE 143,07 KB
DVGW ATUSA FITTINGS.pdf Product Certificate EN 143,07 KB
FM ATUSA FITTINGS.pdf Product Certificate EN 162,79 KB
PZH ATUSA FITTINGS.pdf Product Certificate EN 904,48 KB
SVGW GAS ATUSA TEMPERGUSSFITTINGS.pdf Product Certificate DE 251,33 KB
SVGW WATER ATUSA TEMPERGUSSFITTINGS.pdf Product Certificate DE 171,13 KB
TSE ATUSA FITTINGS.pdf Product Certificate EN - TR 694,77 KB
UA ATUSA.pdf Product Certificate DE 201,82 KB
IMAGE HQ MF-41.jpg HQ Image 2,35 MB
TA nº 13 - ACESS ROSCADOS EN 10242 - COMPRIMENTO EQUIVALENTE.pdf Technical Articles PT 652,41 KB
TA Nº 13 - THREADED FITTINGS EN 10242 - EQUIVALENT PIPE LENGHT.pdf Technical Articles EN 650,93 KB
TA nº 13 - ACC. ROSCADOS EN 10242 - LONGITUD EQUIVALENTE.pdf Technical Articles ES 650,93 KB
TA nº 14 - ROSCAS DE TUBERÍAS - NORMAS EUROPEAS.pdf Technical Articles ES 2,46 MB
TA nº 14 - ROSCAS DE TUBAGENS - NORMAS EUROPEIAS.pdf Technical Articles PT 2,45 MB
TA nº 19 - ACC. ROSCADOS EN 10242 - COEFICIENTES DE CAUDAL.pdf Technical Articles ES 2,17 MB
TA nº 19 - THREADED FITTINGS EN 10242 - FLOW COEFFICIENTS.pdf Technical Articles EN 2,18 MB
TA nº 19 - ACES. ROSCADOS EN 10242 - COEFICIENTES DE CAUDAL.pdf Technical Articles PT 2,18 MB
TA nº 17 - DIMENSIONAMENTO DE REDE INCÊNDIOS ARMADA - EXEMPLO.pdf Technical Articles PT 458,51 KB
TA nº 17 - DIMENSIONADO DE REDE INCENDIOS EQUIPADA - EJEMPLO.pdf Technical Articles ES 360,91 KB
TA nº 26 - RED DE INCENDIO - ANÁLISIS ROSCADOS versus RANURADOS.pdf Technical Articles ES 9,44 MB
TA nº 26 - REDE DE INCÊNDIO - ANÁLISE ROSCADOS versus RANHURADOS.pdf Technical Articles PT 9,93 MB
