90 Long Sweep Bend 3 90 Long Sweep Bend 3

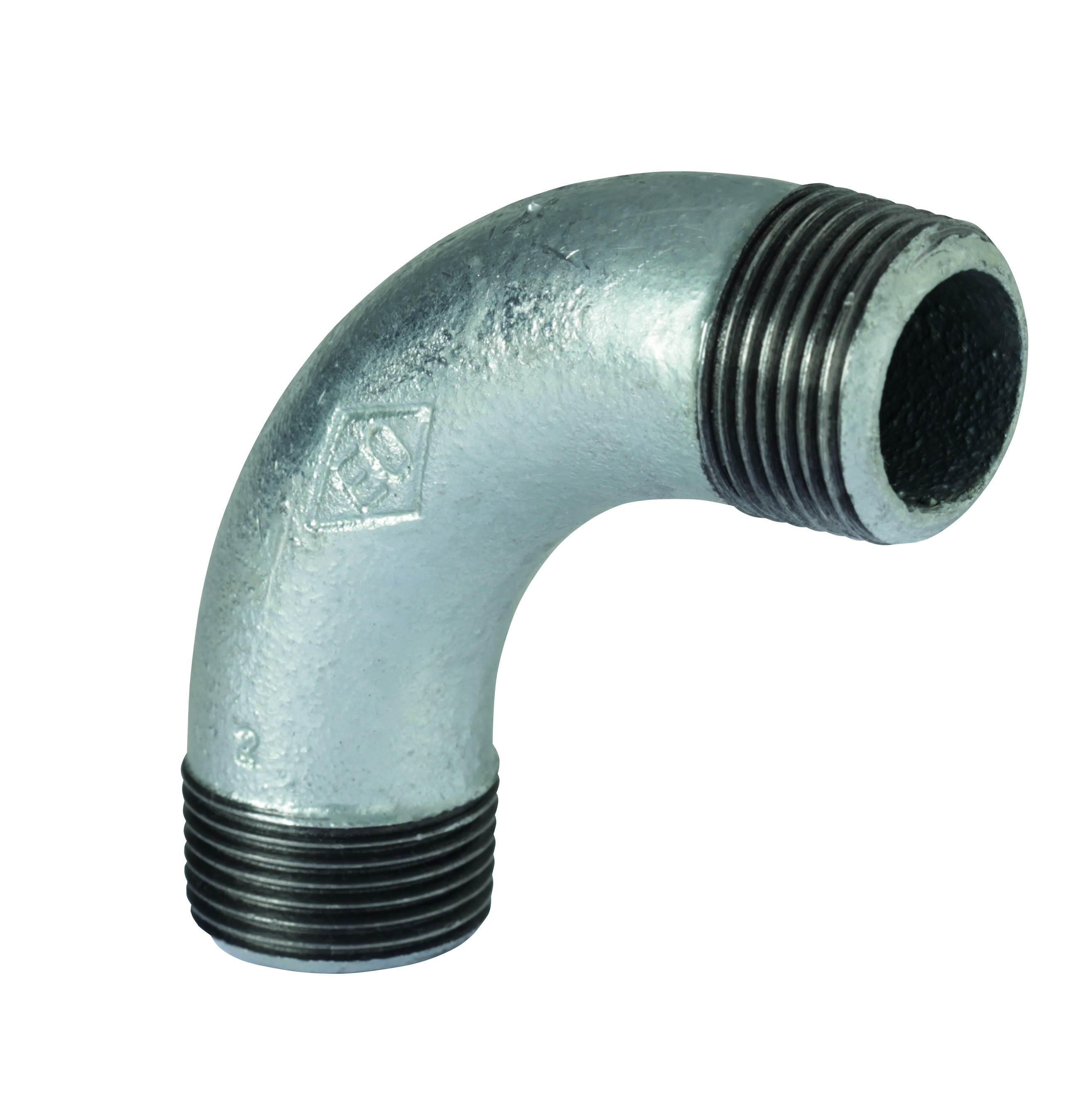

FIG. 3 - 90˚ LONG SWEEP BEND M/M

ISO/EN G8


Contact us

We will contact you as soon as possible

Related products

ATUSA PTFE TAPE ATUSA PTFE TAPE
REF. A90 - ANAEROBIC SEALANT OF PTFE FOR METAL JOINTS REF. A90 - ANAEROBIC SEALANT OF PTFE FOR METAL JOINTS

Specifications


Reference Inch Ø 1 Minimum Quantity Box Quantity Finish
03001001 1/4" 10 300 Black
03005001 1/4" 10 300 Galvanized
03001002 3/8" 10 200 Black
03005002 3/8" 10 200 Galvanized
03001003 1/2" 10 120 Black
03005003 1/2" 10 120 Galvanized
03001004 3/4" 10 70 Black
03005004 3/4" 10 70 Galvanized
03001005 1" 1 40 Black
03005005 1" 1 40 Galvanized
03001006 1 1/4" 1 20 Black
03005006 1 1/4" 1 20 Galvanized
03001007 1 1/2" 1 14 Black
03005007 1 1/2" 1 14 Galvanized
03001008 2" 1 7 Black
03005008 2" 1 7 Galvanized
03001009 2 1/2" 1 3 Black
03005009 2 1/2" 1 3 Galvanized
0300100A 3" 1 5 Black
0300500A 3" 1 5 Galvanized


Technical documentation

Note: due to the constant development of our products, the supplied data can be altered without prior notice.

Document Type Language File size
FT MALEABLE FIG. 3.pdf Data Sheet ES 383,25 KB
FT MALLEABILE FIG. 3.pdf Data Sheet IT 382,40 KB
FT MALLÉABLE FIG. 3.pdf Data Sheet FR 383,23 KB
DB TEMPERGUSSFITTINGS FIG. 3.pdf Data Sheet DE 383,31 KB
FT MALEÁVEL FIG. 3.pdf Data Sheet PT 384,14 KB
DS FIG. 3 IRON CAST.pdf Data Sheet EN 383,25 KB
AENOR ATUSA ACCESORIOS HIERRO MALEABLE.pdf Product Certificate ES 1,27 MB
CERTIF ATUSA ACESSORIOS FERRO MALEÁVEL.pdf Product Certificate PT 243,76 KB
CERTIF ATUSA FITTING.pdf Product Certificate EN 243,76 KB
DVGW ATUSA FITTINGS.pdf Product Certificate EN 143,07 KB
DVGW ATUSA TEMPERGUSSFITTINGS.pdf Product Certificate DE 143,07 KB
FM ATUSA FITTINGS.pdf Product Certificate EN 162,79 KB
PZH ATUSA FITTINGS.pdf Product Certificate EN 904,48 KB
SVGW GAS ATUSA TEMPERGUSSFITTINGS.pdf Product Certificate DE 251,33 KB
SVGW WATER ATUSA TEMPERGUSSFITTINGS.pdf Product Certificate DE 171,13 KB
TSE ATUSA FITTINGS.pdf Product Certificate EN - TR 694,77 KB
UA ATUSA.pdf Product Certificate DE 201,82 KB
IMAGE HQ MF-3.jpg HQ Image 2,89 MB
TA nº 13 - ACC. ROSCADOS EN 10242 - LONGITUD EQUIVALENTE.pdf Technical Articles ES 650,93 KB
TA Nº 13 - THREADED FITTINGS EN 10242 - EQUIVALENT PIPE LENGHT.pdf Technical Articles EN 650,93 KB
TA nº 13 - ACESS ROSCADOS EN 10242 - COMPRIMENTO EQUIVALENTE.pdf Technical Articles PT 652,41 KB
TA nº 14 - ROSCAS DE TUBAGENS - NORMAS EUROPEIAS.pdf Technical Articles PT 2,45 MB
TA nº 14 - ROSCAS DE TUBERÍAS - NORMAS EUROPEAS.pdf Technical Articles ES 2,46 MB
TA nº 17 - DIMENSIONADO DE REDE INCENDIOS EQUIPADA - EJEMPLO.pdf Technical Articles ES 360,91 KB
TA nº 17 - DIMENSIONAMENTO DE REDE INCÊNDIOS ARMADA - EXEMPLO.pdf Technical Articles PT 458,51 KB
TA nº 26 - REDE DE INCÊNDIO - ANÁLISE ROSCADOS versus RANHURADOS.pdf Technical Articles PT 9,93 MB
TA nº 26 - RED DE INCENDIO - ANÁLISIS ROSCADOS versus RANURADOS.pdf Technical Articles ES 9,44 MB
TA nº 29 - RED DE INCENDIO CON SPRINKLERS - ANÁLISIS ROSCADOS versus RANURADOS.pdf Technical Articles ES 6,88 MB
TA nº 29 - REDE DE INCÊNDIO COM SPRINKLERS - ANÁLISE ROSCADOS versus RANHURADOS.pdf Technical Articles PT 7,15 MB
