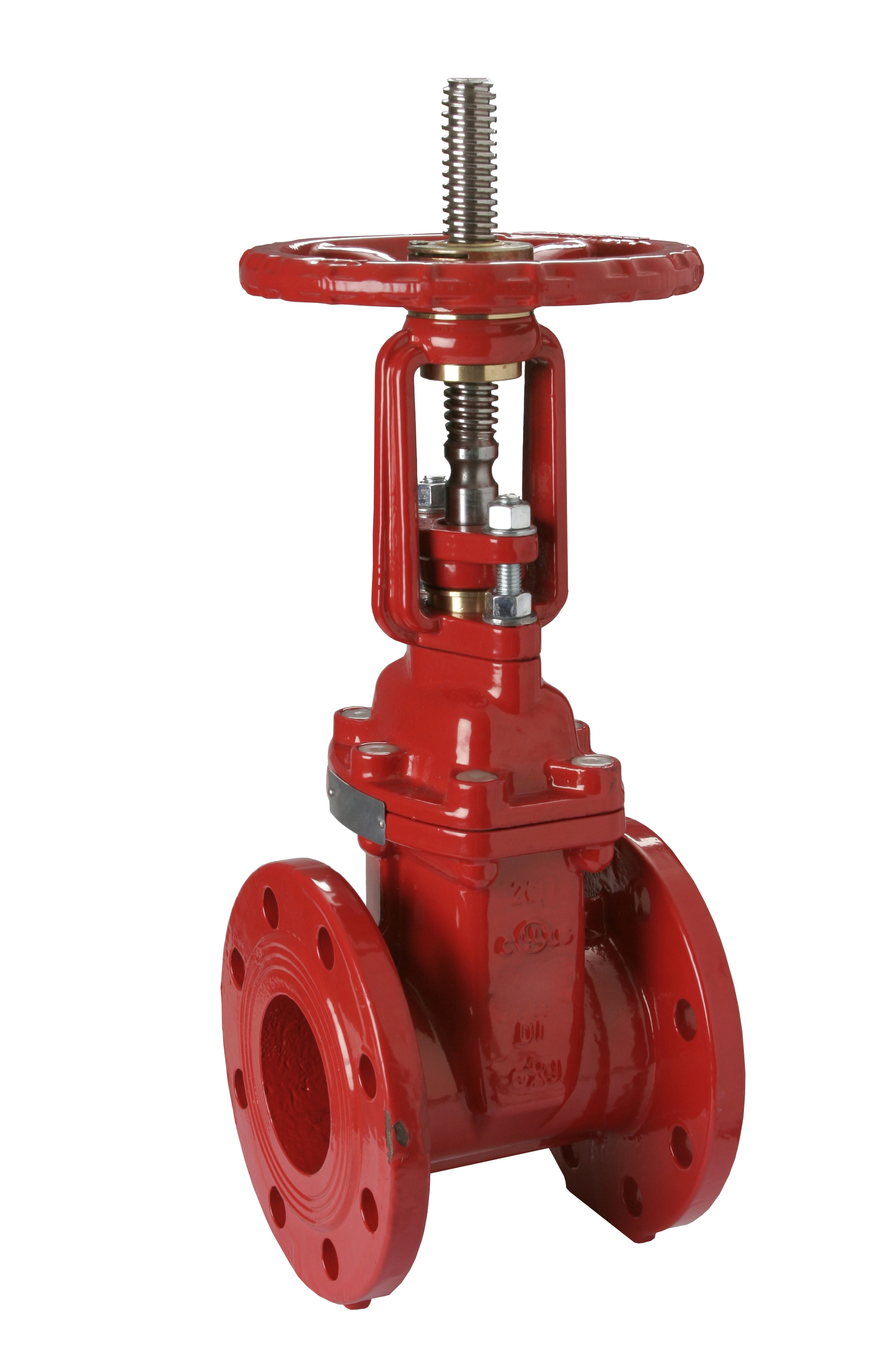

REF. 670 - GATE VALVE FLANGED (RS-RISING STEM-GROOVED)
Possibility of incorporating an opening control electronic device, 6VSWITC2 reference.
Contact us
We will contact you as soon as possible
Specifications
| Reference | Inch Ø 1 | DN 1 | Out Ø (mm) |
|---|---|---|---|
| 6V670208 | 2" | 50 | 60.3 |
| 6V67020B | 2 1/2" | 65 | 76.1 |
| 6V67020A | 3" | 80 | 88.9 |
| 6V67020C | 4" | 100 | 114.3 |
| 6V67020H | 5" | 125 | 139.7 |
| 6V67020E | 6" | 150 | 168.3 |
| 6V67020M | 8" | 200 | 219.1 |
| 6V67020N | 10" | 250 | 273.0 |
| 6V67020Q | 12" | 300 | 329.9 |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
| Document | Type | Language | File size |
|---|---|---|---|
| FT RANHURADO REF. 670.pdf | Data Sheet | PT | 755,21 KB |
| DS GROOVED REF. 670.pdf | Data Sheet | EN | 753,77 KB |
| FT RANURADO REF. 670.pdf | Data Sheet | ES | 753,77 KB |
| FT FLANGIATA REF. 670.pdf | Data Sheet | IT | 755,80 KB |
| VdS ATUSA ABSPERRSCHIEBER FIG. 670.pdf | Product Certificate | DE | 198,99 KB |
| VdS ATUSA GATE VALVE FIG. 670.pdf | Product Certificate | EN | 198,99 KB |
| FM ATUSA GATE VALVES OSY & NRS.pdf | Product Certificate | EN | 196,75 KB |
| UL ATUSA GROOVED GATE VALVES.pdf | Product Certificate | EN | 178,46 KB |
| IMAGE HQ GS-670.jpg | HQ Image | 1,43 MB |
