Specifications
| Reference | Inch Ø 1 | Inch Ø 2 | DN 1 | DN 2 | Out Ø (mm) | Out Ø (mm) | Minimum Quantity | Finish |
|---|---|---|---|---|---|---|---|---|

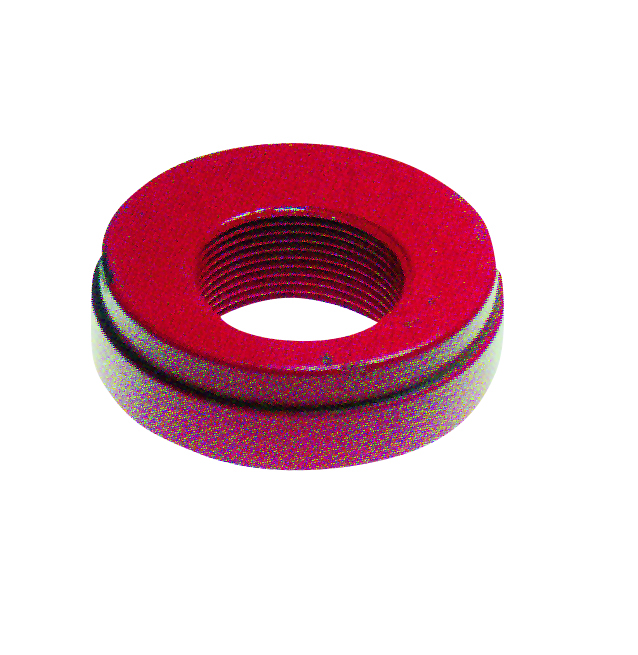

| 631502B8 | 2 1/2" | 2" | 65 | 50 | 76.1 | 60.3 | 52 | Red |

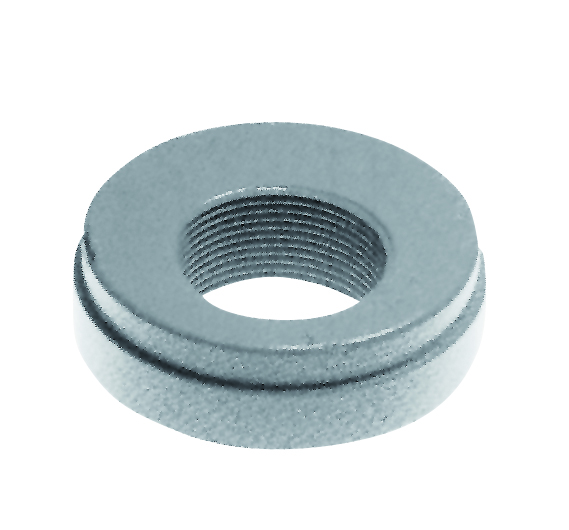

| 631505B8 | 3 1/2" | 2" | 65 | 50 | 76.1 | 60.3 | 52 | Galvanized |
| 631502A8 | 3" | 2" | 80 | 50 | 88.9 | 60.3 | 36 | Red |
| 631505A8 | 3" | 2" | 80 | 50 | 88.9 | 60.3 | 36 | Galvanized |
| 631502C8 | 4" | 2" | 100 | 50 | 114.3 | 60.3 | 20 | Red |
| 631505C8 | 4" | 2" | 100 | 50 | 114.3 | 60.3 | 20 | Galvanized |
| 631502H8 | 5" | 2" | 125 | 50 | 139.7 | 60.3 | 12 | Red |
| 631505H8 | 5" | 2" | 125 | 50 | 139.7 | 60.3 | 12 | Galvanized |
| 631502K8 | 6 1/2" O.D. | 2" | 150 | 50 | 165.1 | 60.3 | 10 | Red |
| 631505K8 | 6 1/2" O.D. | 2" | 150 | 50 | 165.1 | 60.3 | 10 | Galvanized |
| 631502E8 | 6" | 2" | 150 | 50 | 168.3 | 60.3 | 10 | Red |
| 631505E8 | 6" | 2" | 150 | 50 | 168.3 | 60.3 | 10 | Galvanized |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
