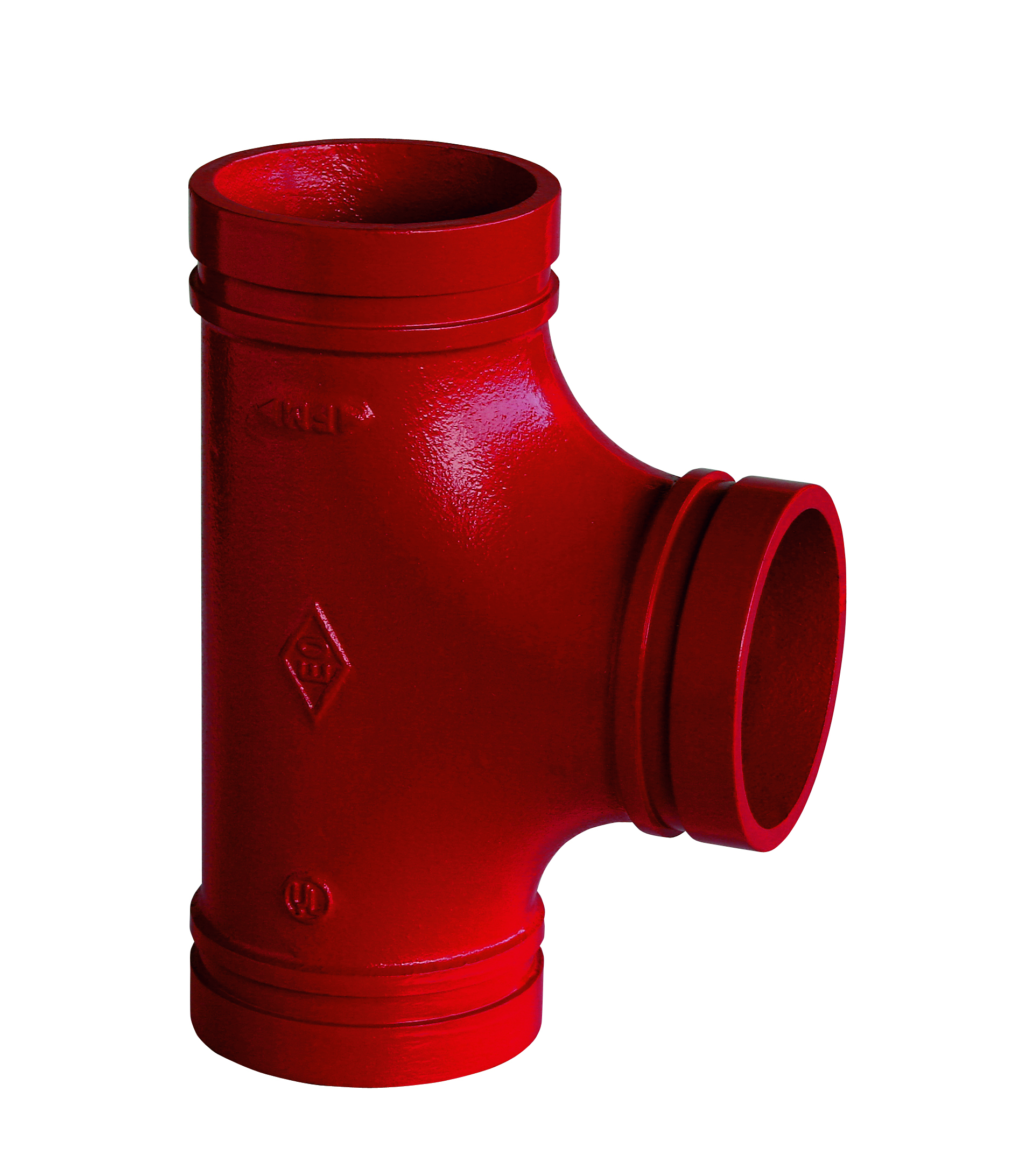

FIG. 130 - TEE

We will contact you as soon as possible

Specifications

Search term

Inch Ø 1

DN 1

Out Ø (mm)

Minimum Quantity

Finish

Reference	Inch Ø 1	DN 1	Out Ø (mm)	Minimum Quantity	Finish
61300205	1"	25	33.7	42	Red
61300505	1"	25	33.7	42	Galvanized
61300206	1 1/4"	32	42.4	22	Red
61300506	1 1/4"	32	42.4	22	Galvanized
61300207	1 1/2"	40	48.3	18	Red
61300507	1 1/2"	40	48.3	18	Galvanized
61300208	2"	50	60.3	8	Red
61300508	2"	50	60.3	8	Galvanized
6130020B	2 1/2"	65	76.1	7	Red
6130050B	2 1/2"	65	76.1	7	Galvanized
6130020A	3"	80	88.9	5	Red
6130050A	3"	80	88.9	5	Galvanized
6130020C	4"	100	114.3	3	Red
6130050C	4"	100	114.3	3	Galvanized
6130020H	5"	125	139.7	1	Red
6130050H	5"	125	139.7	1	Galvanized
6130020K	6 1/2" O.D.	150	165.1	1	Red
6130050K	6 1/2" O.D.	150	165.1	1	Galvanized
6130020E	6"	150	168.3	2	Red
6130050E	6"	150	168.3	2	Galvanized
6130020M	8"	200	219.1	1	Red
6130050M	8"	200	219.1	1	Galvanized
6130020N	10"	250	273.0	1	Red
6130050N	10"	250	273.0	1	Galvanized
6130020Q	12"	300	323.9	1	Red
6130050Q	12"	300	323.9	1	Galvanized

Note: due to the constant development of our products, the supplied data can be altered without prior notice.

Document	Type	Language	File size
DS FIG. 130 GROOVED.pdf	Data Sheet	EN	458,80 KB
FT RAINURÉ FIG. 130.pdf	Data Sheet	FR	456,85 KB
FT RANURADO FIG. 130.pdf	Data Sheet	ES	458,80 KB
FT RANHURADO FIG. 130.pdf	Data Sheet	PT	459,50 KB
FT SCANALATO FIG. 130.pdf	Data Sheet	IT	457,39 KB
VdS ATUSA GROOVED FITTINGS.pdf	Product Certificate	EN	381,47 KB
VdS ATUSA NUT SYSTEM FITTINGS.pdf	Product Certificate	DE	381,47 KB
IMAGE HQ GS-130-G.jpg	HQ Image		973,21 KB
IMAGE HQ GS-130-R.jpg	HQ Image		2,60 MB
TA nº 8 - RANURADO - LOGITUD EQUIVALENTE DE TUBERIA.pdf	Technical Articles	ES	355,21 KB
TA nº 8 - GROOVED - EQUIVALENT PIPE LENGHT.pdf	Technical Articles	EN	355,21 KB
TA nº 8 - RANHURADO - COMPRIMENTO EQUIVALENTE.pdf	Technical Articles	PT	1,63 MB
