Specifications
| Reference | Inch Ø 1 | Inch Ø 2 | DN 1 | DN 2 | Out Ø (mm) | Out Ø (mm) | Minimum Quantity | Finish |
|---|---|---|---|---|---|---|---|---|
| 6FR2G287 | 2" | 1 1/2" | 50 | 40 | 60.3 | 48.3 | 16 | Red |
| 6FR2G587 | 2" | 1 1/2" | 50 | 40 | 60.3 | 48.3 | 16 | Galvanized |
| 6FR2G2B8 | 2 1/2" | 2" | 65 | 50 | 76.1 | 60.3 | 12 | Red |
| 6FR2G5B8 | 2 1/2" | 2" | 65 | 50 | 76.1 | 60.3 | 12 | Galvanized |
| 6FR2G2A8 | 3" | 2" | 80 | 50 | 88.9 | 60.3 | 16 | Red |
| 6FR2G5A8 | 3" | 2" | 80 | 50 | 88.9 | 60.3 | 16 | Galvanized |
| 6FR2G2AB | 3" | 2 1/2" | 80 | 65 | 88.9 | 76.1 | 16 | Red |
| 6FR2G5AB | 3" | 2 1/2" | 80 | 65 | 88.9 | 76.1 | 16 | Galvanized |
| 6FR2G2C8 | 4" | 2" | 100 | 50 | 114.3 | 60.3 | 8 | Red |
| 6FR2G5C8 | 4" | 2" | 100 | 50 | 114.3 | 60.3 | 8 | Galvanized |
| 6FR2G2CB | 4" | 2 1/2" | 100 | 65 | 114.3 | 76.1 | 8 | Red |
| 6FR2G5CB | 4" | 2 1/2" | 100 | 65 | 114.3 | 76.1 | 8 | Galvanized |
| 6FR2G2CA | 4" | 3" | 100 | 80 | 114.3 | 88.9 | 8 | Red |
| 6FR2G5CA | 4" | 3" | 100 | 80 | 114.3 | 88.9 | 8 | Galvanized |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
| Document | Type | Language | File size |
|---|---|---|---|
| FT SCANALATO FR.pdf | Data Sheet | IT | 515,31 KB |
| FT RAINURÉ FR.pdf | Data Sheet | FR | 514,68 KB |
| FT RANHURADO FR.pdf | Data Sheet | PT | 516,48 KB |
| FT RANURADO FR.pdf | Data Sheet | ES | 517,16 KB |
| DS FR GROOVED.pdf | Data Sheet | EN | 517,16 KB |
| FM ATUSA REDUCED COUPLING FIG. FR.pdf | Product Certificate | EN | 139,39 KB |
| VdS ATUSA REDUZIERKUPPLUNG FIG. FR.pdf | Product Certificate | DE | 431,85 KB |
| VdS ATUSA PIPE COUPLING FIG. FR.pdf | Product Certificate | EN | 431,85 KB |

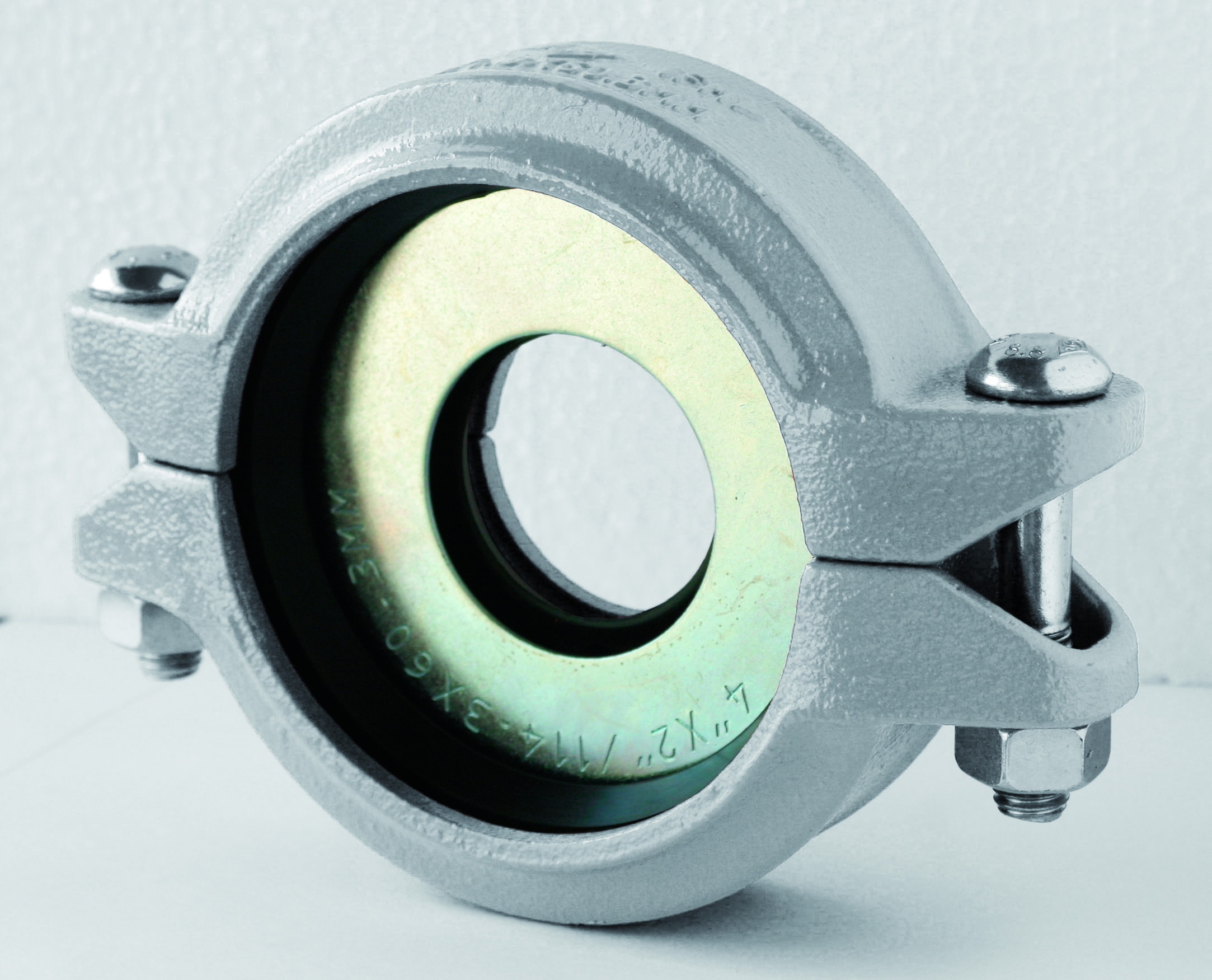

| IMAGE HQ GS-FR-G.jpg | HQ Image | 2,62 MB | |

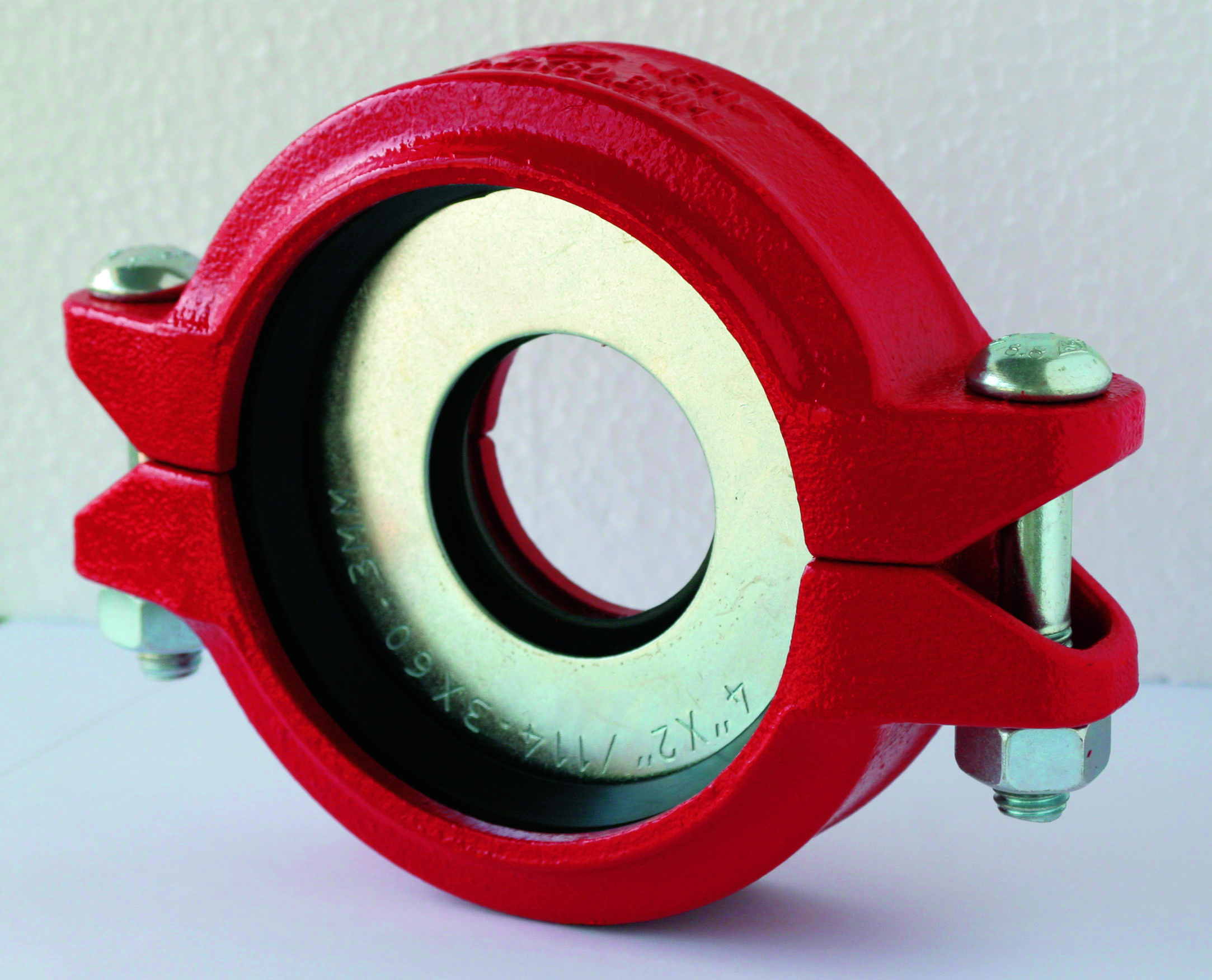

| IMAGE HQ GS-FR-R.jpg | HQ Image | 2,27 MB | |
| TA nº 4 -RANHURADO - INSTALAÇÃO FIG. FR.pdf | Technical Articles | PT | 576,04 KB |
| TA nº 4 - RANURADO - INSTALACIÓN FIG. FR.pdf | Technical Articles | ES | 572,91 KB |
| TA nº 4 - GROOVED - FIG. FR INSTALLATION.pdf | Technical Articles | EN | 572,91 KB |
