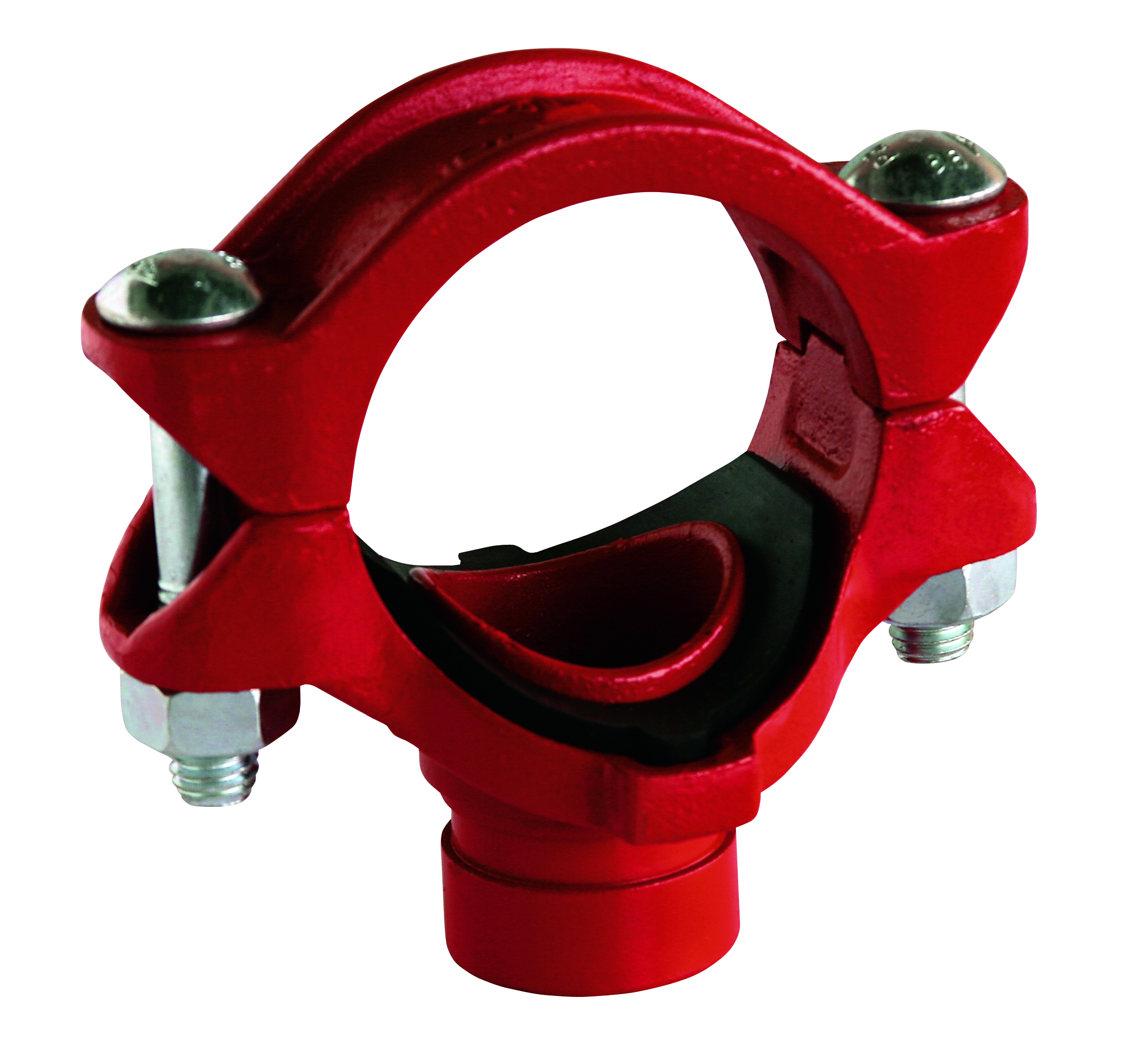

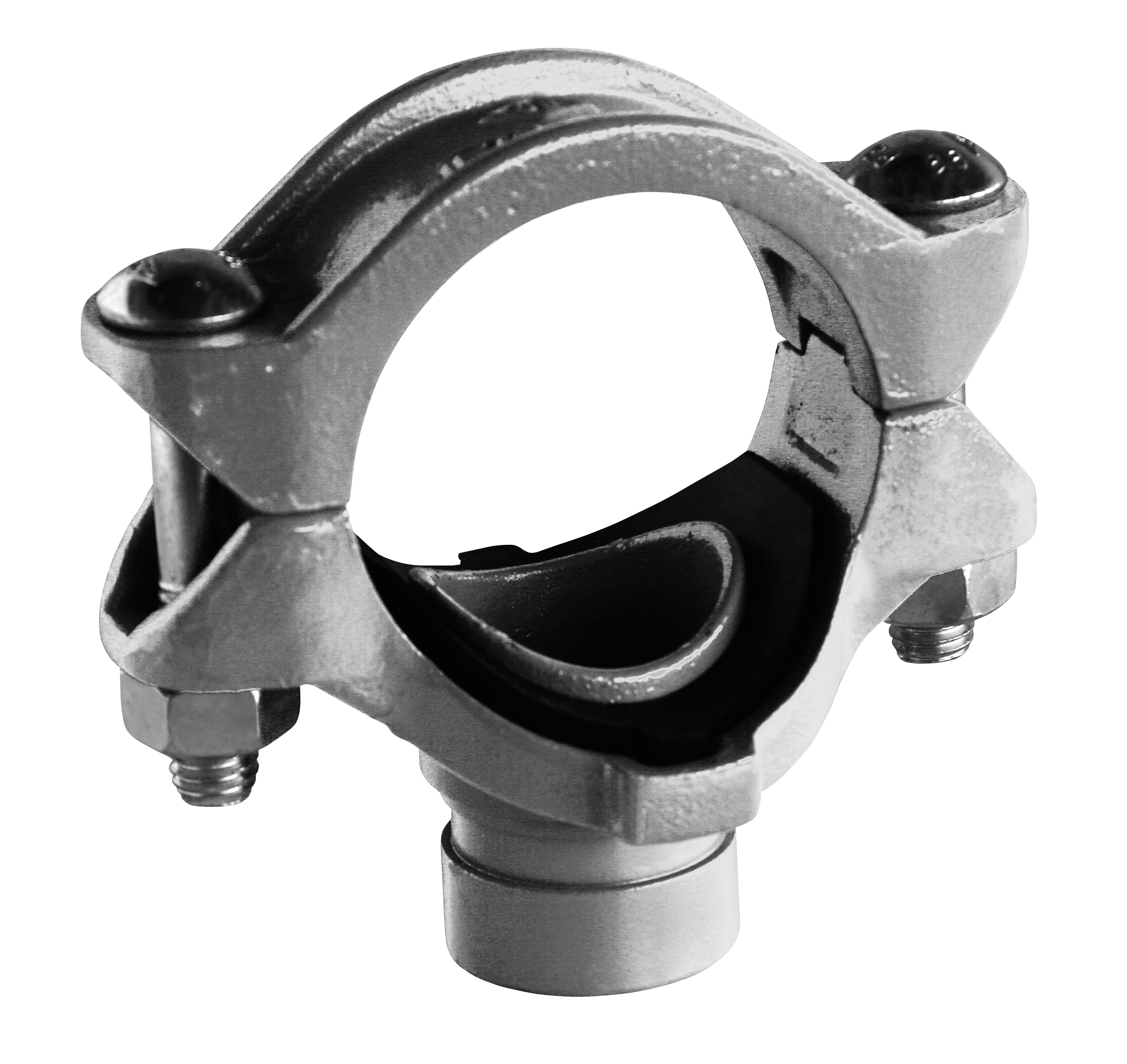

Specifications
| Reference | Inch Ø 1 | Inch Ø 2 | DN 1 | DN 2 | Out Ø (mm) | Out Ø (mm) | Minimum Quantity | Finish |
|---|---|---|---|---|---|---|---|---|
| 6DS2G286 | 2" | 1 1/4" | 50 | 32 | 60.3 | 42.4 | 15 | Red |
| 6DS2G586 | 2" | 1 1/4" | 50 | 32 | 60.3 | 42.4 | 15 | Galvanized |
| 6DS2G287 | 2" | 1 1/2" | 50 | 40 | 60.3 | 48.3 | 15 | Red |
| 6DS2G587 | 2" | 1 1/2" | 50 | 40 | 60.3 | 48.3 | 15 | Galvanized |
| 6DS2G2B5 | 2 1/2" | 1" | 65 | 25 | 76.1 | 33.7 | 8 | Red |
| 6DS2G5B5 | 2 1/2" | 1" | 65 | 25 | 76.1 | 33.7 | 8 | Galvanized |
| 6DS2G2B6 | 2 1/2" | 1 1/4" | 65 | 32 | 76.1 | 42.4 | 8 | Red |
| 6DS2G5B6 | 2 1/2" | 1 1/4" | 65 | 32 | 76.1 | 42.4 | 8 | Galvanized |
| 6DS2G2B7 | 2 1/2" | 1 1/2" | 65 | 40 | 76.1 | 48.3 | 8 | Red |
| 6DS2G5B7 | 2 1/2" | 1 1/2" | 65 | 40 | 76.1 | 48.3 | 8 | Galvanized |
| 6DS2G2A5 | 3" | 1" | 80 | 25 | 88.9 | 33.7 | 8 | Red |
| 6DS2G5A5 | 3" | 1" | 80 | 25 | 88.9 | 33.7 | 8 | Galvanized |
| 6DS2G2A6 | 3" | 1 1/4" | 80 | 32 | 88.9 | 42.4 | 8 | Red |
| 6DS2G5A6 | 3" | 1 1/4" | 80 | 32 | 88.9 | 42.4 | 8 | Galvanized |
| 6DS2G2A7 | 3" | 1 1/2" | 80 | 40 | 88.9 | 48.3 | 8 | Red |
| 6DS2G5A7 | 3" | 1 1/2" | 80 | 40 | 88.9 | 48.3 | 8 | Galvanized |
| 6DS2G2A8 | 3" | 2" | 80 | 50 | 88.9 | 60.3 | 5 | Red |
| 6DS2G5A8 | 3" | 2" | 80 | 50 | 88.9 | 60.3 | 5 | Galvanized |
| 6DS2G2C6 | 4" | 1 1/4" | 100 | 32 | 114.3 | 42.4 | 12 | Red |
| 6DS2G5C6 | 4" | 1 1/4" | 100 | 32 | 114.3 | 42.4 | 12 | Galvanized |
| 6DS2G2C7 | 4" | 1 1/2" | 100 | 40 | 114.3 | 48.3 | 10 | Red |
| 6DS2G5C7 | 4" | 1 1/2" | 100 | 40 | 114.3 | 48.3 | 10 | Galvanized |
| 6DS2G2C8 | 4" | 2" | 100 | 50 | 114.3 | 60.3 | 10 | Red |
| 6DS2G5C8 | 4" | 2" | 100 | 50 | 114.3 | 60.3 | 10 | Galvanized |
| 6DS2G2CB | 4" | 2 1/2" | 100 | 65 | 114.3 | 76.1 | 8 | Red |
| 6DS2G5CB | 4" | 2 1/2" | 100 | 65 | 114.3 | 76.1 | 8 | Galvanized |
| 6DS2G2CA | 4" | 3" | 100 | 80 | 114.3 | 88.9 | 8 | Red |
| 6DS2G5CA | 4" | 3" | 100 | 80 | 114.3 | 88.9 | 8 | Galvanized |
| 6DS2G2H6 | 5" | 1 1/4" | 125 | 32 | 139.7 | 42.4 | 6 | Red |
| 6DS2G5H6 | 5" | 1 1/4" | 125 | 32 | 139.7 | 42.4 | 6 | Galvanized |
| 6DS2G2H8 | 5" | 2" | 125 | 50 | 139.7 | 60.3 | 4 | Red |
| 6DS2G5H8 | 5" | 2" | 125 | 50 | 139.7 | 60.3 | 4 | Galvanized |
| 6DS2G2HB | 5" | 2 1/2" | 125 | 65 | 139.7 | 76.1 | 4 | Red |
| 6DS2G5HB | 5" | 2 1/2" | 125 | 65 | 139.7 | 76.1 | 4 | Galvanized |
| 6DS2G2HA | 5" | 3" | 125 | 80 | 139.7 | 88.9 | 4 | Red |
| 6DS2G5HA | 5" | 3" | 125 | 80 | 139.7 | 88.9 | 4 | Galvanized |
| 6DS2G2K8 | 6 1/2" | 2" | 150 | 50 | 165.1 | 60.3 | 5 | Red |
| 6DS2G5K8 | 6 1/2" O.D. | 2" | 150 | 50 | 165.1 | 60.3 | 5 | Galvanized |
| 6DS2G2KB | 6 1/2" | 2 1/2" | 150 | 65 | 165.1 | 76.1 | 5 | Red |
| 6DS2G5KB | 6 1/2" O.D. | 2 1/2" | 150 | 65 | 165.1 | 76.1 | 5 | Galvanized |
| 6DS2G2E6 | 6" | 1 1/4" | 150 | 32 | 168.3 | 42.4 | 5 | Red |
| 6DS2G5E6 | 6" | 1 1/4" | 150 | 32 | 168.3 | 42.4 | 5 | Galvanized |
| 6DS2G2E7 | 6" | 1 1/2" | 150 | 40 | 168.3 | 48.3 | 5 | Red |
| 6DS2G5E7 | 6" | 1 1/2" | 150 | 40 | 168.3 | 48.3 | 5 | Galvanized |
| 6DS2G2E8 | 6" | 2" | 150 | 50 | 168.3 | 60.3 | 5 | Red |
| 6DS2G5E8 | 6" | 2" | 150 | 50 | 168.3 | 60.3 | 5 | Galvanized |
| 6DS2G2EB | 6" | 2 1/2" | 150 | 65 | 168.3 | 76.1 | 4 | Red |
| 6DS2G5EB | 6" | 2 1/2" | 150 | 65 | 168.3 | 76.1 | 4 | Galvanized |
| 6DS2G2EA | 6" | 3" | 150 | 80 | 168.3 | 88.9 | 4 | Red |
| 6DS2G5EA | 6" | 3" | 150 | 80 | 168.3 | 88.9 | 4 | Galvanized |
| 6DS2G2EC | 6" | 4" | 150 | 100 | 168.3 | 114.3 | 4 | Red |
| 6DS2G5EC | 6" | 4" | 150 | 100 | 168.3 | 114.3 | 4 | Galvanized |
| 6DS2G2M8 | 8" | 2" | 200 | 50 | 219.1 | 60.3 | 3 | Red |
| 6DS2G5M8 | 8" | 2" | 200 | 50 | 219.1 | 60.3 | 3 | Galvanized |
| 6DS2G2MB | 8" | 2 1/2" | 200 | 65 | 219.1 | 76.1 | 3 | Red |
| 6DS2G5MB | 8" | 2 1/2" | 200 | 65 | 219.1 | 76.1 | 3 | Galvanized |
| 6DS2G2MA | 8" | 3" | 200 | 80 | 219.1 | 88.9 | 3 | Red |
| 6DS2G5MA | 8" | 3" | 200 | 80 | 219.1 | 88.9 | 3 | Galvanized |
| 6DS2G2MC | 8" | 4" | 200 | 100 | 219.1 | 114.3 | 3 | Red |
| 6DS2G5MC | 8" | 4" | 200 | 100 | 219.1 | 114.3 | 3 | Galvanized |
| 6DS2G2NC | 10" | 4" | 250 | 100 | 273.0 | 114.4 | 3 | Red |
| 6DS2G5NC | 10" | 4" | 250 | 100 | 273.0 | 114.4 | 3 | Galvanized |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
