DS1 - THREADED MECHANICAL TEE


Contact us

We will contact you as soon as possible

Specifications


Reference Inch Ø 1 Inch Ø 2 DN 1 DN 2 Out Ø (mm) Out Ø (mm) Minimum Quantity Finish

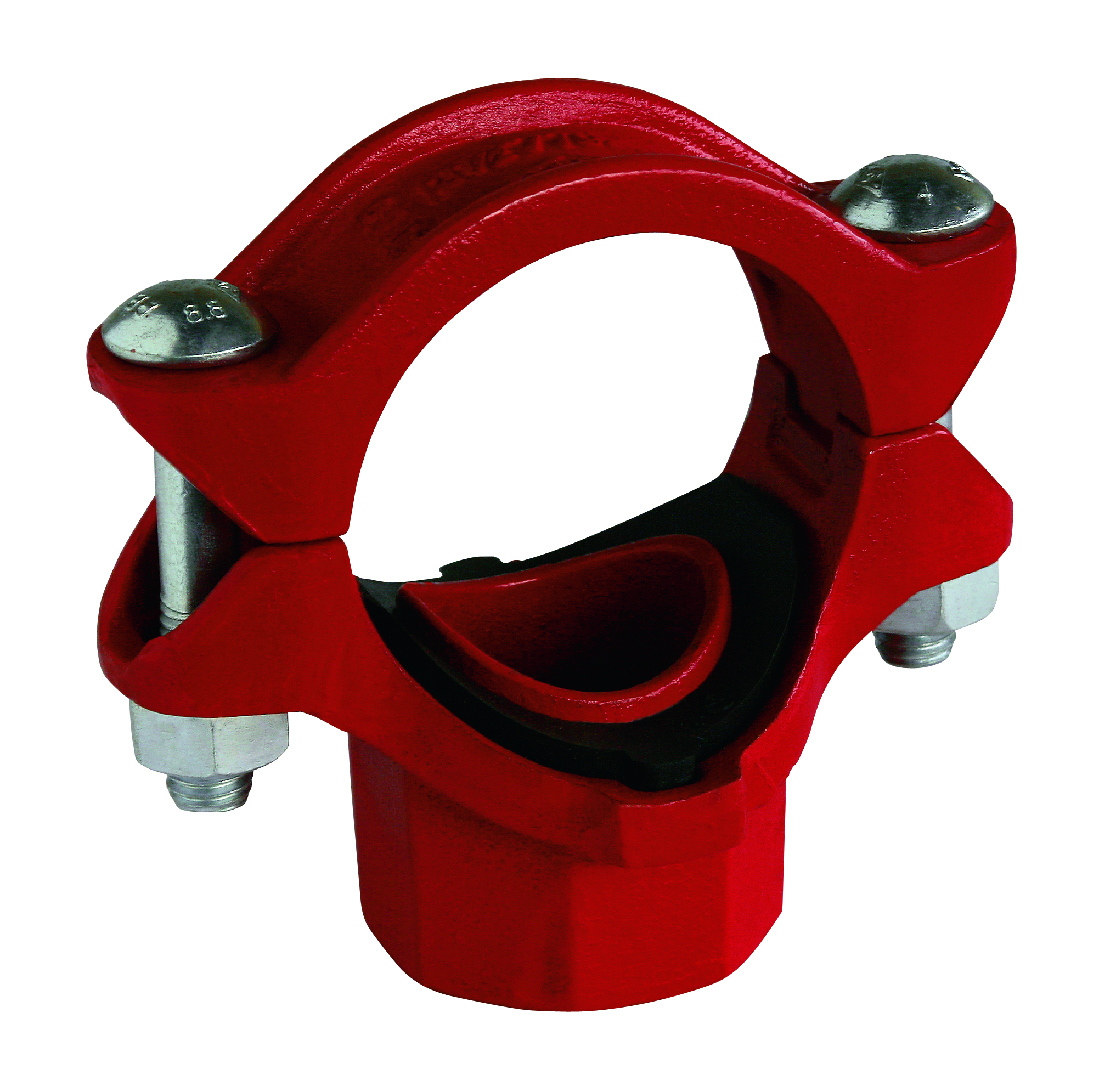

6DS2T265 1 1/4" 1" 32 25 42.4 33.7 30 Red

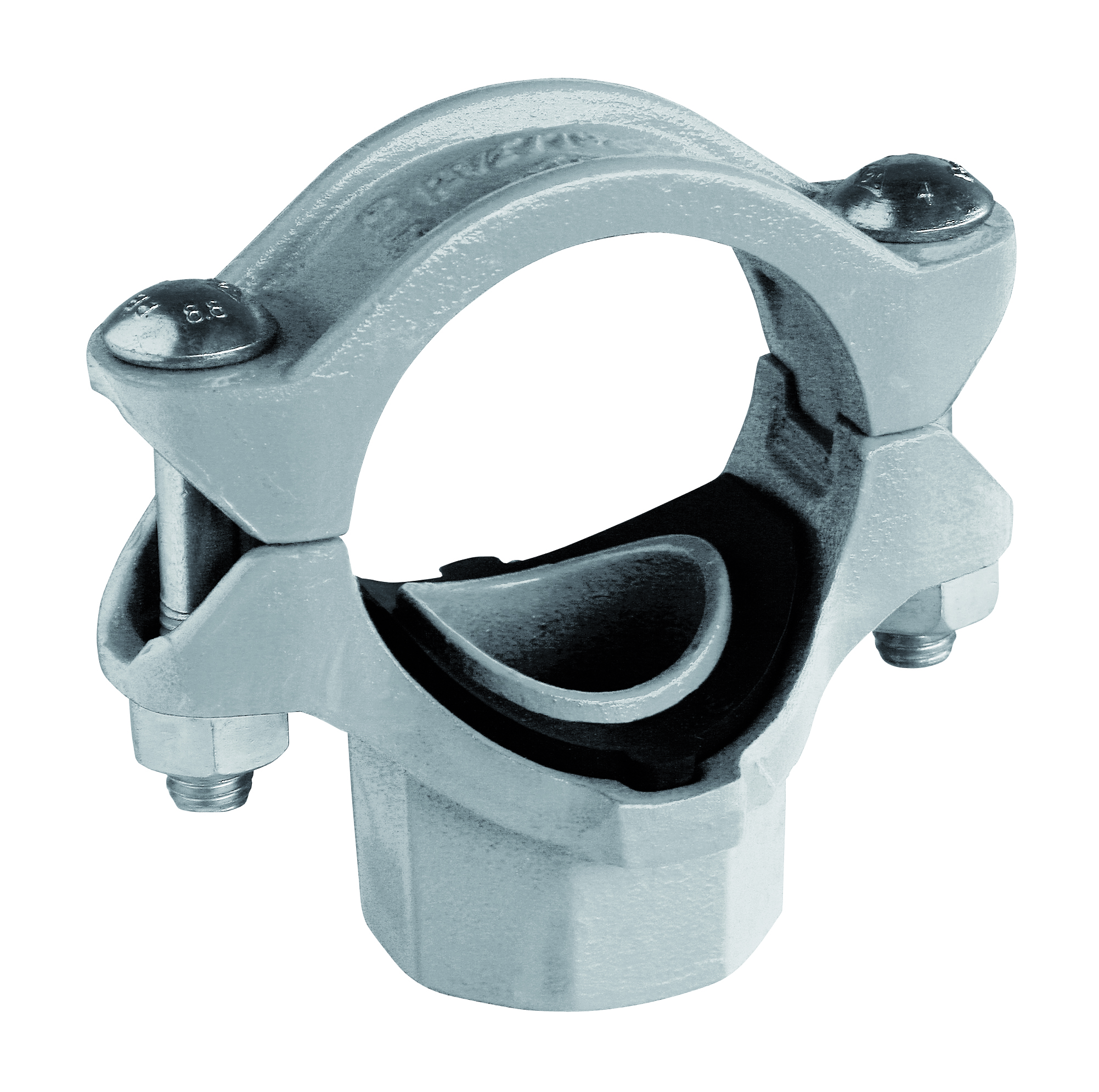

6DS2T565 1 1/4" 1" 32 25 42.4 33.7 30 Galvanized
6DS2T275 1 1/2" 1" 40 25 48.3 33.7 30 Red
6DS2T575 1 1/2" 1" 40 25 48.3 33.7 30 Galvanized
6DS2T283 2" 1/2" 50 15 60.3 21.3 18 Red
6DS2T583 2" 1/2" 50 15 60.3 21.3 18 Galvanized
6DS2T284 2" 3/4" 50 20 60.3 26.9 18 Red
6DS2T584 2" 3/4" 50 20 60.3 26.9 18 Galvanized
6DS2T285 2" 1"/1" 50 25 60.3 33.7 18 Red
6DS2T585 2" 1" 50 25 60.3 33.7 18 Galvanized
6DS2T286 2" 1 1/4" 50 32 60.3 42.4 12 Red
6DS2T586 2" 1 1/4" 50 32 60.3 42.4 12 Galvanized
6DS2T287 2" 1 1/2" 50 40 60.3 48.3 15 Red
6DS2T587 2" 1 1/2" 50 40 60.3 48.3 15 Galvanized
6DS2T2B3 2 1/2" 1/2" 65 15 76.1 21.3 10 Red
6DS2T5B3 2 1/2" 1/2" 65 15 76.1 21.3 10 Galvanized
6DS2T2B4 2 1/2" 3/4" 65 20 76.1 26.9 10 Red
6DS2T5B4 2 1/2" 3/4" 65 20 76.1 26.9 10 Galvanized
6DS2T2B5 2 1/2" 1" 65 25 76.1 33.7 10 Red
6DS2T5B5 2 1/2" 1" 65 25 76.1 33.7 10 Galvanized
6DS2T2B6 2 1/2" 1 1/4" 65 32 76.1 42.4 8 Red
6DS2T5B6 2 1/2" 1 1/4" 65 32 76.1 42.4 8 Galvanized
6DS2T2B7 2 1/2" 1 1/2" 65 40 76.1 48.3 8 Red
6DS2T5B7 2 1/2" 1 1/2" 65 40 76.1 48.3 8 Galvanized
6DS2T2A3 3" 1/2" 80 15 88.9 21.3 6 Red
6DS2T5A3 3" 1/2" 80 15 88.9 21.3 6 Galvanized
6DS2T2A4 3" 3/4" 80 20 88.9 26.9 6 Red
6DS2T5A4 3" 3/4" 80 20 88.9 26.9 6 Galvanized
6DS2T2A5 3" 1"/1" 80 25 88.9 33.7 6 Red
6DS2T5A5 3" 1" 80 25 88.9 33.7 6 Galvanized
6DS2T2A6 3" 1 1/4" 80 32 88.9 42.4 8 Red
6DS2T5A6 3" 1 1/4" 80 32 88.9 42.4 8 Galvanized
6DS2T2A7 3" 1 1/2" 80 40 88.9 48.3 8 Red
6DS2T5A7 3" 1 1/2" 80 40 88.9 48.3 8 Galvanized
6DS2T2A8 3" 2" 80 50 88.9 60.3 5 Red
6DS2T5A8 3" 2" 80 50 88.9 60.3 5 Galvanized
6DS2T2C3 4" 1/2" 100 15 114.3 21.3 12 Red
6DS2T5C3 4" 1/2" 100 15 114.3 21.3 12 Galvanized
6DS2T2C4 4" 3/4" 100 20 114.3 26.9 12 Red
6DS2T5C4 4" 3/4" 100 20 114.3 26.9 12 Galvanized
6DS2T2C5 4" 1" 100 25 114.3 33.7 12 Red
6DS2T5C5 4" 1" 100 25 114.3 33.7 12 Galvanized
6DS2T2C6 4" 1 1/4" 100 32 114.3 42.4 10 Red
6DS2T5C6 4" 1 1/4" 100 32 114.3 42.4 10 Galvanized
6DS2T2C7 4" 1 1/2" 100 40 114.3 48.3 10 Red
6DS2T5C7 4" 1 1/2" 100 40 114.3 48.3 10 Galvanized
6DS2T2C8 4" 2" 100 50 114.3 60.3 10 Red
6DS2T5C8 4" 2" 100 50 114.3 60.3 10 Galvanized
6DS2T2CA 4" 3" 100 80 114.3 88.9 6 Red
6DS2T5CA 4" 3" 100 80 114.3 88.9 6 Galvanized
6DS2T2CB 4" 2 1/2" 100 65 114.3 76.1 8 Red
6DS2T5CB 4" 2 1/2" 100 65 114.3 76.1 8 Galvanized
6DS2T2H5 5" 1" 125 25 139.7 33.7 6 Red
6DS2T5H5 5" 1" 125 25 139.7 33.7 6 Galvanized
6DS2T2H8 5" 2" 125 50 139.7 60.3 4 Red
6DS2T5H8 5" 2" 125 50 139.7 60.3 4 Galvanized
6DS2T2K7 6 1/2" O.D. 1 1/2" 150 40 165.1 48.3 5 Red
6DS2T5K7 6 1/2" O.D. 1 1/2" 150 40 165.1 48.3 5 Galvanized
6DS2T2K8 6 1/2" O.D. 2" 150 50 165.1 60.3 5 Red
6DS2T5K8 6 1/2" O.D. 2" 150 50 165.1 60.3 5 Galvanized
6DS2T2KB 6 1/2" O.D. 2 1/2" 150 65 165.1 76.1 5 Red
6DS2T5KB 6 1/2" O.D. 2 1/2" 150 65 165.1 76.1 5 Galvanized
6DS2T2E6 6" 1 1/4" 150 32 168.3 42.4 5 Red
6DS2T5E6 6" 1 1/4" 150 32 168.3 42.4 5 Galvanized
6DS2T2E7 6" 1 1/2" 150 40 168.3 48.3 5 Red
6DS2T5E7 6" 1 1/2" 150 40 168.3 48.3 5 Galvanized
6DS2T2E8 6" 2" 150 50 168.3 60.3 5 Red
6DS2T5E8 6" 2" 150 50 168.3 60.3 5 Galvanized
6DS2T2EA 6" 3" 150 80 168.3 88.9 4 Red
6DS2T5EA 6" 3" 150 80 168.3 88.9 4 Galvanized
6DS2T2M8 8" 2" 200 50 219.1 60.3 3 Red
6DS2T5M8 8" 2" 200 50 219.1 60.3 3 Galvanized
6DS2T2N8 10" 2" 250 50 273.0 60.3 4 Red
6DS2T5N8 10" 2" 250 50 273.0 60.3 4 Galvanized
6DS2T2NB 10" 2 1/2" 250 65 273.0 76.1 4 Red
6DS2T5NB 10" 2 1/2" 250 65 273.0 76.1 4 Galvanized
6DS2T2NA 10" 3" 250 80 273.0 88.9 3 Red
6DS2T5NA 10" 3" 250 80 273.0 88.9 3 Galvanized


Technical documentation

Note: due to the constant development of our products, the supplied data can be altered without prior notice.

Document Type Language File size
DS DS1 GROOVED.pdf Data Sheet EN 590,80 KB
FT RANHURADO DS1.pdf Data Sheet PT 591,17 KB
FT RANURADO DS1.pdf Data Sheet ES 590,80 KB
FT SCANALATO DS1.pdf Data Sheet IT 588,42 KB
FT RAINURÉ DS1.pdf Data Sheet FR 588,58 KB
VdS ATUSA ANBOHRSCHELLE FIG. DS1 / FIG. DS2.pdf Product Certificate DE 1,39 MB
VdS ATUSA OUTLET TEE FIG. DS1 / FIG. DS2.pdf Product Certificate EN 1,39 MB
FM ATUSA GROOVED OUTLET FIG. DS1 / DS2 / DA1.pdf Product Certificate EN 140,77 KB
IMAGE HQ GS-DS1-G.jpg HQ Image 2,52 MB
IMAGE HQ GS-DS1-R.jpg HQ Image 3,67 MB
TA nº 6 - RANHURADO - INSTALAÇÃO FIG. DS1-DS2.pdf Technical Articles PT 849,62 KB
TA nº 6 - RANURADO - INSTALACIÓN FIG. DS1-DS2.pdf Technical Articles ES 847,28 KB
TA nº 6 - GROOVED - INSTALLATION FIG. DS1-DS2.pdf Technical Articles EN 847,28 KB
TA nº 2 - RANURADO - TALADRADO DE TUBOS.pdf Technical Articles ES 1,71 MB
TA nº 2 - RANHURADO - FURAÇÃO DE TUBOS.pdf Technical Articles PT 1,71 MB
TA nº 2 - GROOVED - PIPE DRILLING.pdf Technical Articles EN 1,71 MB
TA nº 20 - FLOW COEFFICIENT Kv.pdf Technical Articles EN 8,48 MB
TA nº 20 - COEFICIENTE DE CAUDAL Kv.pdf Technical Articles ES 8,49 MB
TA nº 20 - COEFICIENTE DE CAUDAL Kv.pdf Technical Articles PT 8,48 MB
TA nº 15 - DIMENSIONADO DE INSTALACIÓN CON SPRINKLERS - EJEMPLO.pdf Technical Articles ES 7,77 MB
TA nº 15 - DIMENSIONAMENTO DE INSTALAÇÃO COM SPRINKLERS - EXEMPLO.pdf Technical Articles PT 7,07 MB
TA nº 26 - RED DE INCENDIO - ANÁLISIS ROSCADOS versus RANURADOS.pdf Technical Articles ES 9,44 MB
TA nº 26 - REDE DE INCÊNDIO - ANÁLISE ROSCADOS versus RANHURADOS.pdf Technical Articles PT 9,93 MB
TA nº 29 - RED DE INCENDIO CON SPRINKLERS - ANÁLISIS ROSCADOS versus RANURADOS.pdf Technical Articles ES 6,88 MB
TA nº 29 - REDE DE INCÊNDIO COM SPRINKLERS - ANÁLISE ROSCADOS versus RANHURADOS.pdf Technical Articles PT 7,15 MB
