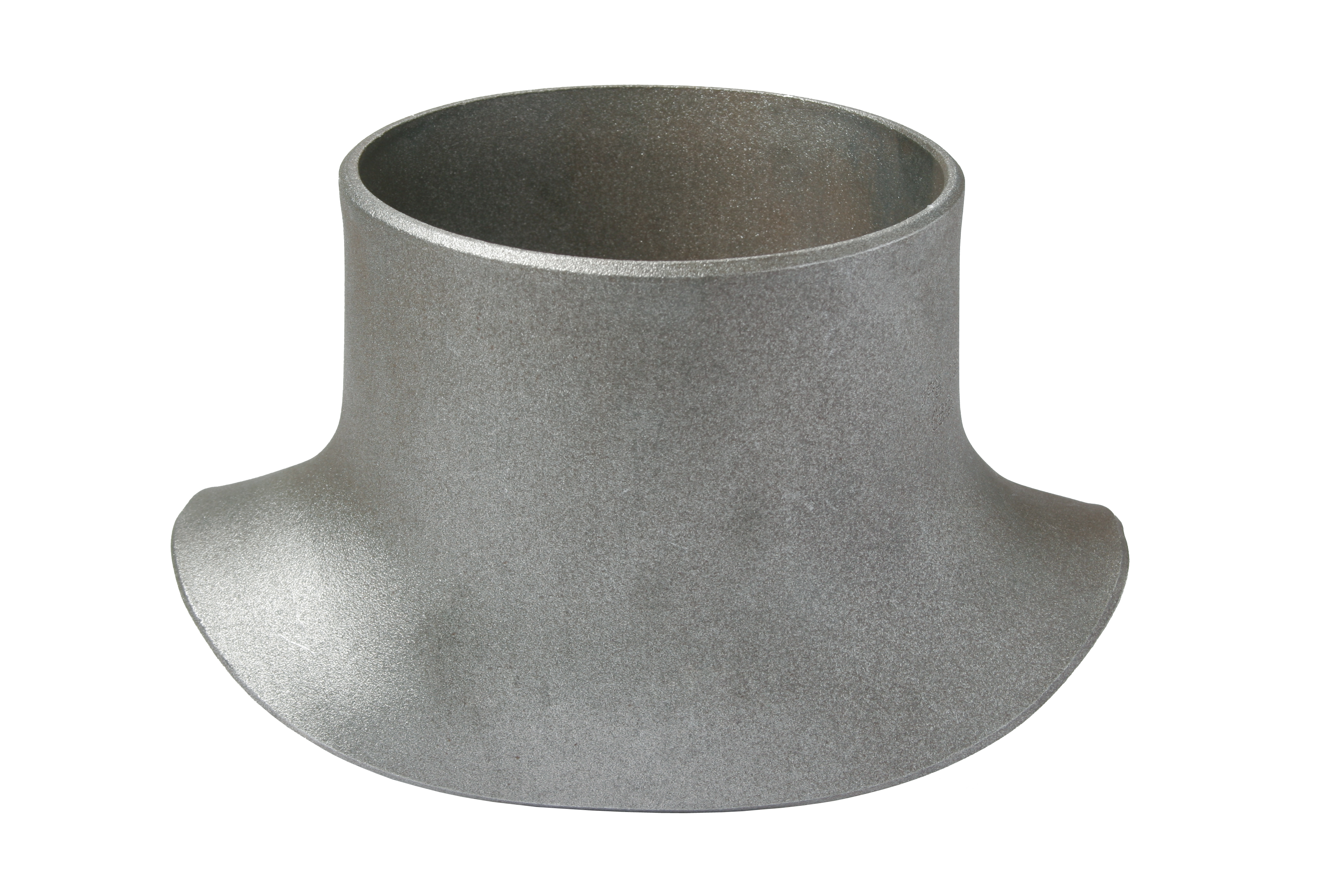

DIN 2618 ELBOW DERIVATION
According with DIN 2618 standard.
Contact us
We will contact you as soon as possible
Specifications
| Reference | Ø 1 (mm) |
|---|---|
| CDXXXX27 | 26.9 |
| CDXXXX33 | 33.7 |
| CDXXXX42 | 42.4 |
| CDXXXX48 | 48.3 |
| CDXXXX60 | 60.3 |
| CDXXXX70 | 70.0 |
| CDXXXX76 | 76.1 |
| CDXXXX88 | 88.9 |
| CDXXX101 | 101.6 |
| CDXXX108 | 108.0 |
| CDXXX114 | 114.3 |
| CDXXX133 | 133.0 |
| CDXXX139 | 139.7 |
| CDXXX159 | 159.0 |
| CDXXX168 | 168.3 |
| CDXXX193 | 193.7 |
| CDXXX219 | 219.1 |
| CDXXX273 | 273.0 |
| CDXXX323 | 323.9 |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
| Document | Type | Language | File size |
|---|---|---|---|
| IMAGE HQ CF-CDXX.jpg | HQ Image | 2,82 MB | |
| TA nº 12 - ACESSÓRIOS PARA SOLDAR TOPO A TOPO EN 10253-1.pdf | Technical Articles | PT | 2,18 MB |
| TA nº 12 - ACCESORIOS PARA SOLDAR A TOPE EN 10253-1.pdf | Technical Articles | EN - ES | 2,27 MB |
