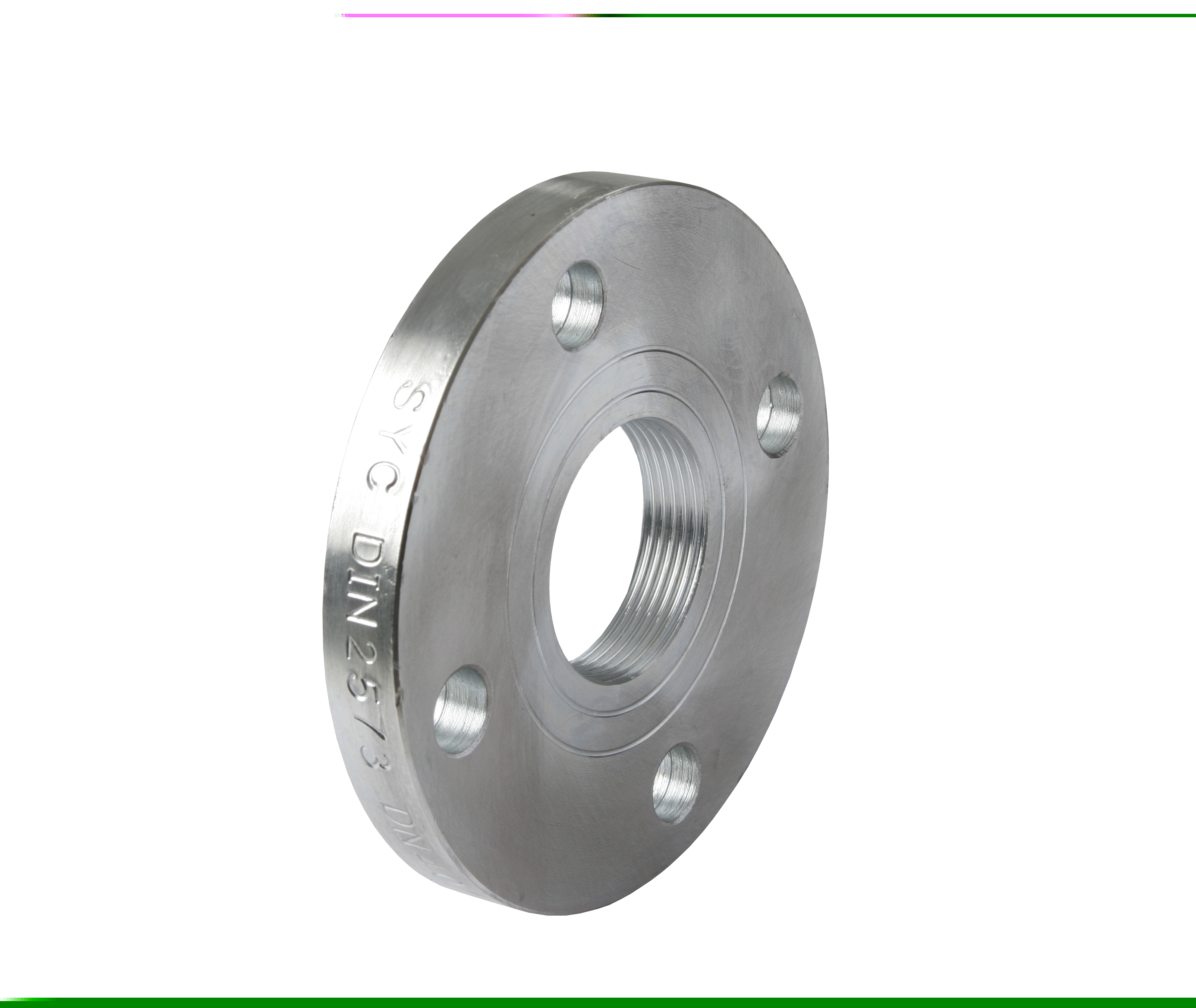

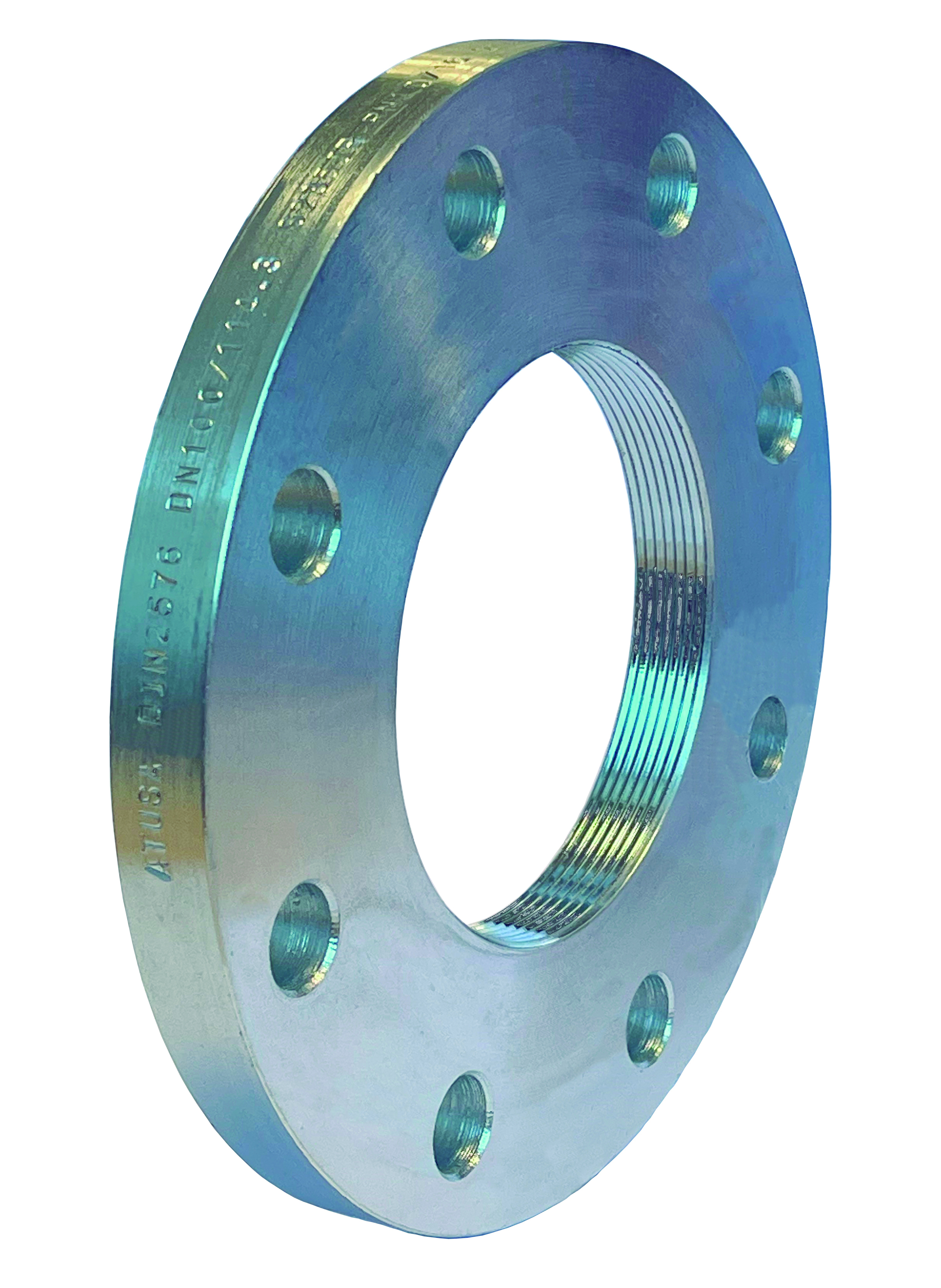

CARBON STEEL THREADED FLAT FLANGE ZINCATED

We will contact you as soon as possible

Related products

Search term

Inch Ø 1

Ø 1 (mm)

DN 1

Standard

Reference	Inch Ø 1	Ø 1 (mm)	DN 1	PN	Standard
F573O015	1/2"	21.3	15	6	DIN 2573
F576O015	1/2"	21.3	15	10/16	DIN 2576
F573O020	3/4"	26.9	20	6	DIN 2573
F576O020	3/4"	26.9	20	10/16	DIN 2576
F573O025	1"	33.7	25	6	DIN 2573
F576O025	1"	33.7	25	10/16	DIN 2576
F573O032	1 1/4"	42.4	32	6	DIN 2573
F576O032	1 1/4"	42.4	32	10/16	DIN 2576
F573O040	1 1/2"	48.3	40	6	DIN 2573
F576O040	1 1/2"	48.3	40	10/16	DIN 2576
F573O050	2"	60.3	50	6	DIN 2573
F576O050	2"	60.3	50	10/16	DIN 2576
F573O065	2 1/2"	76.1	65	6	DIN 2573
F576O065	2 1/2"	76.1	65	10/16	DIN 2576
F573O080	3"	88.9	80	6	DIN 2573
F576O080	3"	88.9	80	10	DIN 2576
F576O086	3"	88.9	80	16	DIN 2576
F573O100	4"	114.3	100	6	DIN 2573
F576O100	4"	114.3	100	10/16	DIN 2576
F573O125	5"	139.7	125	6	DIN 2573
F576O125	5"	139.7	125	10/16	DIN 2576
F573O150	6"	168.3	150	6	DIN 2573
F576O150	6"	168.3	150	10/16	DIN 2576
F576O750
F576O810
F576O865
F576O880
F576O910
F576O980
F576OA10

Note: due to the constant development of our products, the supplied data can be altered without prior notice.

Document	Type	Language	File size
FT BRIDA ROSCADA DIN 2573 PN 6.pdf	Data Sheet	ES	396,31 KB
FT FLANGIA FILETTATA DIN 2573 PN 6.pdf	Data Sheet	IT	395,83 KB
	Data Sheet	DE	396,31 KB
FT FLANGE ROSCADA DIN 2573 PN 6.pdf	Data Sheet	PT	397,09 KB
FT BRIDES TARAUDÉES DIN 2573 PN 6.pdf	Data Sheet	FR	398,40 KB
DS DIN 2573 PN 6 THREADED FLANGE.pdf	Data Sheet	EN	396,31 KB
FT FLANGIA FILETTATA DIN 2576 PN 10/16.pdf	Data Sheet	IT	401,51 KB
FT BRIDES TARAUDÉES DIN 2576 PN 10/16.pdf	Data Sheet	FR	403,41 KB
DS DIN 2576 PN 10/16 THREADED FLANGE.pdf	Data Sheet	EN	401,48 KB
FT FLANGE ROSCADA DIN 2576 PN 10/16.pdf	Data Sheet	PT	402,69 KB
FT BRIDA ROSCADA DIN 2576 PN 10/16.pdf	Data Sheet	ES	401,48 KB
	Data Sheet	DE	401,48 KB
IMAGE HQ CF-FLTHREADEDZINC.jpg	HQ Image		1,11 MB
IMAGE HQ CF-FLTHREADEDZINC8.jpg	HQ Image		3,77 MB
TA nº 14 - ROSCAS DE TUBAGENS - NORMAS EUROPEIAS.pdf	Technical Articles	PT	2,45 MB
TA nº 14 - ROSCAS DE TUBERÍAS - NORMAS EUROPEAS.pdf	Technical Articles	ES	2,46 MB
TA nº 30 - PARAFUSOS EM AÇO - CLASSE DE QUALIDADE - CONCEITO E EXEMPLOS.pdf	Technical Articles	PT	261,75 KB
TA nº 30 - BULLONI IN ACCIAIO - CLASSI DI RESISTENZA - CONCETTO ED ESEMPI.pdf	Technical Articles	IT	260,76 KB
TA Nº 30 - STEEL BOLTS - PROPERTY CLASS - CONCEPT AND EXAMPLES.pdf	Technical Articles	EN	260,39 KB
TA nº 30 - TORNILLOS EN ACERO - CLASE DE CALIDAD - CONCEPTO Y EJEMPLOS.pdf	Technical Articles	ES	260,37 KB
TA nº 30 - VIS EN ACIER – CLASSE DE QUALITE - CONCEPT ET EXEMPLES.pdf	Technical Articles	FR	261,35 KB
