Brass 90 Elbow 92 Brass 90 Elbow 92

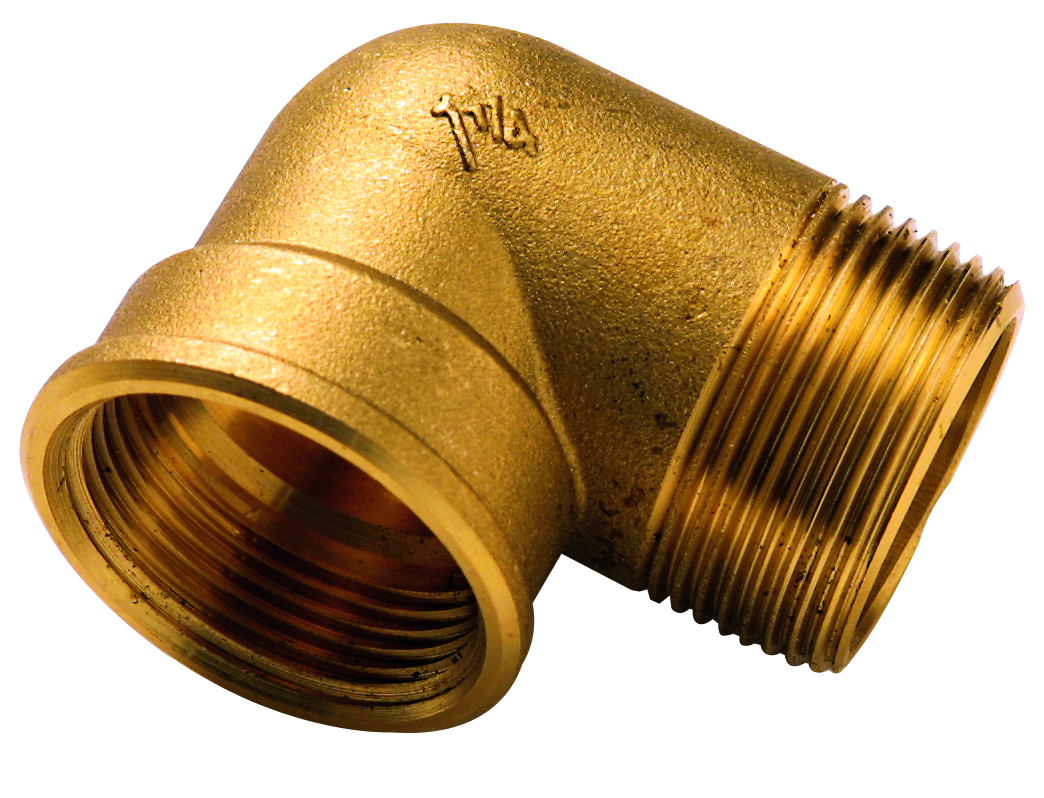

FIG. 92 - 90˚ ELBOW M/F


Contact us

We will contact you as soon as possible

Related products

ATUSA PTFE TAPE ATUSA PTFE TAPE
REF. A90 - ANAEROBIC SEALANT OF PTFE FOR METAL JOINTS REF. A90 - ANAEROBIC SEALANT OF PTFE FOR METAL JOINTS

Specifications


Reference Inch Ø 1 Minimum Quantity Box Quantity Finish
LS092002 3/8" 10 350 Brass
LS092P02 3/8" 1 350 Chrome plated
LS092003 1/2" 10 200 Brass
LS092703 1/2" 10 200 Brass
LS092C03 1/2" 10 200 Nickel plated
LS092P03 1/2" 1 200 Chrome plated
LS092004 3/4" 10 100 Brass
LS092704 3/4" 10 100 Brass
LS092C04 3/4" 10 100 Nickel plated
LS092P04 3/4" 1 100 Chrome plated
LS092005 1" 10 60 Brass
LS092705 1" 10 60 Brass
LS092C05 1" 10 60 Nickel plated
LS092P05 1" 1 60 Chrome plated
LS092006 1 1/4" 5 35 Brass
LS092706 1 1/4" 5 35 Brass
LS092007 1 1/2" 5 25 Brass
LS092707 1 1/2" 5 25 Brass
LS092008 2" 5 25 Brass
LS092708 2" 5 25 Brass
LS09200A 2 1/2" 1 14 Brass
LS09200B 3" 1 10 Brass


Technical documentation

Note: due to the constant development of our products, the supplied data can be altered without prior notice.

Document Type Language File size
FT LATON FIG. 92.pdf Data Sheet ES 552,67 KB
FT OTTONE FIG. 92.pdf Data Sheet IT 551,93 KB
DS FIG. 92 BRASS.pdf Data Sheet EN 552,67 KB
FT LAITON FIG. 92.pdf Data Sheet FR 552,52 KB
FT LATÃO 92.pdf Data Sheet PT 553,62 KB
FT LAITON FIG. 92 NICKELÉE.pdf Data Sheet FR 252,73 KB
FT OTTONE NICHELATI 92.pdf Data Sheet IT 251,70 KB
DS FIG. 92 BRASS NICKEL.pdf Data Sheet EN 252,60 KB
FT LATON FIG. 92 NIQUELADO.pdf Data Sheet ES 252,60 KB
FT LATÃO NIQUELADO 92.pdf Data Sheet PT 253,54 KB
FT LATÃO FIG. 92 ISO 7-1.pdf Data Sheet PT 552,44 KB
FT LAITON FIG. 92 ISO 7-1.pdf Data Sheet FR 551,28 KB
FT OTTONE FIG. 92 ISO 7-1.pdf Data Sheet IT 550,78 KB
DS BRASS FIG. 92 ISO 7-1.pdf Data Sheet EN 551,42 KB
FT LATON FIG. 92 ISO 7-1.pdf Data Sheet ES 551,42 KB
DS FIG. 92 BRASS CHROME.pdf Data Sheet EN 234,84 KB
FT OTTONE CROMATI 92.pdf Data Sheet IT 234,20 KB
FT LAITON FIG. 92 CHROMÉE.pdf Data Sheet FR 234,84 KB
FT LATÃO CROMADO 92.pdf Data Sheet PT 235,81 KB
FT LATON FIG. 92 CROMADO.pdf Data Sheet ES 234,84 KB
IMAGE HQ BF-92-C.jpg HQ Image 1,09 MB
IMAGE HQ BF-92.jpg HQ Image 1,49 MB
IMAGE HQ BF-92-C.jpg HQ Image 773,35 KB
TA nº 14 - ROSCAS DE TUBERÍAS - NORMAS EUROPEAS.pdf Technical Articles ES 2,46 MB
TA nº 14 - ROSCAS DE TUBAGENS - NORMAS EUROPEIAS.pdf Technical Articles PT 2,45 MB
