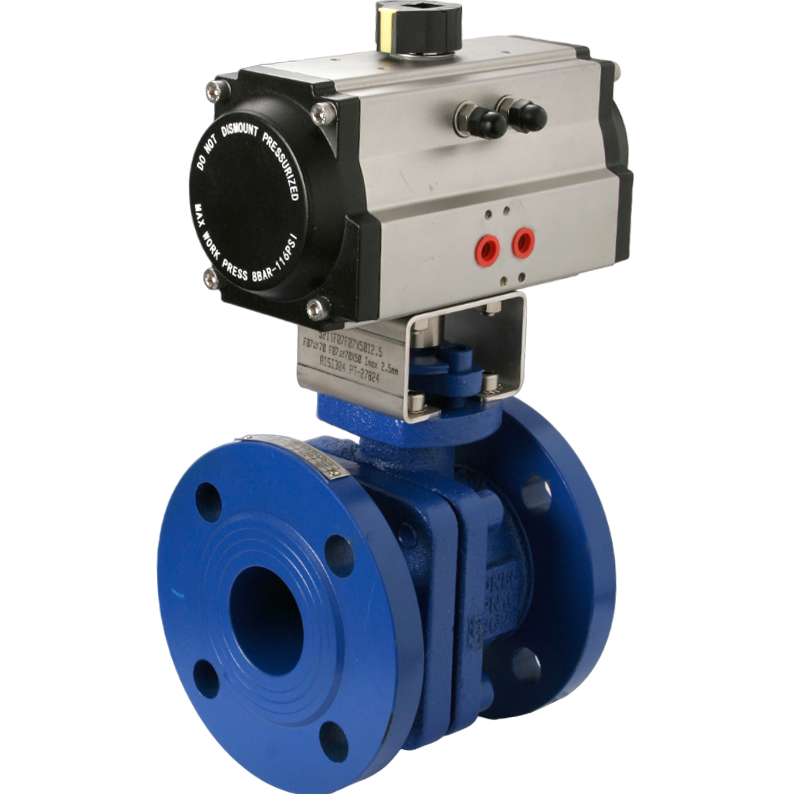

REF. A 570 - BALL ACTUATED VALVE
*S-A = Single Acting / D-A = Double Acting
Contact us
We will contact you as soon as possible
Specifications
| Reference | DN 1 | PN |
|---|---|---|
| AS570015 | 15 | 10/16 |
| AD570015 | 15 | 10/16 |
| AS570020 | 20 | 10/16 |
| AD570020 | 20 | 10/16 |
| AS570025 | 25 | 10/16 |
| AD570025 | 25 | 10/16 |
| AS570032 | 32 | 10/16 |
| AD570032 | 32 | 10/16 |
| AS570040 | 40 | 10/16 |
| AD570040 | 40 | 10/16 |
| AS570050 | 50 | 10/16 |
| AD570050 | 50 | 10/16 |
| AS570065 | 65 | 10/16 |
| AD570065 | 65 | 10/16 |
| AS570080 | 80 | 10/16 |
| AD570080 | 80 | 10/16 |
| AS570100 | 100 | 10/16 |
| AD570100 | 100 | 10/16 |
| AS570125 | 125 | 10/16 |
| AD570125 | 125 | 10/16 |
| AS570150 | 150 | 10/16 |
| AD570150 | 150 | 10/16 |
| AS570200 | 200 | 16 |
| AD570200 | 200 | 16 |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
| Document | Type | Language | File size |
|---|---|---|---|
| Data Sheet | FR | 2,33 MB | |
| DS PNEUMATIC ACTUATORS.pdf | Data Sheet | EN | 2,33 MB |
| FT ATTUATORE PNEUMATICO.pdf | Data Sheet | IT | 2,33 MB |
| FT ACTUADORES NEUMATICOS.pdf | Data Sheet | ES | 2,33 MB |
| FT ATUADORES PNEUMÁTICOS.pdf | Data Sheet | PT | 2,34 MB |
| IMAGE HQ AV A570N.jpg | HQ Image | 215,93 KB |
