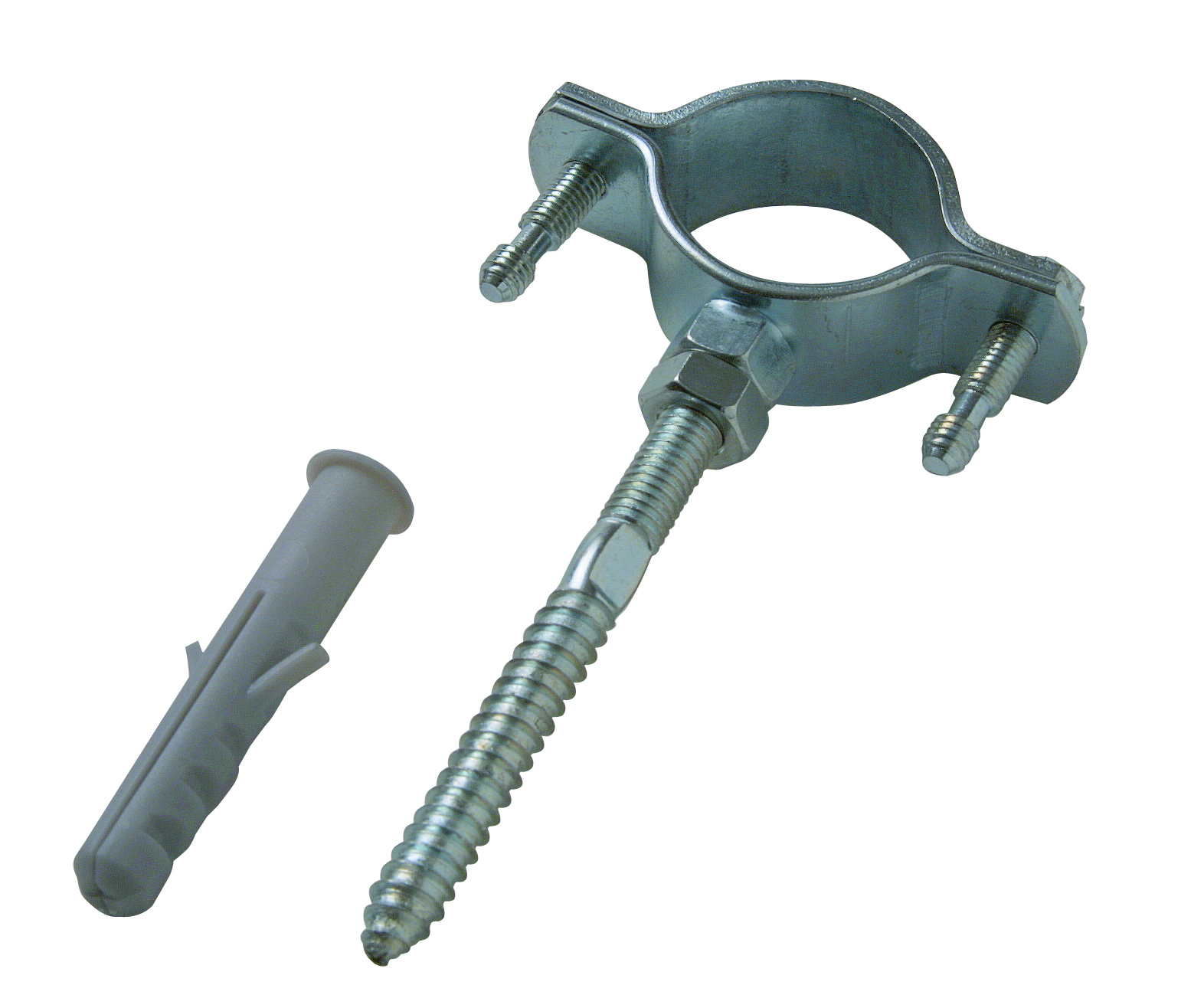

M8/M10 PIPE CLAMP "PREMIUM" WITH PLUG AND SCREW
Safety screw system. Welded nut.
Contact us
We will contact you as soon as possible
Specifications
Reference | Inch Ø 1 | Min. Ø (mm) | Max. Ø (mm) | Length (mm) | Stud | Bolt | Minimum Quantity | Box Quantity |
---|---|---|---|---|---|---|---|---|
RAF35502 | 3/8" | 16 | 18 | 100 | 10 x 50 | M8 | 2 | 150 |
RAF35503 | 1/2" | 20 | 22 | 100 | 10 x 50 | M8 | 2 | 150 |
RAF35504 | 3/4" | 25 | 28 | 100 | 10 x 50 | M8 | 2 | 150 |
RAF35505 | 1" | 31 | 34 | 100 | 10 x 50 | M8 | 2 | 100 |
RAF35506 | 1 1/4" | 39 | 43 | 100 | 10 x 50 | M8 | 2 | 100 |
RAF35507 | 1 1/2" | 45 | 48 | 100 | 10 x 50 | M8 | 2 | 100 |
RAF35508 | 2" | 58 | 61 | 100 | 10 x 50 | M8 | 2 | 100 |
RAF3550A | 2 1/2" | 73 | 76 | 120 | 12 x 60 | M10 | 2 | 80 |
RAF3550B | 3" | 86 | 89 | 120 | 12 x 60 | M10 | 2 | 60 |
RAF3550C | 4" | 110 | 115 | 120 | 12 x 60 | M10 | 2 | 40 |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
