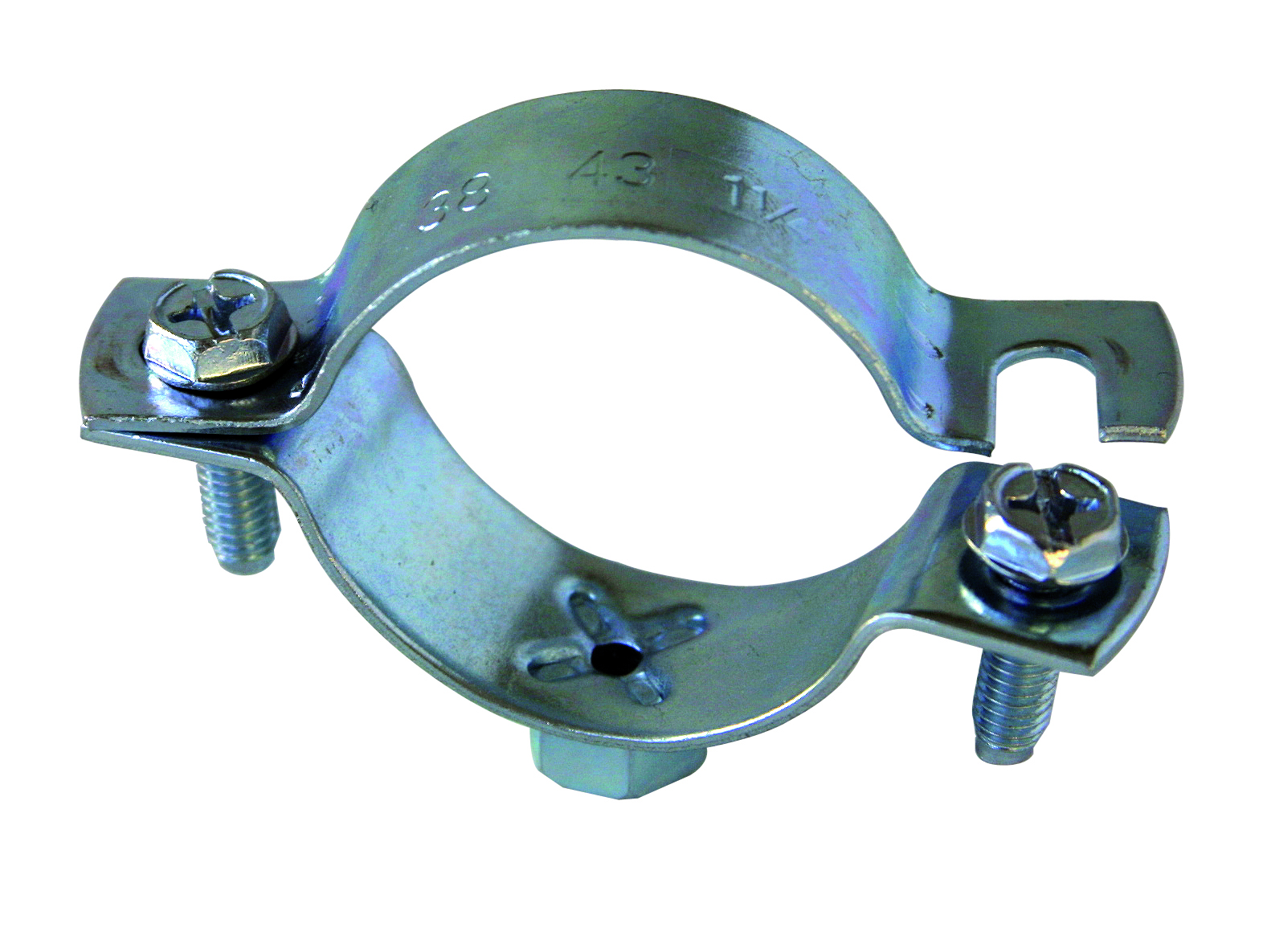

M8 OPEN PIPE CLAMP
Side opening allows a rapid installation. For horizontal, vertical and suspended installations.
Contact us
We will contact you as soon as possible
Specifications
| Reference | Inch Ø 1 | Ø 1 (mm) | Min. Ø (mm) | Max. Ø (mm) | Minimum Quantity | Box Quantity |
|---|---|---|---|---|---|---|
| RFRM0022 | 1/2" | 22 | 20 | 24 | 100 | 500 |
| RFRM0028 | 3/4" | 28 | 25 | 28 | 50 | 250 |
| RFRM0035 | 1" | 35 | 32 | 36 | 50 | 250 |
| RFRM0042 | 1 1/4" | 42 | 40 | 43 | 25 | 250 |
| RFRM0048 | 1 1/2" | 48 | 47 | 50 | 25 | 250 |
| RFRM0054 | - | 54 | 50 | 54 | 25 | 250 |
| RFRM0060 | 2" | 60 | 59 | 63 | 25 | 125 |
| RFRM0075 | 2 1/2" | 75 | 75 | 80 | 20 | 100 |
| RFRM0090 | 3" | 90 | 87 | 92 | 18 | 90 |
| RFRM0110 | - | 110 | 107 | 112 | 15 | 30 |
| RFRM0115 | 4" | 115 | 113 | 118 | 15 | 30 |
| RFRM0125 | - | 125 | 125 | 130 | 15 | 30 |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
| Document | Type | Language | File size |
|---|---|---|---|
| Data Sheet | FR | 246,61 KB | |
| DS M8 OPEN PIPE CLAMP.pdf | Data Sheet | EN | 246,61 KB |
| FT COLLARE METALLICI CON APERTURA M8.pdf | Data Sheet | IT | 245,45 KB |
| FT ABRAZADERA METÁLICA ABIERTA M8.pdf | Data Sheet | ES | 246,61 KB |
| FT ABRAÇADEIRA METÁLICA ABERTA M8.pdf | Data Sheet | PT | 247,35 KB |
| IMAGE HQ FS-RFRM.jpg | HQ Image | 1,54 MB |
