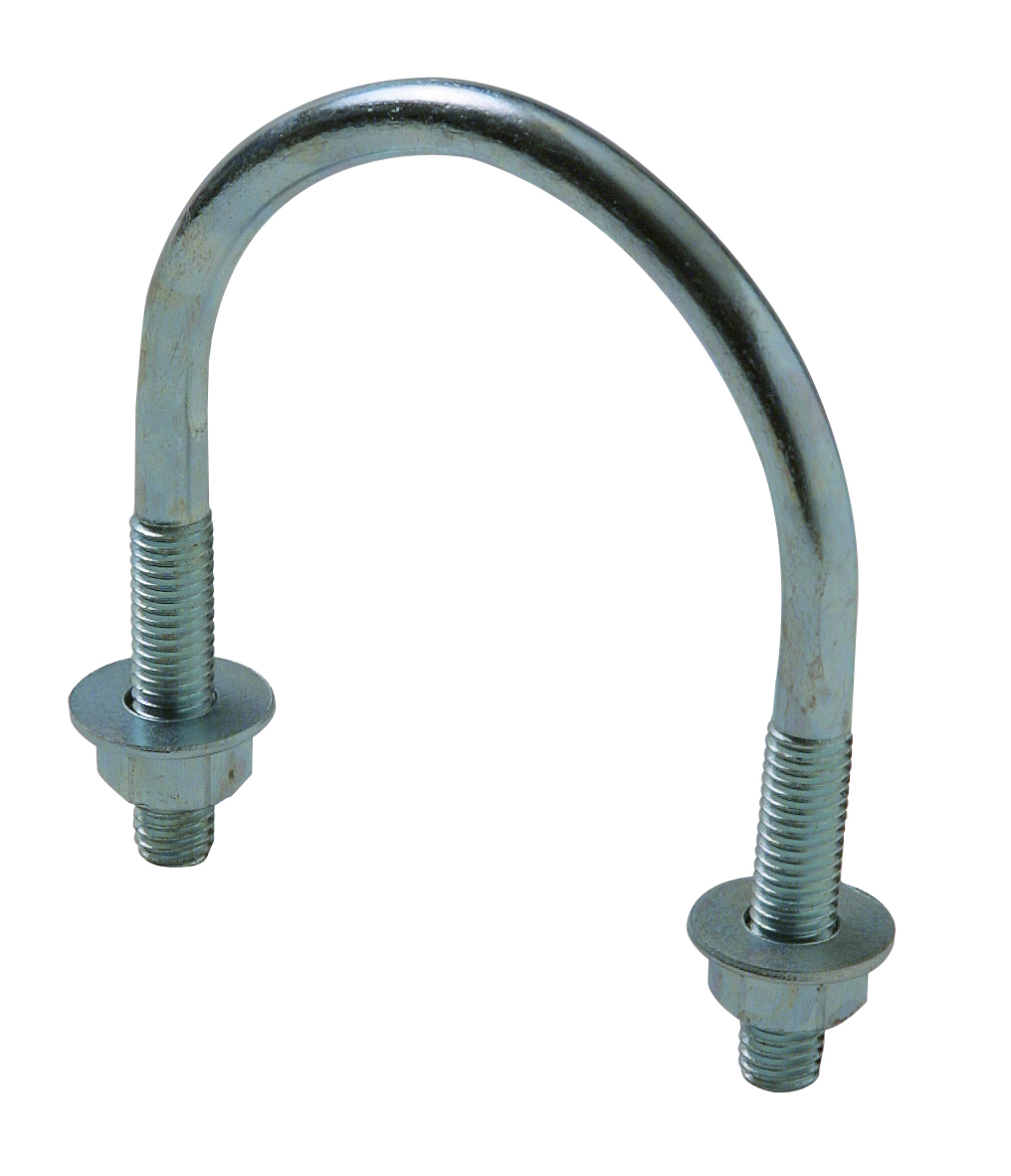

INOX AISI 304 "U" BOLT
Set with 2 DIN 934 nuts and 2 DIN 125 washers. M6 and M8 assembled with washers and nuts.
Contact us
We will contact you as soon as possible
Specifications
| Reference | Inch Ø 1 | Pipe Ø (mm) | Screw | Minimum Quantity | Box Quantity |
|---|---|---|---|---|---|
| RFABI202 | 3/8" | 17.1 | M6 | 10 | 100 |
| RFABI203 | 1/2" | 21.3 | M6 | 10 | 100 |
| RFABI204 | 3/4" | 26.9 | M6 | 10 | 100 |
| RFABI205 | 1" | 33.7 | M6 | 10 | 100 |
| RFABI238 | - | 38.0 | M6 | 10 | 100 |
| RFABI206 | 1 1/4" | 42.2 | M6 | 5 | 100 |
| RFABI207 | 1 1/2" | 48.3 | M8 | 5 | 50 |
| RFABI254 | - | 54.0 | M8 | 5 | 50 |
| RFABI208 | 2" | 60.3 | M8 | 5 | 50 |
| RFABI265 | - | 65.0 | M8 | 5 | 50 |
| RFABI20A | 2 1/2" | 76.1 | M8 | 5 | 25 |
| RFABI284 | - | 84.0 | M8 | 5 | 25 |
| RFABI20B | 3" | 88.9 | M8 | 5 | 25 |
| RFABI210 | - | 104.0 | M10 | 2 | 20 |
| RFABI20D | 4" | 114.4 | M10 | 2 | 20 |
| RFABI213 | - | 129.0 | M10 | 2 | 20 |
| RFABI20E | 5" | 139.7 | M10 | 2 | 20 |
| RFABI215 | - | 154.0 | M10 | 2 | 16 |
| RFABI20F | 6" | 168.3 | M10 | 2 | 16 |
| RFABI220 | - | 204.0 | M10 | 2 | 10 |
| RFABI20H | 8" | 219.1 | M10 | 2 | 10 |
| RFABI225 | - | 254.0 | M10 | 2 | 6 |
| RFABI20N | 10" | 273.0 | M10 | 2 | 6 |
| RFABI230 | - | 304.0 | M10 | 2 | 6 |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
| Document | Type | Language | File size |
|---|---|---|---|
| FT CAVALLOTTO A "U" INOX AISI 304.pdf | Data Sheet | IT | 403,92 KB |
| FT ABARCÓN INOXIDABLE AISI 304.pdf | Data Sheet | ES | 356,48 KB |
| FT ABRAÇADEIRA EM “U” INOX AISI 304.pdf | Data Sheet | PT | 362,20 KB |
| Data Sheet | FR | 356,48 KB | |
| DS “U” BOLT INOX AISI 304.pdf | Data Sheet | EN | 356,48 KB |
