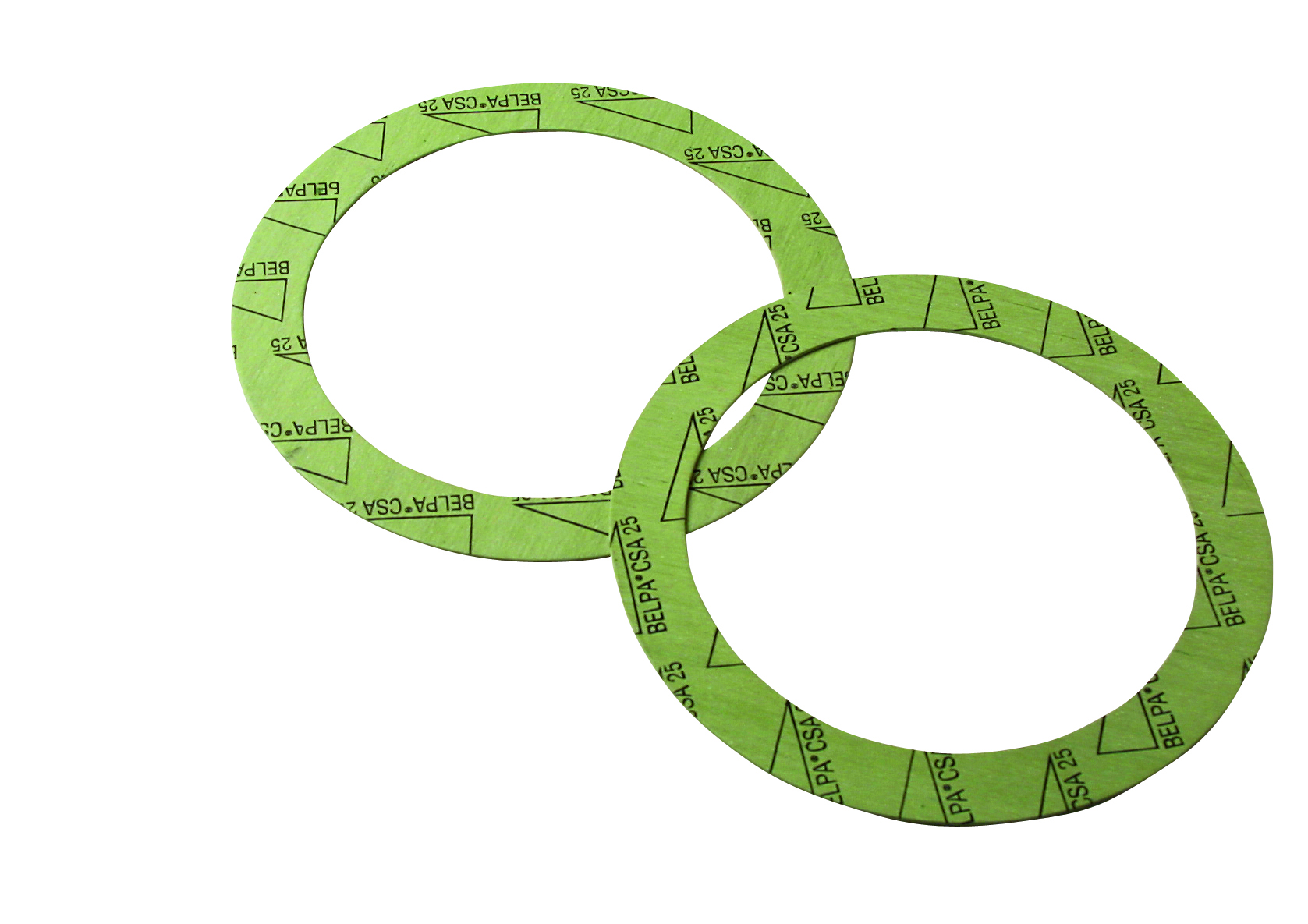

DIN 2690 COMPRESSED CARDBOARD GASKET
Made with organic and mineral fibers WITHOUT ASBESTOS. 1,5 mm. thickness.
Contact us
We will contact you as soon as possible
Specifications
| Reference | DN 1 | Out Ø (mm) | Inside Ø (mm) | Minimum Quantity |
|---|---|---|---|---|
| JBKSA015 | 15 | 50 | 20 | 25 |
| JBKSA020 | 25 | 60 | 25 | 25 |
| JBKSA025 | 32 | 70 | 30 | 25 |
| JBKSA032 | 40 | 82 | 40 | 25 |
| JBKSA040 | 50 | 92 | 50 | 25 |
| JBKSA050 | 65 | 107 | 60 | 25 |
| JBKSA065 | 80 | 127 | 77 | 25 |
| JBKSA080 | 100 | 142 | 90 | 25 |
| JBKSA100 | 125 | 162 | 114 | 25 |
| JBKSA125 | 150 | 192 | 140 | 25 |
| JBKSA150 | 175 | 218 | 168 | 25 |
| JBKSA200 | 200 | 273 | 220 | 25 |
| JBKSA250 | 250 | 328 | 273 | 10 |
| JBKSA300 | 300 | 378 | 325 | 10 |
| JBKSA350 | 350 | 438 | 368 | 10 |
| JBKSA400 | 400 | 490 | 420 | 5 |
| JBKSA500 | 500 | 595 | 520 | 5 |
| JBKSA600 | 600 | 680 | 620 | 1 |
Technical documentation
Note: due to the constant development of our products, the supplied data can be altered without prior notice.
| Document | Type | Language | File size |
|---|---|---|---|
| FT JOINTS FIBRE SANS AMIANTE.pdf | Data Sheet | FR | 338,13 KB |
| FT JUNTA EN CARTÓN COMPRIMIDO.pdf | Data Sheet | ES | 338,13 KB |
| FT JUNTA EM CARTÃO COMPRIMIDO.pdf | Data Sheet | PT | 339,20 KB |
| FT GUARNIZIONI ECOLOGICHE.pdf | Data Sheet | IT | 338,19 KB |
| DS COMPRESSED CARDBOARD GASKETS.pdf | Data Sheet | EN | 338,13 KB |
| IMAGE HQ CF-JBKS.jpg | HQ Image | 1,19 MB |
